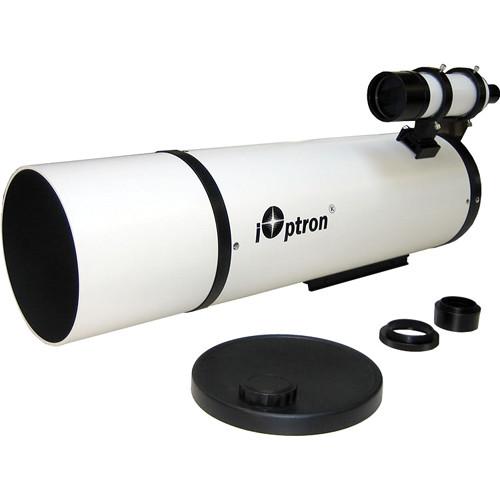

User Manual for iOptron MAK 150mm f 12 Rumak Maksutov-Cassegrain Telescope Click to enlarge the picture
Contents of the user manual for the iOptron MAK 150mm f 12 Rumak
- Product category: Catadioptrics (Cassegrains) iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Catadioptrics (Cassegrains)
|
User manual for the iOptron MAK 150mm f 12 Rumak contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description A variation on the more common catadioptric optical path, the iOptron MAK 150mm f/12 Rumak Maksutov-Cassegrain Telescope employs the same convex meniscus lens corrector plate that defines the Maksutov design and adds a secondary mirror on the inside of the plate. This convex Rumak mirror configuration requires a smaller secondary mirror that limits obstruction and corrects spherical and chromatic aberrations more precisely. The combination of front lens, aluminum and quartz-overcoated primary and secondary mirrors, and fully baffled and coated optics helps to eliminate both off-axis comas and spherical and chromatic aberrations to produce bright and clear high-contrast images with true color rendition, free from comas and distortion across the entire field of view. While using this configuration of the Cassegrain optical path results in a slower focal ratio and narrower field of view versus a similar Schmidt, the optical benefits make this an ideal scope for planetary and double-star observation and astrophotography.The scope is outfitted with a dual-speed internal focusing system that allows for fast and precise focusing. A 2" eyepiece holder is included with a 1.25" adapter so an extensive amount of eyepieces and accessories can be used with this scope. For other gear, iOptron includes both a screw-on accessory holder that accepts Schmidt-Cassegrain accessories and a photo T-ring adapter. The T-ring adapter is used in conjunction with a user-supplied camera-specific T-mount for astrophotography with a DSLR. The optical tube assembly (OTA) is offered here without a mount or tripod for users who have a reliable platform or want to use it as part of a dual-OTA setup for star parties or observation/imaging rigs. It is outfitted with a Vixen-style dovetail plate for use with compatible equatorial or alt-az mounts. This OTA's compact form factor belies its power and resolution as a versatile telescope for near- and deep-space observation and imaging. - Optical Tube Assembly
-
- 150mm (6") aperture
- f/12 focal ratio
- Long 1800mm focal length
- Rumak Maksutov-Cassegrain catadioptric optical path has a front convex meniscus lens that corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
- The Rumak variety employs a specialized secondary mirror on the corrector plate that acts as a field flattener and further corrects aberrations better than the conventional Maksutov configuration
- BK7 optical glass primary mirror
- Aluminum and quartz-overcoated primary and secondary mirrors
- Fully multi-coated optics improve light transmission, color fidelity, and overall image contrast
- Internal baffling absorbs internal light diffraction to improve overall image quality and contrast
- Resolution: 0.77 arcsec
- Internal dual-speed focusing mechanism adjusts primary mirror with fast (coarse) and fine precision focusing
- Standard Schmidt-Cassegrain threaded visual back accepts various mounting accessories such as imaging systems
- Mounting
-
- OTA only: Mount and tripod required
- Vixen-style dovetail plate fits on compatible saddles
- OTA weight: 13.4 pounds
- Included Accessories
- Eyepiece holder:
- 2" holder accepts larger eyepieces and accessories
- 1.25" eyepiece reducer adapter allows the use of smaller eyepieces in the larger holder
T-ring adapter- Screws onto the visual back for direct connection of DSLRs and other imaging systems
- Standard thread size is compatible with a wide array of mounts available by third-party manufacturers
- Camera-specific T-mount required for proper use
Finderscope:- 8x magnification
- Large 50mm aperture helps to find dimmer deep-sky objects
- Center aiming circle helps center objects in field of view
- Includes mounting bracket
Other accessories:- Removable aluminum dew shield
- Front lens cover with off-axis light-limiting cap for viewing the Moon or Sun (with appropriate solar filter installed)
UPC: 813578010438 In the Box iOptron MAK 150mm f/12 Rumak Maksutov-Cassegrain Telescope (OTA Only) Threaded Accessory Holder 2" Eyepiece Holder 2-to-1.25" Reducer Adapter 8x50 Finderscope with Bracket Aluminum Dew Shield Front Lens Cover T-Ring Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron MAK 150mm f 12 Rumak Maksutov-Cassegrain Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron MAK Specs | | | Optical Design | Maksutov Cassegrain | | Aperture | 150 mm / 5.9" | | Focal Length | 1800 mm | | Focal Ratio | f/12 | | Focuser | Dual-Speed Internal | | Eyepiece Barrel Diameter | 1.25", 2" | | Diagonal | None | | Finderscope | Yes | | Mounting System | Vixen Style | | Optical Tube Dimensions | Length: 21.8" / 55.2 cm without Dew Shield
Length: 27.1" / 68.9 cm with Dew Shield | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 32.0 x 14.0 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
