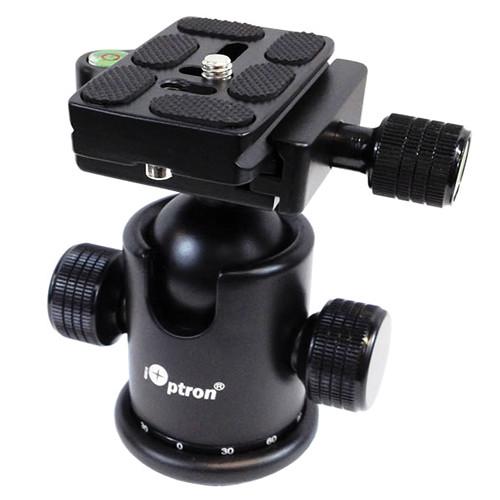

User Manual for iOptron SkyTracker Ball Head v2 Click to enlarge the picture
Contents of the user manual for the iOptron SkyTracker Ball Head v2
- Product category: Astrophotography iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Astrophotography
 |
User manual for the iOptron SkyTracker Ball Head v2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|

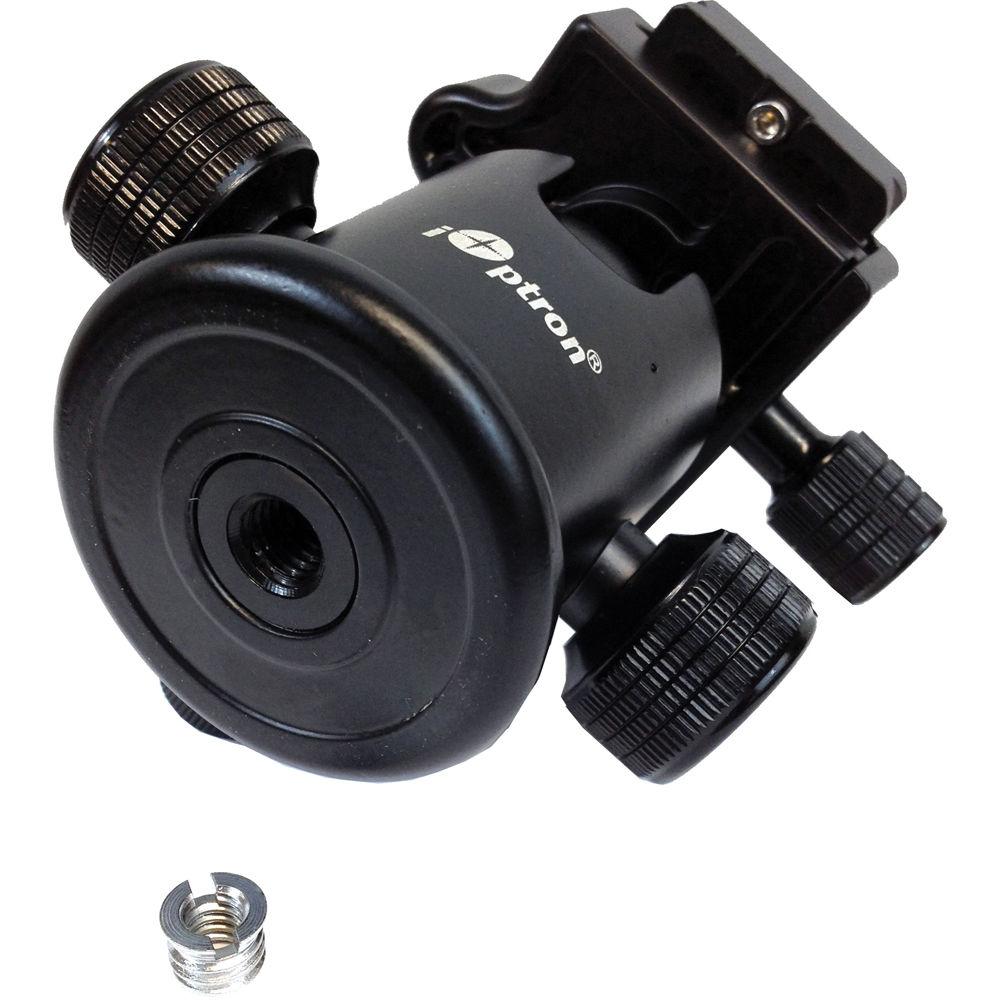

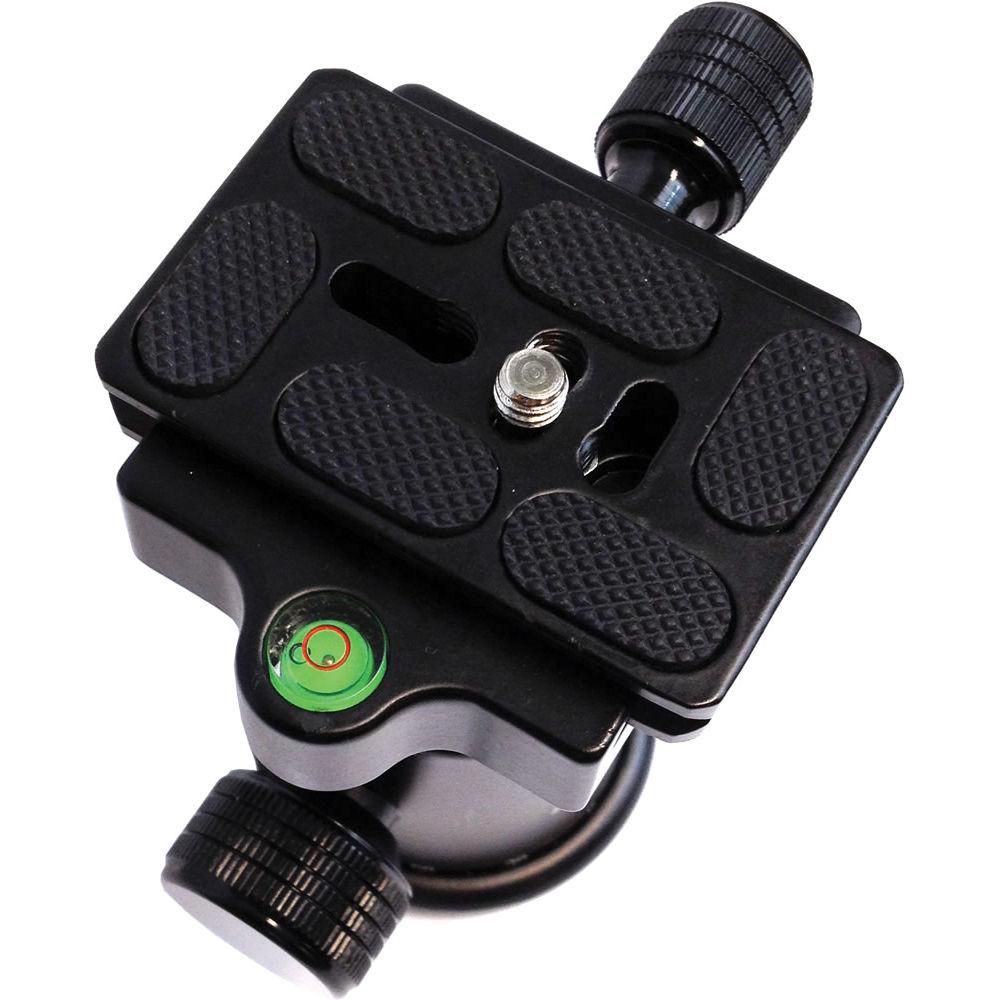

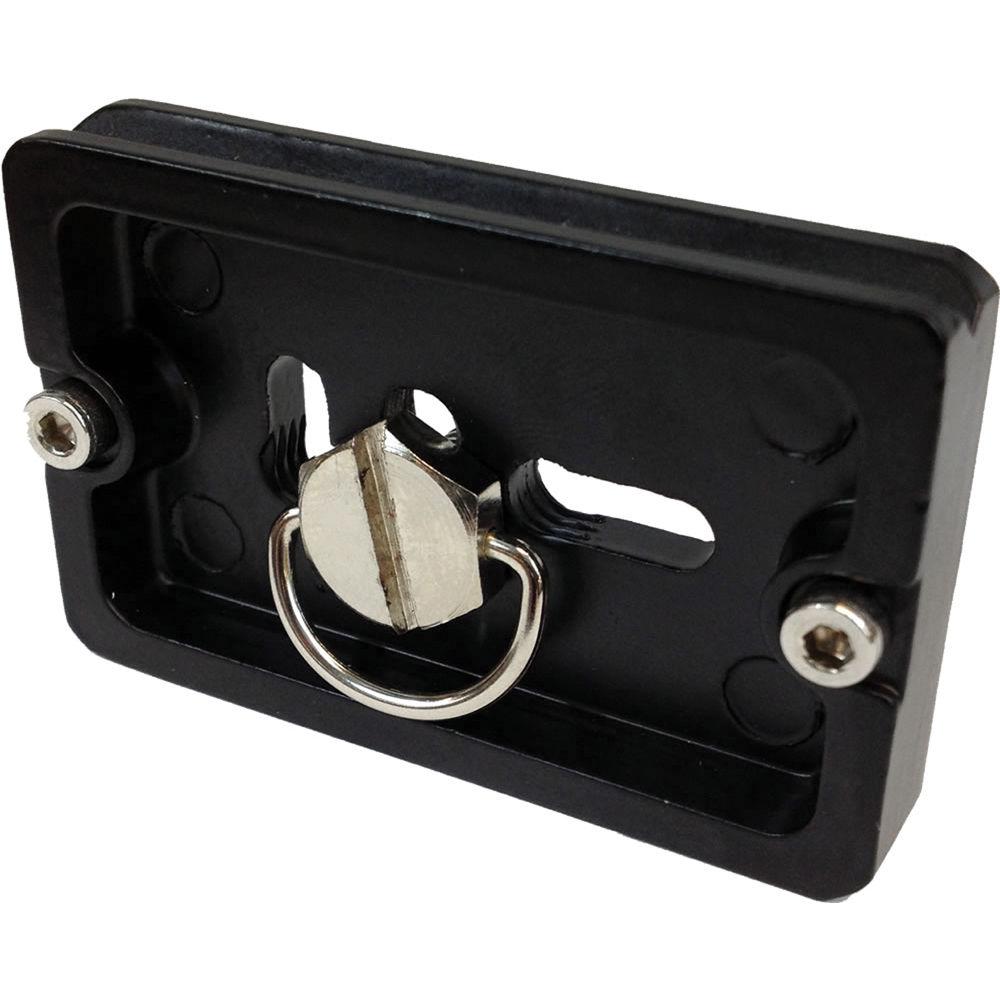

Product description The second version of iOptron's SkyTracker Ball Head is an independently-adjustable pan and tilt mounting platform for the SkyTracker Camera Mount. The included 2.25 x 1.5" quick release plate has a series of non-marking pads to protect the base of the SkyTracker from scratches, and the 1/4"-20 mounting screw has a foldable D-ring to secure the SkyTracker to the QR plate without tools. Redundant plate locks and a 1.5" aluminum ball provide this head with the features needed to help keep your rig from accidentally slipping off the mounting system.The ball-head has a 3/8"-16 tripod mount and comes with a 1/4"-20 adapter plug, so it will work with virtually any photo, video, or astronomical tripod. It has a full 360° continuous horizontal adjustment range with two 0-180° indicator scales, and 0-90° vertical range. To assist with the alignment process, the head has two integrated bubble levels. The ball head is made of a lightweight and durable aluminum alloy with a scratch and corrosion-resistant black anodized finish. While it weighs just 14 oz, it boasts an 20 lb payload capacity. In the Box iOptron SkyTracker Ball Head v2 1/4"-20 Plug Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron SkyTracker Ball Head v2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron 3305A Specs | Payload Capacity | 20 lb (9 kg) | | Mount | 1/4" camera mount
3/8" tripod socket, with 1/4"-20 plug adapter | | Dimensions | Ball head: 3.6 x 3.5" (9.1 x 8.9 cm), including knobs
Quick release plate: 2.25 x 1.5 (5.7 x 3.8 cm)
Mounting base: 2" (5.1 cm) diameter | | Weight | 14 oz (397 g), ball head and QR plate | | | | Package Weight | 0.985 lb | | Box Dimensions (LxWxH) | 4.3 x 3.85 x 3.75" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
