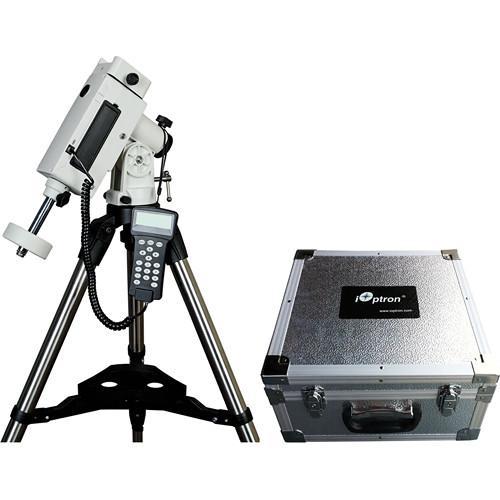

User Manual for iOptron SmartEQ Pro Equatorial Mount Kit with Hard Case Click to enlarge the picture
Contents of the user manual for the iOptron SmartEQ Pro Equatorial Mount Kit
- Product category: Mounts iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Mounts
|
User manual for the iOptron SmartEQ Pro Equatorial Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description The SmartEQ Pro Equatorial Mount Kit with Hard Case from iOptron features the SmartEQ Pro mount, the Go2Nova 8408 computer hand controller, an adjustable stainless steel tripod, a polar aligning scope, and a hard carrying case for the mount. The mount is compatible with any optical tube assembly (OTA) with a Vixen-type dovetail saddle. The mount is powered by eight AA batteries and can run for up to 16 hours of continuous viewing, whether you're stargazing in the backyard or far off the grid.The dual-axis servomotor is controlled by the Go2Nova 8408 hand controller. This system has an internal database of 59,000+ celestial objects, with 60 user-defined objects to program yourself. The hand controller has updatable firmware through the built-in serial port. With nine slew speeds and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy no matter whether you're viewing the fast-moving Moon or much slower deep-space subjects. An adjustable stainless steel tripod is included for the mount and your telescope as well as a hard carrying case designed to hold and protect the Equatorial mount. - Equatorial Mount
-
- Spring-loaded Vixen-style dovetail saddle
- Dual-axis servomotor with optical encoder
- Retractable counterweight shaft stores in mount head when not in use
- Design eliminates the need for a counterweight if the payload is under 4 lb
- 60mm, 122 tooth aluminum right ascension (RA) and declination (dec) worm wheels with brass worm gears
- RA and dec gear switches for balancing the mount with an OTA installed
- AccuAlign polar scope with bright-field illumination for polar alignment
- Integrated ST-4-compatible autoguiding port
- Go2Nova 8408 Hand Controller
-
- 59,000+ object database
- User-friendly menu-driven interface
- 9-speed slew control with quiet mode
- Database includes stars, constellations, and comets
- 60 user-defined objects to easily find your favorites
- 4-line, 21-character, red-light backlit LCD screen
- Works in the Northern and Southern Hemispheres
- Polar, SolarSys, one-star, and multi-star alignment options
- Programmable worm gear backlash adjustment
- Updatable firmware through built-in serial port
- Computer control with planetarium software
In the Box iOptron SmartEQ Pro Equatorial Mount Kit with Hard Case 2.2lb Counterweight AccuAlign Bright-Field Illuminated Polar Scope Stainless Steel Tripod with Accessory Tray Go2Nova 8408 Controller & Cable Hard Case for SmartEQ Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron SmartEQ Pro Equatorial Mount Kit with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron SmartEQ Pro Specs | Mount Type | Equatorial | | Load Capacity | Mount: 11 lb (5 kg), excluding counterweight
Tripod: 30 lb (13.6 kg) | | Motor | Dual-axis servomotor with optical encoder | | GoTo Capability | Yes. Go2Nova hand controller | | Altitude / Latitude Adjustment | Alt: ±10°
Lat: 0 - 65° | | Polar Axis Scope | AccuAlign bright-field illuminated polar scope | | Includes Tripod/Pier | Yes. Stainless steel, two-section adjustable tripod with Vixen-type dovetail saddle | | Height Adjustment Range | 27 - 47" (68.6 - 119.4 cm) | | Power Source | 8 AA Batteries | | Dimensions | Mount: 4 x 9 x 11" (10.2 x 22.9 x 27.9 cm)
Hard case: 15 x 14 x 8" (38.1 x 35.6 x 20.3 cm) | | Weight | Tripod: 5.9 lb (2.7 kg)Mount: 6.2 lb (2.8 kg)Hard Case: 6 lb (2.7 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 29.0 x 14.5 x 8.5" |
