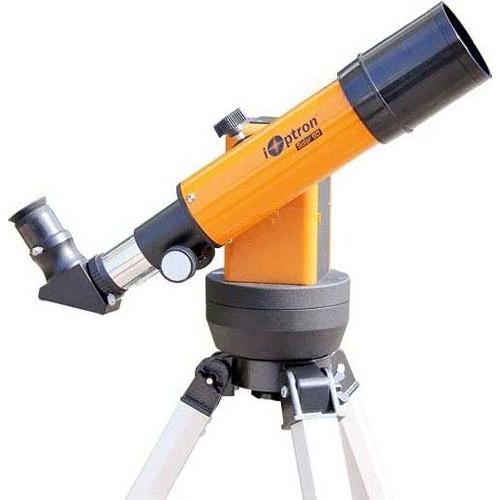

User Manual for iOptron Solar 60 60mm f 6 Achro Refractor GoTo GPS Telescope with Eyepiece Imager Click to enlarge the picture
Contents of the user manual for the iOptron Solar 60 60mm f 6
- Product category: Solar Telescopes iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Solar Telescopes
|
User manual for the iOptron Solar 60 60mm f 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More View the Sun, Moon, planets, and more with iOptron's Solar 60 60mm f/6 Achro Refractor GoTo GPS Telescope. This complete day and nighttime viewing rig comes with a highly-portable achromatic OTA, a removable white-light solar filter, an eyepiece imaging camera to capture or stream views through the scope to a laptop or computer, an adjustable-height aluminum tripod, and a motorized computer-controlled mount with an integrated GPS module that eliminates the need to manually enter the date, time, latitude, or longitude.The Cosmic Orange Cube-G GoTo Alt-Az Mount is a functional, flexible, motorized, and computer-controlled unit that is ideal for most star gazing duties, yet sports a compact design that measures a mere 8x5x5" and weighs just 3 pounds. The dual-axis servomotors are built into a small single unit which is compatible with all telescope OTAs with a Vixen-style dovetail plate up to 7 pounds including accessories. The unique design eliminates "dead spots" enabling you to point your telescope to any point above the horizon without the risk of blocking the telescope tube at certain points of rotation. This mount comes with a 100-240 VAC adapter to power it if you're near civilization, but if you're heading off the grid it can run on eight user-supplied AA batteries.Included with the mount is the GoTo Nova 8405 computer controller. This handheld unit features a 14000+ object database with 256 user-defined objects for your favorite celestial or terrestrial bodies. The easy-to-use menu-driven system displays on a 4-line 21-character back-lit screen. This fully GoTo-capable unit has automatic tracking for fast moving near-space objects such as the sun, moon, planets, and slower moving deep-sky objects like nebulae and galaxies. For set-up or manual use it has five slew speeds starting at 2x and going up to 4°/second. The GoTo Nova controller is powered by the mount to make use easier and simple while reducing the unit's weight. - Solar 60 60mm f/6 Achro Refractor Telescope with Solar Filter (OTA Only) iOptron designed the Solar 60 60mm f/6 Achro Refractor Telescope with a removable front solar filter to allow the scope to be used for viewing the Sun with it on or viewing the night sky with it off. The filter blocks harmful UV and IR radiation while simultaneously reducing virtually all of the intense light across the entire visual spectrum from the sun, allowing for safe solar viewing of surface features such as sunspots and super granules. Optically, the OTA is engineered with a doublet achromatic lens system that is fully multi-coated to produce bright and sharp high-contrast images with accurate color rendition across a distortion-free field of view. The Solar 60 is offered here without a mount or tripod, but a Vixen-style dovetail plate is provided to be compatible with a wide variety of mounts.
- Optical Tube
-
- Use for white-light solar and nighttime viewing
- 60mm aperture
- f/6 focal ratio
- 360mm focal length
- Air-spaced doublet refractor design
- Achromatic lens configuration virtually eliminates chromatic and spherical aberration to produce images with accurate color rendition without distortion across the entire field of view, especially at the edges
- Anti-reflection fully multi-coated optics improve light transmission, image brightness, sharpness, color rendition, and contrast
- Resolution Power: 1.93 arc sec
- 1.25" rack-and-pinion focuser
- Mounting
-
- OTA only, mount and tripod required for proper use
- Vixen-style dovetail plate
- Weight: 3.6-pounds
- Optical Accessories
-
Solar Filter:- Removable filter fits over dew shield and secures with three thumb screws
- Broad-band white-light filter
- Blocks harmful ultraviolet (UV) and infrared (IR) radiation
- Allows a safe amount of light to pass across the entire visible spectrum
- Reveals surface features such as sunspots and granulation
- Solarlite infused polymer for longevity and durability
Eyepiece:- 1.25" diameter barrel accepts most astronomical filters
- 25mm focal length produces 14x magnification
Diagonal:- 1.25" snout fits most drawtubes and accessories
- 1.25" holder allows the use of most eyepieces and accessories
- 90° angle puts head in a comfortable viewing position when OTA is aimed at or near the zenith
UPC: 813578010575 - iE1300 Electronic Eyepiece CCTV Imager The iE1300 Electronic Eyepiece CCTV Imager from iOptron is a 1.3 megapixel camera that attaches to the focusing tube of a telescope. This plug-and-play astrophotography device is pre-loaded with the drivers needed to quickly have you viewing real-time images from your telescope on your computer screen. The iE1300 can be used with almost any telescope that accepts a 1.25" eyepiece. Simply insert the camera into the telescope focusing tube, connect the camera to your PC using the included USB cable, open the image/video capture program of your choice, focus the image using the dial on the camera, then you are ready to view the terrestrial/celestial sights with your computer screen and save photos and videos to your hard drive.
-
- 1.3MP CMOS sensor with 1280x1024 resolution
- 16fps frame rate at full resolution
- Works with any 1.25" focusing tube
- Auto-white balance
- 400-1000nm spectral response
- Compatible with Windows 2000, XP, Vista, Windows 7
UPC: 813578010209 In the Box Bundle Items Solar 60 60mm f/6 Achro Refractor Telescope with Solar Filter (OTA Only) - 60mm White-Light Solar Filter
iE1300 Electronic Eyepiece CCTV Imager
Also Includes - Cube-G GoTo Alt-Az Mount
- GoTo Nova 8405 Hand Controller
- Aluminum Tripod
- AC Adapter with Cord
Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron Solar 60 60mm f 6 Achro Refractor GoTo GPS Telescope with Eyepiece Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Solar 60 60mm f/6 Achro Refractor Telescope with Solar Filter (OTA Only)
| | | Optical Design | Achromatic Doublet Refractor | | Aperture | 60 mm / 2.4" | | Focal Length | 360 mm | | Focal Ratio | f/6 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
