iOptron Solar 80 80mm f 5

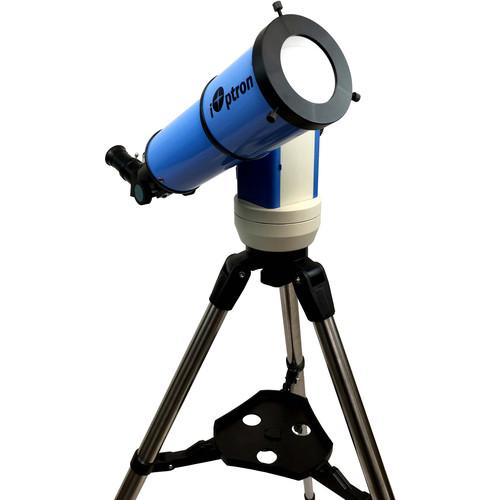

User Manual for iOptron Solar 80 80mm f 5 Achro Refractor GoTo Telescope with Solar Filter

• Product category: Solar Telescopes iOptron
• Brand: iOptron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for iOptron Solar Telescopes

Product description

• Solar 80 80mm f/5 Achro Refractor Telescope with Solar Filter (OTA Only) iOptron adds a removable screw-in solar filter to their fast refractor OTA to produce the Solar 80 80mm f/5 Achro Refractor Telescope, making it ideal for viewing the sun and all phases of a partial eclipse with the filter on, or viewing the night sky with it off.with a removable front solar filter to allow the scope to be usedThe filter blocks harmful UV and IR radiation while simultaneously reducing virtually all of the intense light across the entire visual spectrum from the sun, allowing for safe solar viewing of surface features such as sunspots and super granules. Optically, the OTA is engineered with a doublet achromatic lens system that is fully multi-coated to produce bright and sharp high-contrast images with accurate color rendition across a distortion-free field of view.The Solar 80 is offered here without a mount or tripod, but a Vixen-style dovetail plate is provided to be compatible with a wide variety of mounts and is outfitted with a standard 1/4"-20 mount for use with many photo, video, and field tripods. With the two included eyepieces offering low and moderate magnifications, plus the addition of an erect-image diagonal, this scope can be used as a traditional terrestrial spotting scope with the solar filter removed.
  Optical Tube
  • • Use for white-light solar and nighttime viewing
    • 80mm aperture
    • f/5 focal ratio
    • 400mm focal length
    • Air-spaced doublet refractor design
    • Achromatic lens configuration virtually eliminates chromatic and spherical aberration to produce images with accurate color rendition without distortion across the entire field of view, especially at the edges
    • Anti-reflection fully multi-coated optics improve light transmission, image brightness, sharpness, color rendition, and contrast
    • Resolution: 1.4 arcsec
    • 1.25" rack-and-pinion focuser
  Mounting
  • • OTA only, mount and tripod required for proper use
    • Vixen-style dovetail plate
    • 1/4"-20 standard tripod mount for use with photo/video/field tripods
    • Weight: 3 pounds
  Optical Accessories
  • Solar Filter:
    • Reveals the sun in a pleasing yellow-orange color
    • Removable filter threads onto the dew shield for a secure fit without light leakage
    • Broad-band white-light filter
    • Blocks harmful ultraviolet (UV) and infrared (IR) radiation
    • Allows a safe amount of light to pass across the entire visible spectrum
    • Reveals surface features such as sunspots and granulation
    • Solarlite infused polymer for longevity and durability
    Eyepieces:
    • 1.25" diameter barrel accepts most astronomical filters
    • 10mm focal length produces a moderate 40x power
    • 25mm focal length produces a low 16x magnification
    Diagonal:
    • 1.25" snout fits most drawtubes and accessories
    • 1.25" holder allows the use of most eyepieces and accessories
    • 45° angle puts head in a comfortable viewing position when OTA is aimed at or near the zenith
    • Integrated erecting prism corrects the view to allow the scope's use as a terrestrial spotting scope
• Cube-E GoTo Alt-Az Mount (Astro Blue) iOptron's astro blue Cube-E GoTo Alt-Az Mount is a functional, flexible, motorized, and computer-controlled unit that is ideal for most stargazing duties, yet sports a compact design that measures a mere 8x5x5" and weighs just 3 pounds. The dual-axis servomotors are built into a small single unit that is compatible with all telescope optical tube assemblies (OTAs) with a Vixen-style dovetail plate up to 7 pounds including accessories. The unique design eliminates "dead spots," enabling you to point your telescope to any point above the horizon without the risk of blocking the telescope tube at certain points of rotation. This mount comes with a 110 VAC adapter to power it if you're near civilization, but if you're heading off the grid it can run on eight user-supplied AA batteries. A 1.25" stainless steel tripod is provided so all you need is a compatible OTA to start your observation session.Included with the mount is the GoTo Nova 8405 computer controller. This handheld unit features a 14000+ object database with 256 user-defined objects for your favorite celestial or terrestrial bodies. The easy-to-use menu-driven system displays on a 4-line, 21-character backlit screen. This fully GoTo-capable unit has automatic tracking for fast-moving near-space objects, such as the Moon and planets, and slower moving deep-sky objects like nebulae and galaxies. For setup or manual use it has five slew speeds starting at 2x and going up to 4°/second. The GoTo Nova controller is powered by the mount to make use easier and simple while reducing the unit's weight.
  Mount
  • • 7-pound payload capacity
    • Motorized alt-az mount
    • Compact design
    • Dual-axis DC servomotor
    • Optical encoders monitor motors to improve tracking accuracy
    • Acetal worm wheel, nylon 6 worm gear
    • Four steel ball bearings for smooth, low-vibration tracking
    • Zero "dead spots" that could block an OTA at certain points of rotation
    • Vixen-style dovetail saddle to mount compatible OTAs
    • Runs on included 110 VAC power adapter or eight user-supplied AA batteries
    • Operating temperature: 32-104°F
    • Integrated bubble level
    • Weight: 3.1 pounds
  GoTo Nova Controller
  • • Easy-to-navigate menu-driven interface
    • Easy One-star or Two-star alignment
    • 14000+ object database, plus 256 user-defined objects
    • Watch List: Create virtual custom tour by choosing objects to see and system will automatically GoTo each object in the list after successful alignment
    • Accuracy 1 arcmin
    • Slew speeds: 2x, 8x, 64x, 256x, Max (4°/sec)
    • Average GoTo accuracy: 1 arcmin
    • 4-line, 21-character LCD screen with backlit LED buttons
    • Red LED reading light on back to see eyepieces or filters without affecting night-adjusted vision
    • Database:
    • Sun, Moon, planets
    • Named deep-sky objects
    • Messier catalog
    • Comets and asteroids
    • Named stars, double stars, SAO star catalog
    • Major constellations
    • 256 user-defined objects, including terrestrial locations
  Tripod
  • • Stainless steel legs
    • 1.25" (2.5cm) leg diameter
    • Accessory tray to hold eyepieces, filters, etc.
    • Spiked feet for sure footing on soft ground
    • Maximum height: 37.75" (95.9cm)
    • Weight: 8.9 pounds

• 80mm f/5 Achro Refractor Telescope (OTA Only)

• Screw-On Solar Filter

• Limited 1-Year Warranty

• 1.25" Steel Tripod with Tray

• GoTo Nova 8405 Hand Controller

• Controller Cable

• AC Adapter with Cord

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Solar 80 80mm f/5 Achro Refractor Telescope with Solar Filter (OTA Only)

  Optical Design	Achromatic Doublet Refractor
  Aperture	80 mm / 3.1"
  Focal Length	400 mm
  Focal Ratio	f/5
  Focuser	Rack-and-Pinion
  Eyepiece Barrel Diameter	1.25"
  Diagonal	45 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 78 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
