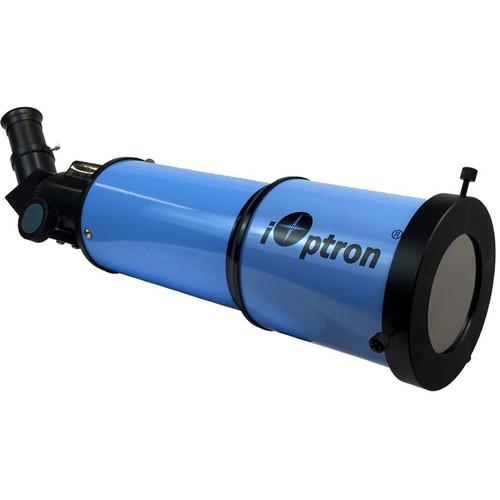

User Manual for iOptron Solar 80 80mm f 5 Achro Refractor Telescope with Solar Filter Click to enlarge the picture
Contents of the user manual for the iOptron Solar 80 80mm f 5
- Product category: Solar Telescopes iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Solar Telescopes
|
User manual for the iOptron Solar 80 80mm f 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description A Buying Guide for Solar and Solar Eclipse Viewing Read More iOptron adds a removable screw-in solar filter to their fast refractor OTA to produce the Solar 80 80mm f/5 Achro Refractor Telescope, making it ideal for viewing the sun and all phases of a partial eclipse with the filter on, or viewing the night sky with it off.with a removable front solar filter to allow the scope to be usedThe filter blocks harmful UV and IR radiation while simultaneously reducing virtually all of the intense light across the entire visual spectrum from the sun, allowing for safe solar viewing of surface features such as sunspots and super granules. Optically, the OTA is engineered with a doublet achromatic lens system that is fully multi-coated to produce bright and sharp high-contrast images with accurate color rendition across a distortion-free field of view.The Solar 80 is offered here without a mount or tripod, but a Vixen-style dovetail plate is provided to be compatible with a wide variety of mounts and is outfitted with a standard 1/4"-20 mount for use with many photo, video, and field tripods. With the two included eyepieces offering low and moderate magnifications, plus the addition of an erect-image diagonal, this scope can be used as a traditional terrestrial spotting scope with the solar filter removed. - Optical Tube
-
- Use for white-light solar and nighttime viewing
- 80mm aperture
- f/5 focal ratio
- 400mm focal length
- Air-spaced doublet refractor design
- Achromatic lens configuration virtually eliminates chromatic and spherical aberration to produce images with accurate color rendition without distortion across the entire field of view, especially at the edges
- Anti-reflection fully multi-coated optics improve light transmission, image brightness, sharpness, color rendition, and contrast
- Resolution: 1.4 arcsec
- 1.25" rack-and-pinion focuser
- Mounting
-
- OTA only, mount and tripod required for proper use
- Vixen-style dovetail plate
- 1/4"-20 standard tripod mount for use with photo/video/field tripods
- Weight: 3 pounds
- Optical Accessories
-
Solar Filter:- Reveals the sun in a pleasing yellow-orange color
- Removable filter threads onto the dew shield for a secure fit without light leakage
- Broad-band white-light filter
- Blocks harmful ultraviolet (UV) and infrared (IR) radiation
- Allows a safe amount of light to pass across the entire visible spectrum
- Reveals surface features such as sunspots and granulation
- Solarlite infused polymer for longevity and durability
Eyepieces:- 1.25" diameter barrel accepts most astronomical filters
- 10mm focal length produces a moderate 40x power
- 25mm focal length produces a low 16x magnification
Diagonal:- 1.25" snout fits most drawtubes and accessories
- 1.25" holder allows the use of most eyepieces and accessories
- 45° angle puts head in a comfortable viewing position when OTA is aimed at or near the zenith
- Integrated erecting prism corrects the view to allow the scope's use as a terrestrial spotting scope
In the Box iOptron Solar 80 80mm f/5 Achro Refractor Telescope with Solar Filter (OTA Only) 80mm f/5 Achro Refractor Telescope (OTA Only) fzqftffsxtyavfrx Screw-On Solar Filter Limited 1-Year Warranty Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 fzqftffsxtyavfrx Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron Solar 80 80mm f 5 Achro Refractor Telescope with Solar Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron Solar 80 Specs | | | Optical Design | Achromatic Doublet Refractor | | Aperture | 80 mm / 3.1" | | Focal Length | 400 mm | | Focal Ratio | f/5 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 45
