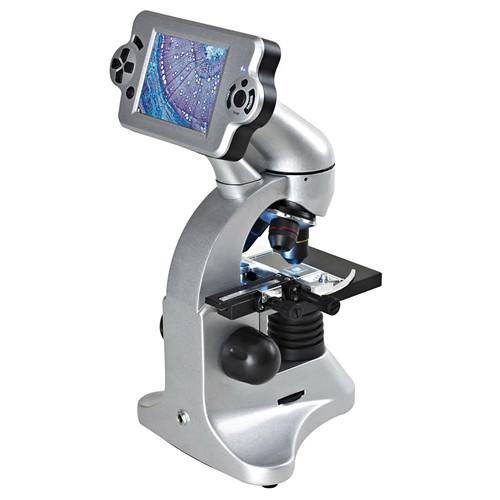

User Manual for iOptron ST-640 LCD Digital Microscope with Digital Camera Click to enlarge the picture
Contents of the user manual for the iOptron ST-640 LCD Digital Microscope with
- Product category: Digital Microscopes iOptron
- Brand: iOptron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iOptron Digital Microscopes
|
User manual for the iOptron ST-640 LCD Digital Microscope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iOptron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iOptron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iOptron product will considerably shorten its lifespan!
|
Product description The ST-640 LCD Digital Microscope with Digital Camera from iOptron offers 45° inclined monocular viewing with a choice of a 10x or 16x eyepiece or with the included LCD screen, which can be easily attached in a place of an eyepiece. When used with the eyepieces, it produces magnifications from 40x to 640x. By placing the 3.5" LCD screen in place of the eyepiece, you can view and images on the 3.5" LCD screen using a built-in digital camera with effective 12.0MP interpolation. The module has a built-in 10x magnification; and with its 8x digital zoom it can boost the maximum total magnification to 3200x. The display also has an integrated SD card slot for saving images and videos to an external SD memory card. You can also use the included USB cord to review, save, and organize captured images on your computer. To provide enough room for maneuvering your specimens, the microscope offers a 3.5 x 3.0" stage with precision X and Y motion controls and a holding bracket. To provide adequate brightness and contrast for your specimens, the illumination system offers top and bottom LED light sources. With the rack-and-pinion focuser that has knobs on both sides of the frame, you will have more freedom when working with your slides. The microscope comes with multiple handy tools for your lab work, samples, blank slides, and several slides. A cover is included to protect it from dust, while a hard carrying case provides added protection in storage or during transportation. - Optical Performance and Illumination
-
- 45° monocular viewing
- 4x, 10x, 40x objective lenses
- 10x, 16x eyepieces
- Glass, anti-reflection fully-coated optics
- Total optical magnification of 640x
- Top and bottom LED illumination with adjustable brightness
- Digital Display and Camera
-
- Detachable 3.5" LCD display module
- LCD screen resolution: 320 x 240
- Integrated digital camera with 12.0MP effective resolution
- Built-in 10x optical magnification
- 8x digital zoom provides a maximum magnification of 3200x
- 50MB internal memory
- SDHC card slot for external memory
- Mini-USB port for viewing, saving, and organizing captured images on your computer
- Stage and Focuser
-
- 3.5 x 3.0" stage
- X-Y motion controls
- Specimen holding bracket
- Dual-knob, ambidextrous rack-and-pinion focuser
UPC: 813578010155 In the Box iOptron ST-640 LCD Digital Microscope with Digital Camera - LCD Screen
- Mini-USB Cable
- AC Adapter
- 10x Eyepiece
- 16x Eyepiece
- Hard Carrying Case
- Microscope Cover
- 2 x AA Batteries
- Sample and Tool Set
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the iOptron ST-640 LCD Digital Microscope with Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiOptron ST-640 Specs | Type | Compound | | Head | Monocular with mountable LCD screen | | Eyepiece | 10x, 16x | | Nosepiece | 3-position turret with click-stop | | Objectives | 4x, 10x, 40x | | Display | 3.5" removable LCD module
320 x 240 resolution | | Memory | 50 MB internal memory on LCD screen
SDHC card slot on screen | | Focuser | Rack-and-pinion | | Specimen Stage | 3.5 x 3.0" / 8.9 x 7.6 cm
X-Y axes adjustment dials | | Light Source | 2 x LEDs | | Light Control | Rheostat dial | | Power | AC adapter powers LCD screen and LED illuminator
2 x AA batteries for LED illuminator only | | Dimensions | 12.5 x 6 x 6" / 31.8 x 15.2 x 15.2 cm (with display screen) | | Weight | 3.9 lb / 1.77 kg (with display screen) | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 16.6 x 11.4 x 7.6" |
