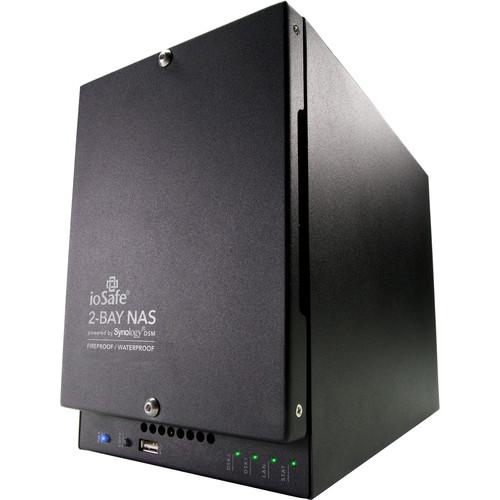

User Manual for IoSafe 218 2-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the IoSafe 218 2-Bay NAS Enclosure
- Product category: NAS Enclosures IoSafe
- Brand: IoSafe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IoSafe NAS Enclosures
|
User manual for the IoSafe 218 2-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IoSafe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IoSafe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IoSafe product will considerably shorten its lifespan!
|
Product description The ioSafe 218 2-Bay NAS Enclosure is designed to deliver strong reliability while protecting data from natural and man-made disasters. It is fireproof up to 1550°F for up to 30 minutes and also protects data from while fully submerged in up to 10' of fresh or salt water for up to 72 hours. Cloud-enabled and powered by Synology's DiskStation Manager operating system, the 218 NAS includes apps for remote access, collaboration, file syncing and sharing, video surveillance, photo management and more.
ioSafe's 218 has two drive bays, each of which natively supports 3.5" SATA hard drives, as well as 2.5" SATA hard drives and SSDs. It is powered by a 1.4 GHz Realtek RTD1296 Quad-Core processor, which will allow you to run multiple functions simultaneously, while 2GB of DDR4 RAM will allow quick access to frequently used files and programs. Also featured are two USB 3.0 Type-A ports and one USB 2.0 Type-A port which allow it to be connected to your Windows or Mac system. Network connectivity is achieved via one Gigabit Ethernet port or a separately wireless dongle for Wi-Fi connectivity.
The 218 runs on the DiskStation Manager (DSM) operating system, which helps simplify managing your NAS, as well as accessing and sharing data. A variety of RAID modes are supported, which help provide users with data redundancy, speed, or a combination of both. Supported RAID modes include RAID 0, 1, Basic, and Synology Hybrid RAID. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
ioSafe has engineered this NAS to be energy efficient. Not only does it use a 92 x 92mm fans to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operational expenses. The 218 operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 60W AC power adapter, an AC power cord, and an RJ45 LAN cable. Protection is provided by a limited 1-year hardware warranty. General Features - Fire Protection
- Purpose-built to keep on-premises data safe during building fires, the 218 NAS protects data from temperatures up to 1550°F for 30 minutes per ASTM E119.
- Water Protection
- Designed to protect data from floods, sprinklers, and fire department's hoses, the 218 keeps data safe during periods of complete submersion in fresh or salt water up to a 10' depth for 72 hours.
- Theft Protection, Tamper Protection
- With an optional floor mount kit, the 218 can be bolted down to protect against theft. Additionally, the kit enables access to the ports and drive bays to be blocked to prevent tampering.
- Security
- Keep data safe and secure with military-grade hardware encryption, built-in vulnerability scanning and remediation, secure data transmission, login protection, and more.
- Backup and Replication
- Use the 218 NAS as a secure backup target or as primary storage with data backed up to another ioSafe or Synology device, an rsync server, Microsoft Azure, S3-compatible storage, or other cloud services.
- File Syncronization
- Easily and securely synchronize data across PCs, Macs, iOS and Android devices, and other NAS with either one-way or two-way syncing that supports file versioning, point-in-time recovery, compression, and encryption.
- File Sharing
- Share files easily, quickly, and securely across multiple platforms with optionally password-protected or time-limited download links and built-in support for FTP, WebDAV, CalDAV, and CardDAV services.
- Video Surveillance
- Protect your home or business. Create an easily managed, reliable, and intuitive monitoring system that delivers secure storage for recordings. With Synology Surveillance Station, you can monitor streams from multiple cameras in real time and manage and analyze recordings. Mobile support enables you to take proactive camera control on the go using iOS or Android devices. With support for more than 6000 IP camera model and integration with with I/O modules and door controllers, the 218 can be used to build a complete security system for your premises.
- Photo Management
- Optimize photo management. Designed to meet the needs of professional photographers, Synology's feature-rich Photo Station enables you manage photo storage, easily share your images, and much more. And with apps for iOS and Android, you can do it all while on the go.
- Multimedia
- Enjoy your media virtually everywhere. Synology DiskStation Manager makes it easy to access and manage your media. Stream to your Apple TV, Google Chromecast, Android Fire, USB or Bluetooth speakers or, when on the go, to your iOS or Android devices.
- Synology Office
- Boost productivity. Synology Office enables you to create documents and spreadsheets, work collaboratively, chat with colleagues, and is compatible with Microsoft Word and Excel.
- Warranty and Data Recovery Service
- Includes a standard 1-year hardware warranty that is extendable to 5-years and optional ioSafe Data Recovery Service that covers the cost of third-party forensic data recovery up to $5000 per TB.
UPC: 816519014397 In the Box IoSafe 218 2-Bay NAS Enclosure RJ45 LAN Cable Accessory Pack AC Power Cord 60W AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IoSafe 218 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIoSafe 218 NAS Specs | | | Number of Bays | 2 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x USB Type-A (USB 2.0 (480 Mb/s)) | | Compatible Drive Interface | SATA | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, JBOD, Synology Hybrid | | Hot-Swap Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Processor | Realtek RTD1296 Quad-Core | | Clock Speed | Base: 1.4GHz | | Total Installed Memory | 2 GB DDR4 | | | | Supported Protocols | AFP
CIFS
CalDAV
FTP
NFS
OpenVPN
SMB
SNMP
SSH
Telnet
WebDAV
iSCSI | | iSCSI LUN | 10 | | iSCSI Target | 10 | | Max Cameras Supported | 20 | | Max Concurrent Connections | 200 | | Max Folders | 256 | | Max Groups | 256 | | Max Sync Tasks | 2 | | Max User Accounts | 2048 | | Max Volume Number | 256 | | | | OS Compatibility | Windows 7
Windows 10
macOS 10.11 or Later | | File System Formats Supported | Internal: EXT4
External: EXT3, EXT4, FAT, HFS+, NTFS, exFAT | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | Max Number of Printers Supported | 2 | | | | Power Consumption | 14.99 W (Typical)
5.78 W (Standby) | | Power Source | AC Adapter | | PSU Wattage | 1 x 60 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | VPN Server Connections | 5 | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -20 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cooling | 1 x 92 mm Fan | | Noise Level | 19.9 dBA | | Built-In Speakers | None | | Audible Alarm | None | | IR Sensor | None | | Status Monitoring | LED Indicator | | Dimensions | 9.1 x 5.9 x 11.5" / 231.1 x 149.9 x 292.1 mm | | Weight | 28.0 lb / 12.7 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 17.0 x 13.5 x 11.5" |
