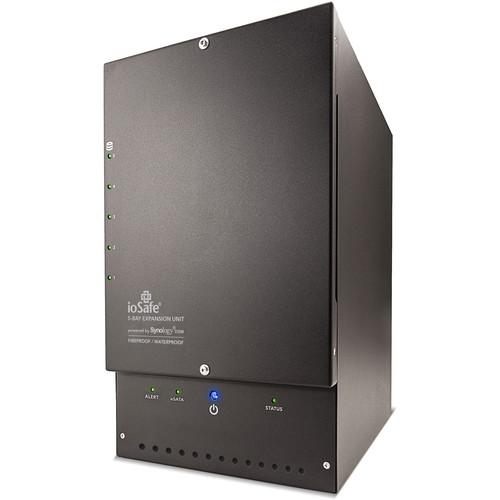

User Manual for IoSafe x517 20TB 5-Bay Expansion Chassis Click to enlarge the picture
Contents of the user manual for the IoSafe x517 20TB 5-Bay Expansion Chassis
- Product category: Network Attached Storage Drives IoSafe
- Brand: IoSafe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IoSafe Network Attached Storage Drives
|
User manual for the IoSafe x517 20TB 5-Bay Expansion Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IoSafe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IoSafe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IoSafe product will considerably shorten its lifespan!
|
Product description Expand the overall storage capacity ioSafe's 1517 5-Bay NAS Array using the ioSafe x517 20TB 5-Bay Expansion Chassis. The x517 provides up to 20TB of additional storage in a 5 x 4TB configuration. Much like the 1517, the x517 is fireproof up to 1550°F for up to 30 minutes and protects data from while fully submerged in up to 10' of fresh or salt water for up to 72 hours. The x517 also supports 2.5" and 3.5" SATA drives, features, hot-swappable drive bays, and connects to your 1517 using an integrated eSATA port. Included is a power cord and protection is provided by a limited 5-year hardware warranty, along with five years of ioSafe's Pro Data Recovery Service (DRS). DRS includes free in-house data recovery, up to $5000 per TB coverage for third-party forensic data recovery services, coverage for servers or other devices attached to the ioSafe x517, and advanced replacement of the ioSafe x517. General Features - For use with ioSafe's 1517 5-Bay NAS
- Includes 20TB of standard storage in a 5 x 4TB configuration
- Fireproof up to 1550° for 30 minutes per ASTM E119 and waterproof up to 10' for 72 hours in fresh or saltwater
- Supports 2.5" and 3.5" SATA drives
In the Box IoSafe x517 20TB 5-Bay Expansion Chassis (5 x 4TB, Standard NAS Drives) Power Cord Limited 5-Year Data Recovery Service Pro Warranty Limited 5-Year Hardware Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IoSafe x517 20TB 5-Bay Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIoSafe x517 Specs | | | Total Raw Capacity | 20 TB | | Included Drives | 5 x 4 TB 3.5" HDD | | Interface | SATA | | Optical Drive | None | | | | Number of Bays | 5 x 2.5"/3.5" | | Connections | 1 x eSATA | | Compatible Drive Interface | SATA | | Form Factor | Desktop | | Hot-Swap Support | Yes | | PCI Expansion | None | | Link Aggregation and Failover Support | No | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 40 to 104°F / 4 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -5 to 140°F / -20 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | BSMI, CE, FCC, RoHS, as per Manufacturer | | | | Status Monitoring | LED Indicator | | Audible Alarm | No | | Cooling | 2 x 80 mm Fans | | Mounting Rails Included | None | | Dimensions | 16.0 x 21.0 x 19.0" / 406.4 x 533.4 x 482.6 mm | | Weight | 64.0 lb / 29.0 kg without Drives
72.0 lb / 32.7 kg with Drives |
