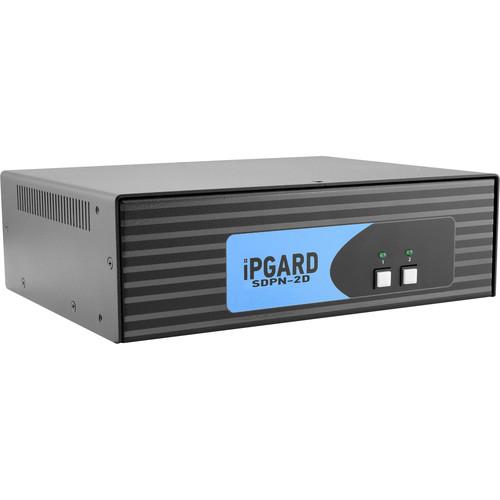

Product description Multi-Monitors: Maximizing Multitasking Read More Designed for use in secure defense and intelligence applications, this SDPN-2D 2-Port Dual-Head 4K DisplayPort KVM Switch from IPGard features mechanical, electrical and optical signal isolation to prevent hacking and data leakage. It controls data relays using inverted signals, shielding connections from outside intrusion by forcing them to work one at a time. Each port uses its own isolated data channel and each unit features a non-reprogrammable ROM to protect the switch's functions. The switch emulates the presence of a keyboard and a mouse for every attached computer through a USB cable, preventing direct connection between the peripherals and the connected computer.
The switch simulates a generic EDID, allowing it to operate most of the connected monitors. Both selected and non-selected computers maintain a constant connection with the unit's video and AUX emulation controllers, restricting discovery of newly connected monitors during switching operations. The unit then prevents unwanted and unsecure data from getting transmitted through DDC lines by means of secure EDID learning and emulation. -
- Supports Windows, Mac, and Linux OS
- Dual-head DP video interface
- Supports 4K Ultra-HD resolution up to 3840 x 2160 at 30 Hz
- Supports balanced speaker output and audio switching

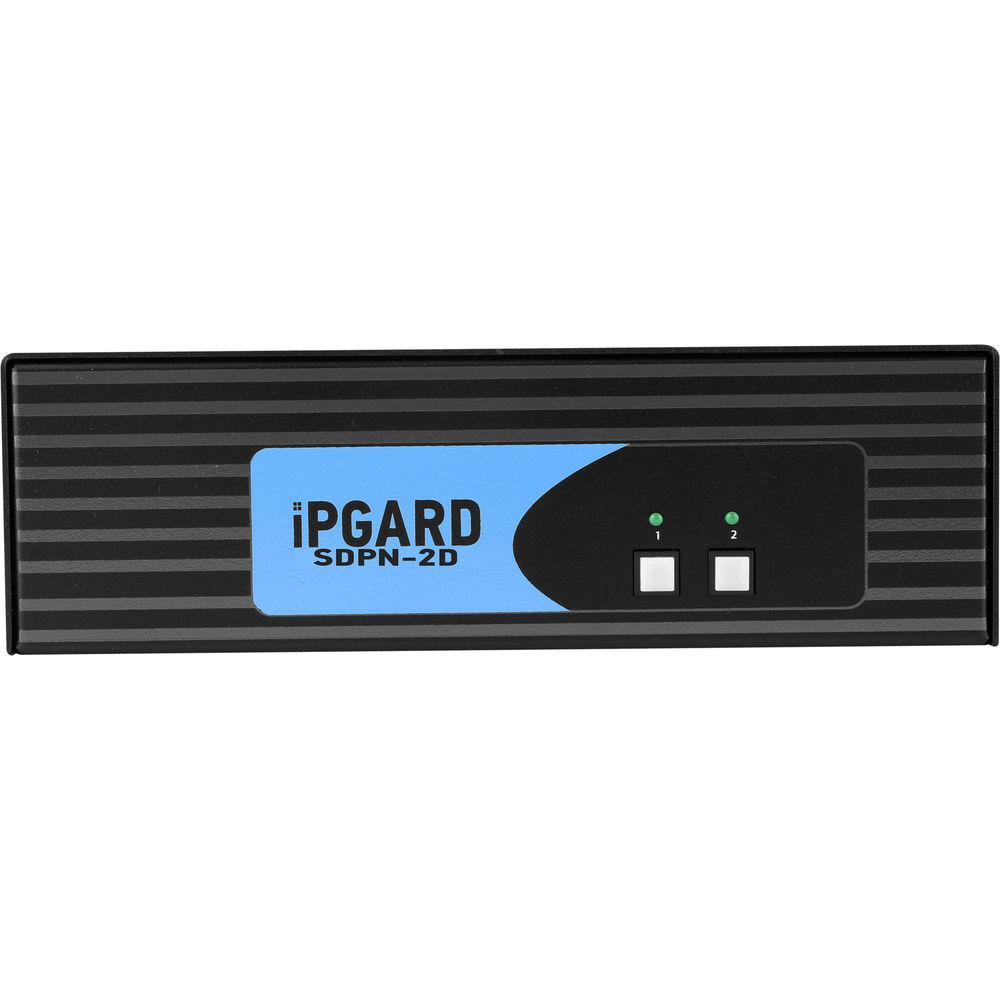

- Front panel tactile buttons with LED indicator
- External power supply (Level VI efficiency)
- Non-reprogrammable ROM
- Active anti-tamper switches
- Long-life internal anti-tampering battery
- External tamper-evident seals
- Keyboard, mouse, and video emulation
- Certified by NIAP (Protection profile for Peripheral Sharing Switch Version 3.0)
- Applications
-
- Government operations
- Defense applications
- Secure control rooms
- Corporate communications
- Server operations
- Educational administrations
- Medical facilities
- Banking network
- Insurance data centers
- Transit management
- Industrial operations
- Intelligence communications
UPC: 686911223471 In the Box IPGard SDPN-2D 2-Port Dual-Head 4K DisplayPort KVM Switch PS12V2A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IPGard SDPN-2D 2-Port Dual-Head 4K DisplayPort KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

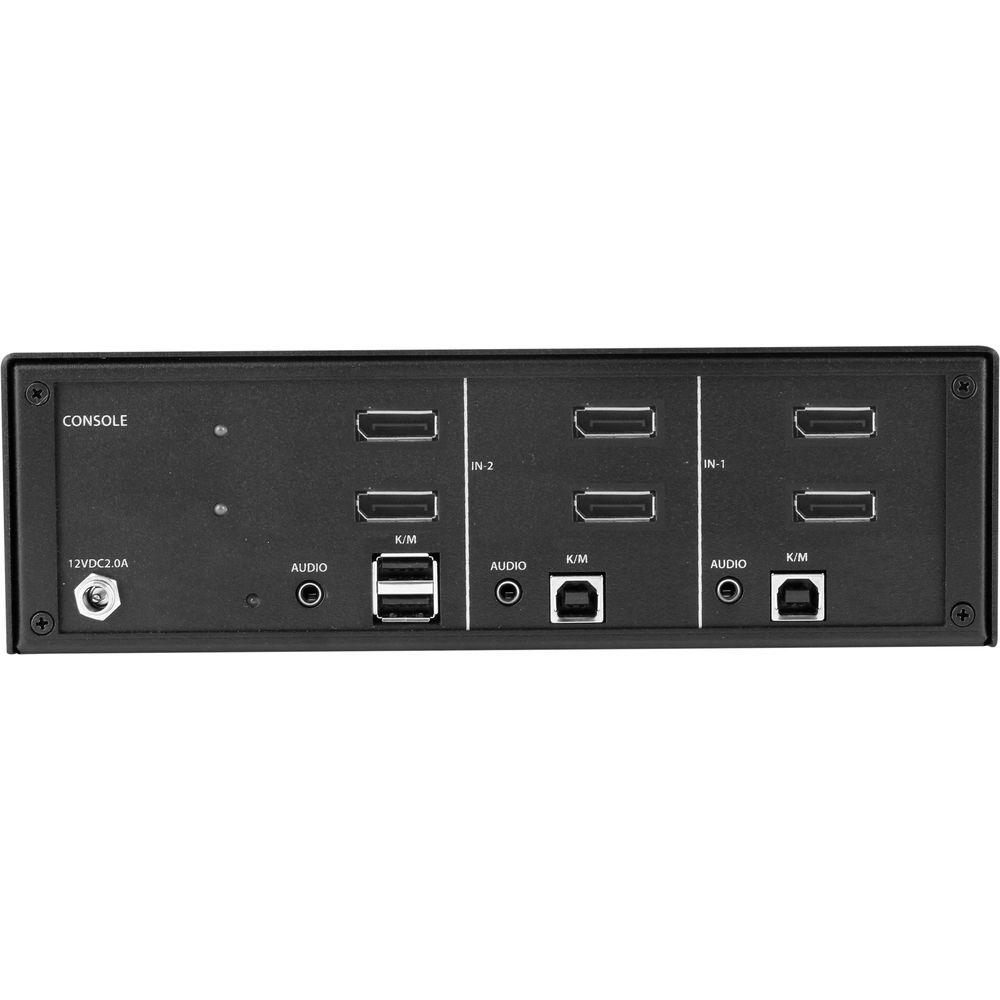

Technical parametersIPGard SDPN-2D Specs | | | Format | DisplayPort | | Input Interface | 4 x DisplayPort | | Output Interface | 2 x DisplayPort | | Resolution | Up to 4K (3840 x 2160 at 30 Hz) | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Cable Length | Input: 20' (6 m)
Output: 20' (6 m) | | | | Input Interface | 2 x USB type B | | Output Interface | 2 x USB 1.1 type A for KM devices | | Emulation | Keyboard and mouse | | | | Audio Input | 2 x 3.5 mm stereo audio | | Audio Output | 1 x 3.5 mm stereo audio | | | | Max Computer Connections | 2 | | Panel | Front panel SELECT buttons | | Power | External 100-240 VAC / 12 VDC 2A at 24 W | | Approvals | NIAP PP 3.0, UL, CE, and RoHS compliant | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | Up to 80% (no condensation) | | Dimensions | 8.8 x 2.6 x 6.7" / 22.4 x 6.6 x 17 cm | | Weight | 3.9 lb / 1.8 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 13.2 x 9.6 x 4.2" |
