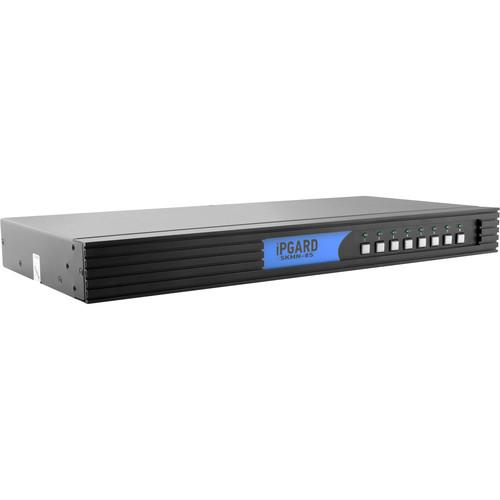

User Manual for IPGard SKMN-8S 8-Port USB KM Switch with Audio Click to enlarge the picture
Contents of the user manual for the IPGard SKMN-8S 8-Port USB KM Switch
- Product category: KVM Switches IPGard
- Brand: IPGard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IPGard KVM Switches
 |
User manual for the IPGard SKMN-8S 8-Port USB KM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IPGard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IPGard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IPGard product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More Designed for use in secure defense and intelligence applications, this SKMN-8S 8-Port USB KM Switch with Audio from IPGard features mechanical, electrical and optical signal isolation to prevent hacking and data leakage. It controls data relays using inverted signals, shielding connections from outside intrusion by forcing them to work one at a time. Each port uses its own isolated data channel and each unit features non-reprogrammable ROM to protect the switch's functions. The switch emulates the presence of a keyboard and a mouse for every attached computer through a USB cable, preventing direct connection between the peripherals and the connected computer. -
- Mouse switching technology
- Supports Windows, Mac and Linux OS
- Supports balanced speaker output and audio switching

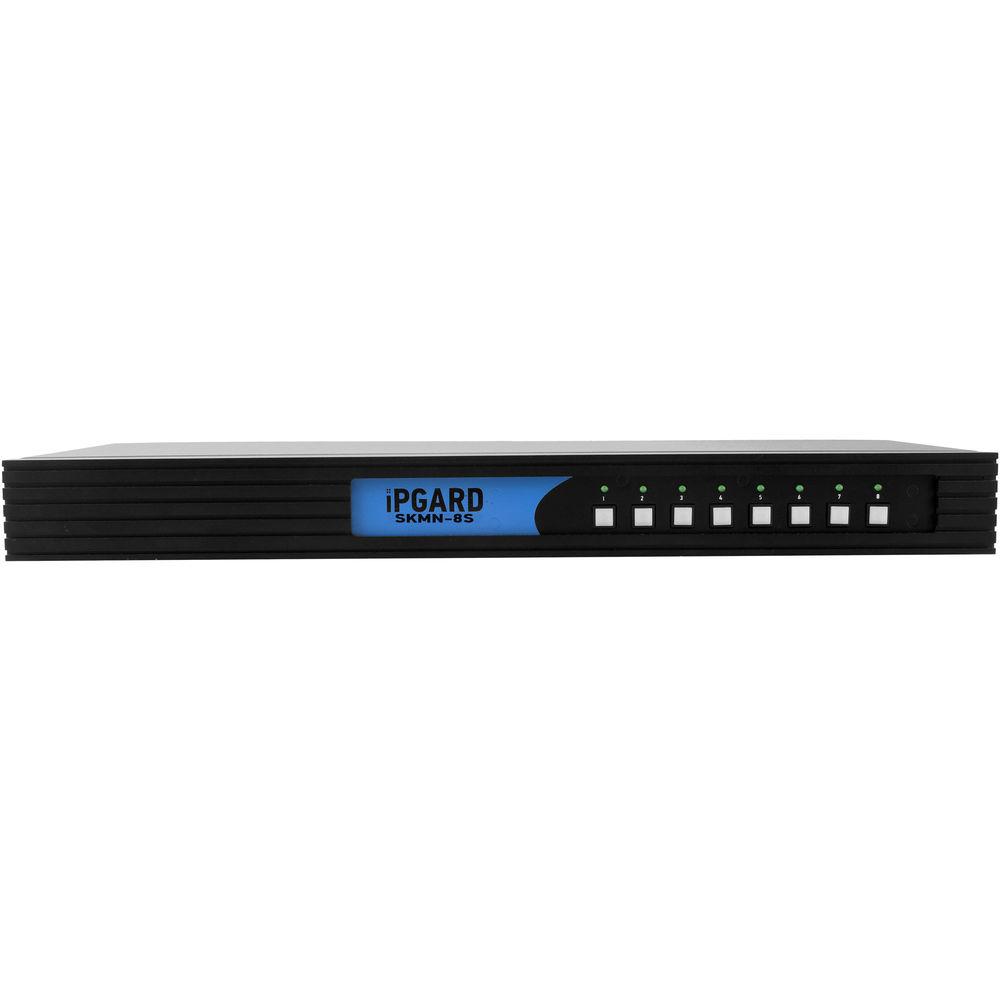

- Front panel tactile buttons with LED indicator
- External power supply (Level VI efficiency)
- Non-reprogrammable ROM
- Active anti-tamper switches
- Long-life internal anti-tampering battery
- External tamper-evident seals
- Keyboard and mouse emulation
- Certified by NIAP (Protection profile for Peripheral Sharing Switch Version 3.0)
- Applications
-
- Government operations
- Defense applications
- Secure control rooms
- Corporate communications
- Server operations
- Educational administrations
- Medical facilities
- Banking network
- Insurance data centers
- Transit management
- Industrial operations
- Intelligence communications
In the Box IPGard SKMN-8S 8-Port USB KM Switch with Audio PS12V2A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IPGard SKMN-8S 8-Port USB KM Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

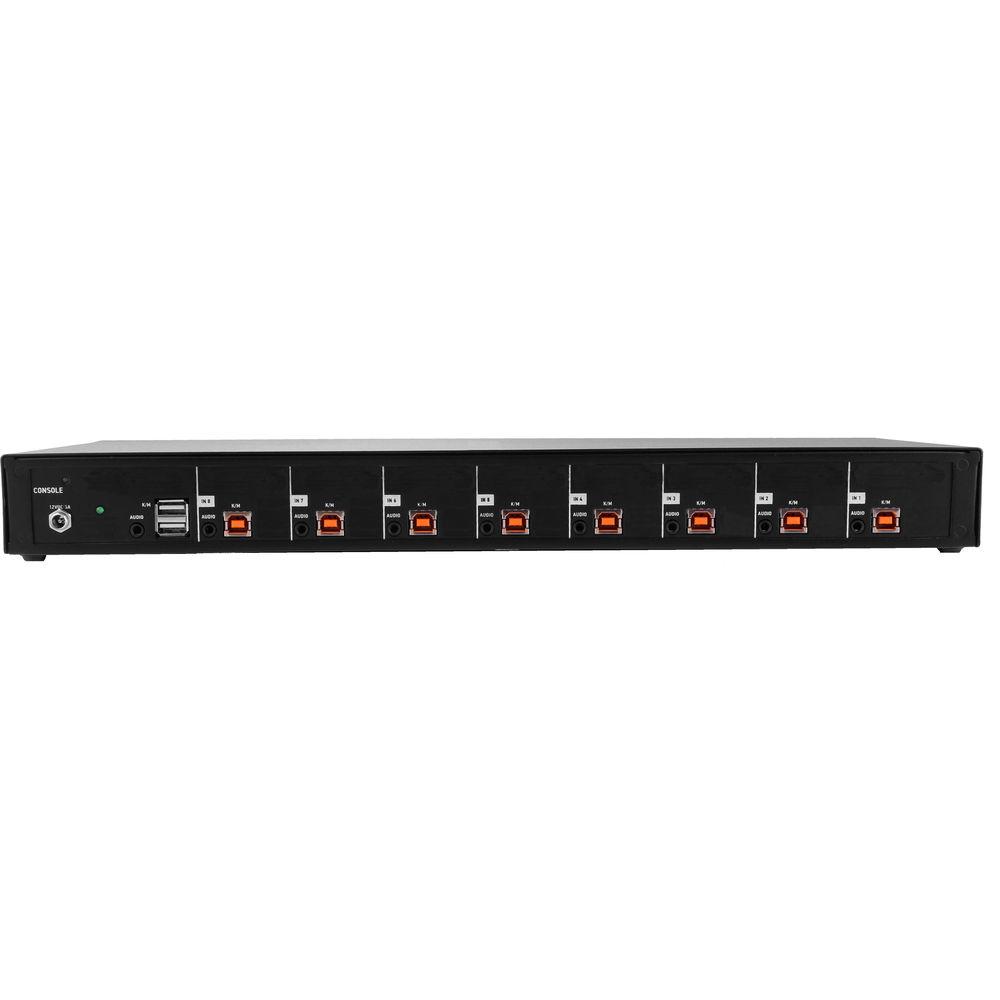

Technical parametersIPGard SKMN-8S Specs | | | Input Interface | 8 x USB type B | | Output Interface | 2 x USB 1.1 type A for KM devices | | Emulation | Keyboard and mouse | | | | Audio Input | 8 x 3.5 mm stereo audio | | Audio Output | 1 x 3.5 mm stereo audio | | | | Max Computer Connections | 8 | | Panel | Front panel SELECT buttons | | Power | External 100 to 240 VAC / 12 VDC 2A at 36 W | | Approvals | NIAP PP 3.0, UL, CE, and RoHS compliant | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | Up to 80% (no condensation) | | Dimensions | 17 x 1.8 x 8.7" / 43.2 x 4.6 x 22 cm | | Weight | 6.3 lb / 2.9 kg |
