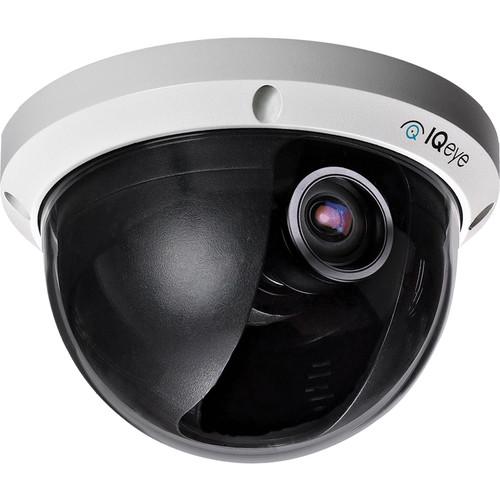

User Manual for IQinVision Alliance-pro IQA32WIA3 Day Night Vandal Resistant IP Dome Camera with 3 to 8mm Varifocal Lens and PoE Support Click to enlarge the picture
Contents of the user manual for the IQinVision Alliance-pro IQA32WIA3 Day Night Vandal
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision Alliance-pro IQA32WIA3 Day Night Vandal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The Alliance-pro IQA32WIA3 Day/Night Vandal Resistant IP Dome Camera from IQinVision features a 1/3" CMOS sensor and 3 to 8mm varifocal lens. With support for resolution of up to 1920 x 1080, this camera provides multiple, individually configured H.264, and simultaneous MJPEG streams. The Alliance-pro can be installed virtually anywhere using Power-over-Ethernet or AC or DC power and supports a movable IR filter for true day and night operation as well as controls for optimizing video for any lighting condition. It also supports two-way audio which allows for interactive communication between the camera and the monitoring site. The external on camera micro SDHC memory expansion port in combination with IQrecorder, or Direct-To-Storage recording, makes Alliance-pro a flexible stand-alone platform which is suitable for motion based recording or remote monitoring. This vandal proof camera is housed in an IP66 and IK10 rated housing. Thanks to the remote motorized zoom and focus, which eliminates the need for manual focus adjustments, a hinged pivoting shroud, and 3-axis gimbal, this camera enables easy and quick installation. -
- Resolutions up to 1920 x 1080
- 30 fps @ 1080p
- H.264 main profile + MJPEG compression
- Remote zoom and focus for easy installation
- Continuous analog video output
- Two-way audio
- True day/night movable IR filter
- Compatible with exacqVision Edge and Agent Vi
- On-camera Storage
- IP66 outdoor enclosure
In the Box IQinVision Alliance-pro IQA32WIA3 Day/Night Vandal Resistant IP Dome Camera with 3 to 8mm Varifocal Lens and PoE Support Mounting Hardware Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision Alliance-pro IQA32WIA3 Day Night Vandal Resistant IP Dome Camera with 3 to 8mm Varifocal Lens and PoE Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQA32WIA3 Specs | | | Compression | H.264 and MJPEG | | H.264 Profile | Main | | Sensor | 1/3" CMOS | | Lens | 1/2.7", 3 to 8 mm, f/1.5; auto-focus | | Maximum Resolution | HD 1080p (1920 x 1080) | | Maximum Frame Rate | 30 fps | | Minimum Illumination | Color: 0.2 lux, B/W: <0.05 lux | | JPEG Compression Quality Settings | User configurable | | Shutter Speed | Auto / Programmable / Fixed | | Image Settings | Saturation, contrast, brightness, sharpness, Lightgrabber II, IQnightlight | | Exposure | User configurable | | White Balance | Auto / Programmable | | Backlight Compensation | Auto | | IR Wavelength | 800 to 940 nm | | | | Virtual Camera | User configurable windows | | Motion Detection | User configurable windows | | Recording | Time Lapse and Event Based: User configurable | | Flip and Rotate | 180, horizontal, vertical | | Zoom/Focus | Auto focus varifocal lenses with remote zoom & one-touch focus | | Analog Video | Service port & continuous (NTSC / PAL) | | Audio Support | Two-way G.711 PCM 8 kHz | | Analytics | Analytics Ready | | Camera Apps | IQaccess, IQanalytics, IQfinder, IQevent, and IQmanager | | System Integration | exacqVision Edge, Agent Vi (software license required) | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, FTP, SMTP, Telnet, CIFS | | Password Protection | Secure multi-level | | | | Network Interface | RJ45 10Base-T/100Base-TX | | I/O | Physical: 1 x input, 1 x output
Audio: Mic in/line in, line out | | Storage | On Camera Storage: microSD Class 10 UHS (card not included) | | Weather / Vandal Resistance | IP66/IK10 | | | | Approvals | FCC, CE, UL, cUL, RoHS 2 | | AC | 50/60 Hz selectable | | Input Power | Power over Ethernet 802.3af Class 1; 24 VAC, 12 to 24 VDC | | Power Consumption | <3.4 W (typical) | | Temperature Range | -4 to 122˚F (-20 to 50˚C) | | Dimensions | 5.80 x 3.88" (14.62 x 9.86 cm) | | Weight | 23.3 oz (746.0 g) |
