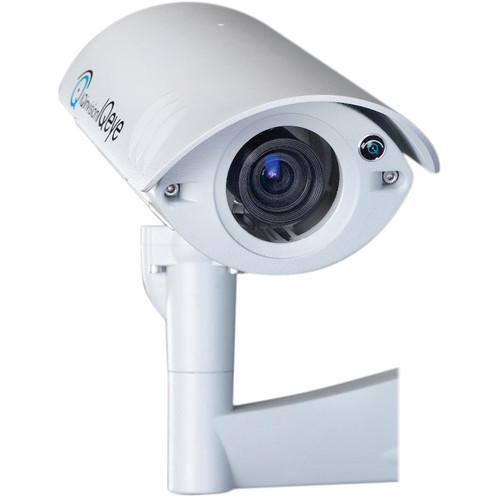

User Manual for IQinVision IQ862WE-W2 Sentinel H.264 WDR 1080p Outdoor Camera with Remote Focus Click to enlarge the picture
Contents of the user manual for the IQinVision IQ862WE-W2 Sentinel H.264 WDR 1080p
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQ862WE-W2 Sentinel H.264 WDR 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQinVision IQ862WE-W2 Sentinel H.264 WDR 1080p Outdoor Camera with Remote Focus is designed to be an all-in-one 1080p color camera with remote back focus control to reduce installation time, and is designed for indoor and outdoor applications, providing multiple H.264 (MPEG4, Part 10) and simultaneous MJPEG streams that can be individually configured.
The IQ862WE-W2 was designed to provide 30 fps at maximum resolution, and conforms to the ONVIF and PSIA standards. The camera uses a wide dynamic range (WDR) sensor for enhanced image dynamic range and DTS (Direct-To-Storage) recording. The camera has day and night functionality with high sensitivity for use in low light applications, and has a varifocal IR corrected lens.
The camera has an integrated camera and lens module, a wall, ceiling, and parapet arm, and a power / data back box. The camera is constructed from cast aluminum with a polycarbonate lens cover, and is designed to protect against water and dust to IP66 / NEMA4 standards. Requiring low power, the camera is PoE (IEEE 802.3af) compliant, and can be powered from 12-24 VDC or 24 VAC. - All-in-one day/night color camera with a progressive scan 1/3" CMOS sensor with a dichroic infrared mirror capable of producing 1080p resolution
- Dual-codec functionality for simultaneous H.264 and MJPEG video streaming
- Uses Main Profile (MP) for mainstream consumer broadcast and storage applications
- MJPEG encoded video stream supports full real time video frame rate of 30 fps at a maximum resolution of 1920 x 1080
- Has three video streams that can be individually configured for H.264 and MJPEG, and for different resolutions, from the webpage and the API interface
- Bit rate control (up to 11 Mbps) over the individual H.264 image stream that can be configured from the webpage and API interface
- Quality control over the MJPEG image stream with four selectable quality values and 86 selectable compression values from the webpage interface
- Remote back focus (RBF) functionality through a one-touch-focus button through the user interface, simplifying the focusing process during the installation
- Configurable virtual camera window that can be any portion of the field-of-view, acting like an independent camera with configurable resolution and frame rate
- Conforms to the ONVIF and PSIA standards
- Power over Ethernet (IEEE 802.3af Class 2) compliant for indoor/outdoor applications
- Integrated megapixel IR corrected varifocal lens
- Integrated pivoting arm to allow the product to be wall, ceiling, or parapet mounted, without requiring additional accessories
- 360˚ adjustable in the pan direction and 180˚ in the tilt direction
- Waterproof and dust proof up to IP66 / NEMA4 standards
- Automated IR filter that will automatically switch from color to monochrome enhancing low lighting, or in applications where IR illumination is utilized
- Lightgrabber II enhances camera sensitivity by increasing the integration time of the CMOS sensor
- Automatic white balance, automatic exposure, gain control, electronic shutter, and backlight compensation
- User configurable saturation, contrast, brightness, and sharpness controls from the web-interface
- Fully configurable motion detection areas with adjustments for sensitivity and size to detect motion in various lighting conditions
- User configurable access hours to limit access to the camera video streams based on weekdays and/or weekends
- Video flip and rotate function to allow the image to be digitally rotated 180°, or to flip the image horizontally or vertically
- Supports DTS (Direct-To-Storage) for recording of time lapse and event recording using network attached storage
- Event handler allows the camera to send an image or video clip to on-camera storage, FTP site, email address, and/or network attached storage when receiving an internally or externally generated event
- Supports IQapps - software that enables multiple users to receive alerts via a pop-up window when the camera receives a hardware or software trigger
In the Box IQinVision IQ862WE-W2 Sentinel H.264 WDR 1080p Outdoor Camera with Remote Focus Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQ862WE-W2 Sentinel H.264 WDR 1080p Outdoor Camera with Remote Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQ862WE-W2 Specs | Lens Size | 1.8-3mm | | Camera Type | Standard outdoor | | MegaPixels | 2.0 | | Resolution | 1920 x 1080 | | Video Max Frame Rate | 30 | | Day & Night | Yes | | Sensitivity | Color: 0.02 lux
B&W: <0.05 lux | | IR Range | 800 - 940 mm | | Dynamic Range | 100 dB | | Shutter Speed | 1/20,000 | | Lens Type | Varifocal 1/3" CS | | Video Compression | H.264 and MJPEG | | Motion Detection | Multi-zone | | Alarm I/O | 1/1 | | Backlight Compensation | Auto | | Cropping | Digital | | White Balance | Auto | | Analytics | Ready | | Compliance | PSIA and ONVIF | | Operating Temperature | -22 - 122°F (-30 - 50°C) | | Power Consumption | 8.0 W | | Power Requirement | PoE (Class 3), Aux 24 VAC and Aux 12-24 VDC | | Dimensions (H x W x D) | 9.6 x 4.9 x 15.4" (243.2 x 124.0 x 390.1 mm) | | Weight | 6.2 lbs (2.8 kg) |
