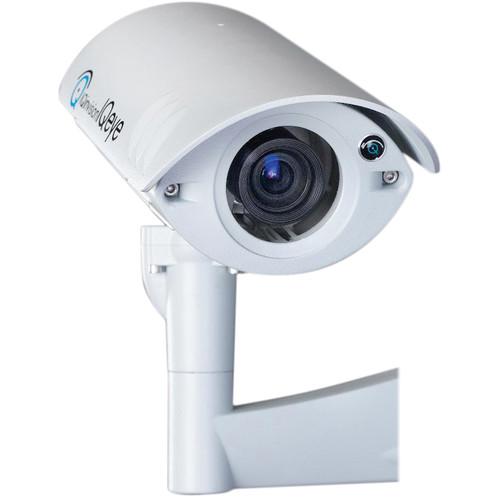

User Manual for IQinVision IQ863WE-V17 IQeye Sentinel 3.1MP Day & Night WDR Outdoor IP Camera with Heater and 3.3 to 10mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQ863WE-V17 IQeye Sentinel 3.1MP Day
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQ863WE-V17 IQeye Sentinel 3.1MP Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQ863WE-V17 IQeye Sentinel 3.1MP Day & Night WDR Outdoor IP Camera with Heater from IQinVision is a full-featured, multi-megapixel H.264 main profile all-weather camera. This camera supports 3.1MP (2048 x 1536) resolution and provides multiple, individually configured H.264 and simultaneous MJPEG streams. The camera's innovative features reduce installation cost and time. The remote back focus reduces installation time using the One-Touch-Focus feature for sharp images and allows fine focus adjustments from a remote computer, eliminating the need for manual focus adjustments at the camera site.The camera is equipped with 3.3 to 10mm varifocal day/night lens. The Ethernet terminal punch-down eliminates the need to terminate with an RJ45 connector, and the steel camera hangers allow the installer to work with both hands. In addition, the rugged aluminum construction and IP66 weather rating allow the camera to be installed in harsh environments. With a power consumption of less than 8W, this camera can be fully operational using only Power over Ethernet. - Remote back focus for sharp focusing
- H.264 main profile and MJPEG compression
- Wide Dynamic Range (100 dB)
- Day/Night movable IR filter
- Lightgrabber II low-light feature
- Power options include Power over Ethernet, 12 to 24 VDC, 24 VAC
- IP66 / NEMA 4 outdoor enclosure
In the Box IQinVision IQ863WE-V17 IQeye Sentinel 3.1MP Day & Night WDR Outdoor IP Camera with Heater and 3.3 to 10mm Varifocal Lens V17 CS-Mount 3.3-10.5mm f/1.4 3MP IR-Corrected Varifocal Lens for IQ76 and IQ86 Series Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQ863WE-V17 IQeye Sentinel 3.1MP Day & Night WDR Outdoor IP Camera with Heater and 3.3 to 10mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQ863WE-V17 Specs | | | Compression | H.264 (main profile) and MJPEG
JPEG Compression Quality Settings: User configurable | | Maximum Resolution | 3.1MP (2048 x 1536) | | Sensor | 1/3" CMOS | | Shutter Speed | Auto / programmable / fixed | | Image Settings | Saturation, contrast, brightness, sharpness, Lightgrabber II | | Exposure | User configurable | | White Balance | Auto / programmable | | Backlight Compensation | Auto | | IR Range | 800 to 940 nm | | | | Motion Detection | User configurable windows | | Image Crop | User configurable windows | | Miscellaneous | Time Lapse Recording: User configurable
Virtual Cameras: User configurable windows
Event-Based Recording: User configurable
Analytics Ready: Yes | | Focus Assist | Remote Back Focus with One-Touch-Focus | | Flip and Rotate | 180°, horizontal, vertical | | Utilities | IQaccess, IQfinder, IQmanager, IQevent, IQanalytics | | System Integration | Agent Vi Agent Vi SW license required | | Network | Supported Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS, SNMP, UDP multicast, FTP, SMTP, and Telnet
Password Protection: Secure multi-level | | | | Input Power | Power over Ethernet 802.3af Class 3, 24 VAC, 12 to 24 VDC | | Power Consumption | <8 W (including heater) | | Lighting | AC Lighting: 50 / 60 Hz selectable | | Network Interface | RJ45 10Base-T/100Base-TX | | I/O | Physical: 1 input, 1 output | | | | Certifications | FCC, CE, UL, cUL, RoHS 2 | | Ingress Protection Rating | IP66, NEMA 4 | | Temperature Range | -22 to 122˚F (-30 to 50˚C) | | Maximum Frame Rate | 20 fps | | Minimum Illumination | Color: 0.2 lux
B&W: <0.05 lux | | Dimensions (HxWxL) | 9.58 x 4.64 x 8.35" (24.3 x 11.8 x 21.2 cm) | | Weight | 6.25 lb (2.83 kg) | | | | Image Format | 1/2.5" | | Focal Length | 3.3 to 10 mm | | Resolution | 170 LP/mm (center) / 150 LP/mm (edge) | | Focus Operation | With lock | | Zoom | With lock | | Field of View | Diagonal: 132°
Horizontal: 105.6°
Vertical: 79.2° | | Minimum Aperture | f/1.4 | | Iris | Manual | | Lens Mount | CS | | Minimum Object Distance (M.O.D.) | 0.98' (0.30 m) | | Compliance | RoHS | | Dimensions (Ø x H) | 1.2 x 1.5" (3.2 x 3.9 cm) | | Weight | 1.7 oz (48 g) |
