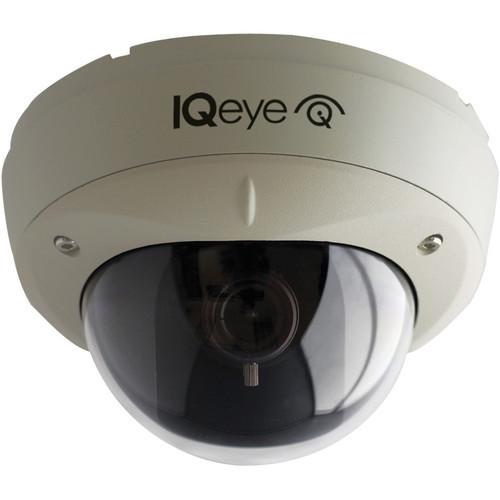

User Manual for IQinVision IQA31NE-B5 IQeye Alliance-Pro H.264 MP IP Dome Camera Click to enlarge the picture
Contents of the user manual for the IQinVision IQA31NE-B5 IQeye Alliance-Pro H.264 MP
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQA31NE-B5 IQeye Alliance-Pro H.264 MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQinVision IQA31NE-B5 IQeye Alliance-Pro H.264 MP IP Dome Camera is a full featured, multi-megapixel H.264 main profile vandal dome camera and supports up to 5 MP resolution. This camera provides multiple, individually configured H.264 and simultaneous MJPEG streams. Designed with the installer in mind, installation and maintenance are easy, thanks to the intuitive design, hinged pivoting shroud, 3-axis gimbal, EZglide lens focus, and analog output for focusing.
The Alliance-pro can be installed virtually anywhere using Power-over-Ethernet or AC or DC power and supports a movable IR filter for day and night operation as well as controls for optimizing video for any lighting condition. The 2-way audio allows for interactive communication between the camera and monitoring site. The external on-camera micro SDHC memory expansion port in combination with IQrecorder or Direct-To-Storage recording, make the Alliance-pro a flexible stand-alone platform ideal for motion based recording or remote monitoring. - H.264 main profile MJPEG compression
- Day/night movable IR filter
- Lightgrabber II low-light feature
- Supports input power 12 to 24 VDC, 24 VAC
- IP66/NEMA 4 outdoor enclosure
- Indoor/outdoor vandal resistant dome
In the Box IQinVision IQA31NE-B5 IQeye Alliance-Pro H.264 MP IP Dome Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQA31NE-B5 IQeye Alliance-Pro H.264 MP IP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQA31NE Specs | | | Compression | H.264 and MJPEG | | H.264 Profile | Main | | Sensor | 1/3" CMOS | | JPEG Compression Quality Settings | User configurable | | Shutter Speed | Auto/programmable/fixed | | Image Settings | Saturation, contrast, brightness, sharpness, and lightgrabber II | | Exposure | User configurable | | White Balance | Auto/programmable | | Backlight Compensation | Auto | | IR Range | 800 to 940 nm | | Lens Option | Wide angle lens 1/3" M14, 3 to 13 mm, F1.4, IR | | Maximum Resolution | HD720p - 1280 x 720 | | Maximum Frame Rate | 60 fps | | Minimum Illumination | Color: 0.1 lux, B&W: <0.05 lux | | | | Virtual Camera | User configurable windows | | Image Crop | User configurable windows | | Motion Detection | User configurable windows | | Access Time | User configurable | | Time Lapse | Recording: User configurable | | Event Recording | User configurable | | Flip and Rotate | 90, horizontal, vertical | | Analog Service Port | NTSC/PAL | | Audio Support | 2-way G.711 PCM 8 KHz Speakers not included | | Embedded Analytics | Yes | | Supported Apps | IQapps and IQaccess | | System Integration | ONVIF, PSIA, IQfinder, IQsentry IQmanager, Direct-to-Storage, IQrecorder, and IQevent | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, FTP, SMTP, Telnet, and CIFS | | Password Protection | Secure multi-level | | | | Input Power | 24 VAC, 12 to 24 VDC | | Power Consumption | < 3.4 W (typical) | | AC | 50 Hz/60 Hz selectable | | Network Interface | RJ-45 10Base-T/100Base-TX | | I/O Support | 1x input, 1x output | | Audio I/O | Mic in/line in, line out | | Storage | microSD class 6 + | | | | Ingress Protection Rating | IP66, NEMA 4 | | Approvals | FCC, CE, UL, cUL | | Temperature Range | -4 to 122˚F (-20 to 50˚C) | | Dimensions | Top: 5.8" (146.2 mm)
Side without backbox: 3.88" (98.6 mm)
Side with backbox: 5.42" (137.6 mm) | | Weight | 41.8 oz (1186 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
