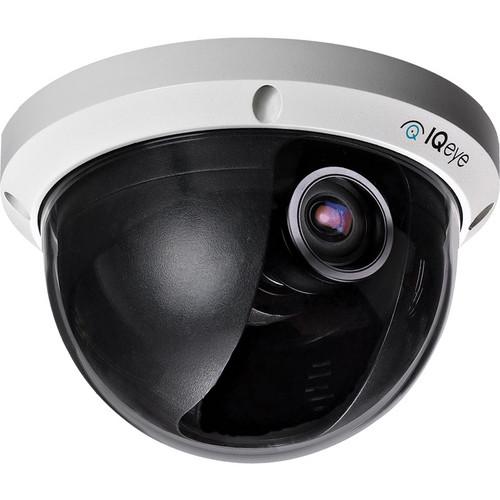

User Manual for IQinVision IQA32NX-A2 IQeye Alliance-Pro H.264 MP IP Dome Camera Click to enlarge the picture
Contents of the user manual for the IQinVision IQA32NX-A2 IQeye Alliance-Pro H.264 MP
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQA32NX-A2 IQeye Alliance-Pro H.264 MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQinVision IQA32NX-A2 IQeye Alliance-Pro H.264 MP IP Dome Camera is a full featured, multi megapixel H.264 main profile vandal dome camera. With support for up to 5 MP resolutions, this camera provides multiple, individually configured H.264 and simultaneous MJPEG streams. It is designed with the installer in mind; installation is quick and easy because of its remote motorized zoom and focus (eliminating the need for manual focus adjustments at the camera), a hinged pivoting shroud, and a 3-axis gimbal.
The Alliance-pro can be installed virtually anywhere using power-over-Ethernet or AC/DC power and supports a movable IR filter for day and night operation as well as controls for optimizing video for any lighting condition. Two-way audio allows for interactive communication between the camera and monitoring site. The external on-camera microSDHC memory expansion port, in combination with IQrecorder or Direct-to-Storage recording, make the Alliance-pro a flexible stand-alone platform ideal for motion based recording or remote monitoring. - H.264 main profile and MJPEG compression
- Remote Zoom and focus for easy installation
- Continuous analog video output
- Day/night movable IR filter
- Power over Ethernet, 12 to 24 VDC, 24 VAC
- IP66/NEMA 4 outdoor enclosure
In the Box IQinVision IQA32NX-A2 IQeye Alliance-Pro H.264 MP IP Dome Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQA32NX-A2 IQeye Alliance-Pro H.264 MP IP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQA32NX Specs | | | Maximum Resolution | HD1080p: 1920 x 1080 | | Maximum Frame Rate | 30 fps | | Compression | H.264 and MJPEG | | H.264 Profile | Main | | Sensor | 1/3" CMOS | | JPEG Compression Quality Settings | Quality Settings: User configurable | | Shutter Speed | Auto/programmable/fixed | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II, IQnightlight | | Exposure | User configurable | | White Balance | Auto/Programmable | | Backlight Compensation | Auto | | IR Range | 800 to 940 nm | | Minimum Illumination | Color: 0.2 lux
B/W: <0.05 lux | | | | Virtual | Cameras: User configurable windows | | Image Crop | User configurable windows | | Motion Detection | User configurable windows | | Access | Hours: User configurable | | Time Lapse | User configurable | | Recording | Event Based: User configurable | | Flip and Rotate | 180°, horizontal, vertical | | Focus/Zoom | Auto focus varifocal lenses with remote zoom & one-touch focus | | Analog Video | Service port & continuous (NTSC / PAL) | | Audio Support | 2-way G.711 PCM 8 kHz | | Analytics | Ready: Yes | | On-Camera IQapps | IQaccess | | System Integration | ONVIF, PSIA, IQfinder, IQsentry IQmanager, Direct-to Storage, IQrecorder, IQevent | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, FTP, SMTP, Telnet, CIFS | | Password Protection | Secure Multi-level | | | | Input Power | Power over Ethernet 802.3af Class 2 (NX)
24 VAC, 12 to 24 VDC | | Power Consumption | <5.2 W (typical) | | AC | Lighting: 50/60 Hz, selectable | | Network Interface | RJ45 10 to T/100Base-TX | | I/O | Physical: 1 input, 1 output | | Audio I/O | Mic-in/Line-in, Line-out | | Storage | Micro SD Class 6+ A class 10 or better SDHC memory card is required when edge server applications are running on the camera | | | | Lens | Auto focus wide angle lens, 1/3", ɸ 14, 9 to 22 mm, F1.5, IR | | Ingress Protection Rating | IP66, NEMA 4 | | Approvals | FCC, CE, UL, cUL | | Temperature Range | -22 to 122˚F (-30 to 50˚C) | | Dimensions | 5.8 x 3.88" (146.2 x 98.6 mm) without back box
5.8 x 5.42" (146.2 x 137.6 mm) with back box | | Weight | 42.08 oz (1,193 g) |
