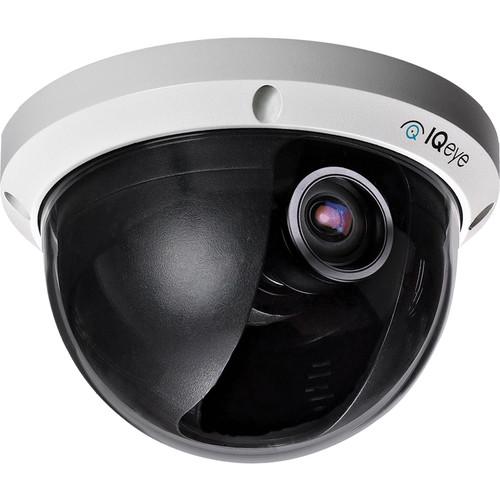

User Manual for IQinVision IQA33WEA3 Alliance-Pro H.264 3 MP WDR Day Night Exterior Dome Camera with 3-8 mm Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQA33WEA3 Alliance-Pro H.264 3 MP
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQA33WEA3 Alliance-Pro H.264 3 MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQA33WEA3 Alliance-Pro H.264 3 MP WDR Day/Night Exterior Dome Camera with 3-8 mm Lens from IQinVision incorporates a 1/3" sensor that captures clear images in 2048 x 1536 resolution at a frame rate of 20 fps. The camera employs H.264 video compression technology thereby conserving your video bandwidth. The camera records night time images in conditions with minimum illumination as low as 0.2 lux (color). - 1/3" sensor captures clear images in 2048 x 1536 resolution at a frame rate of 20 fps
- H.264 video compression technology
- 2-way audio communication
- Camera records night time videos in conditions with minimum illumination as low as 0.2 lux (color)
In the Box IQinVision IQA33WEA3 Alliance-Pro H.264 3 MP WDR Day/Night Exterior Dome Camera with 3-8 mm Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQA33WEA3 Alliance-Pro H.264 3 MP WDR Day Night Exterior Dome Camera with 3-8 mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQA33WE-A3 Specs | | | MegaPixels | 3 MP | | Maximum Resolution | 2048 x 1536 | | Video Max Frame Rate | 20 fps | | Video Compression | H.264 (Main Profile) and MJPEG | | Day/Night | Yes | | Sensitivity | Color: 0.2 lux, B&W: < 0.05 lux | | IR Range | 800 to 940 nm | | Dynamic Range | 100 dB (WDR sensor) | | Shutter Speed | 1/20,000 sec | | Lens | 1/3" M14 | | | | Format | 2-Way | | Speaker | External | | Microphone | External | | Audio Compression | G.711 PCM 8 kHz | | | | Motion Detection | Multi-Zone (User Configurable) | | Physical Interfaces | 1/1 | | | | White Balance | Auto/Programmable | | Exposure | User Configurable | | Backlight Compensation | Auto | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II | | Image Orientation | 180˚, Horizontal, Vertical | | Format | Corridor Format: Yes | | | | Power Type | PoE (802.3af Class 3), Aux 24 VAC and Aux 12 to 24 VDC | | Power Consumption | < 5.2 W | | | | Utilities | IQfinder, IQmanager, IQaccess | | On-Camera IQapps | IQanalytics (IQinVision license required), exacqVision Edge (exacqVision SW license required), Agent Vi (AgentVi SW license required) | | Storage | Micro SD Class 10 UHS-1 Card not included | | Analytics | Yes | | Analog Video Output | Full-Time | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Vandal Resistance | IK10 | | Ingress Protection Rating | IP66, NEMA 4 | | Approvals | FCC, CE, UL, cUL, RoHS 2 | | Dimensions (H x W x D) | 5.4 x 5.7 x 5.7" (137.6 x 146.2 x 146.2 mm) | | Weight | 41.8 oz (1186 g) |
