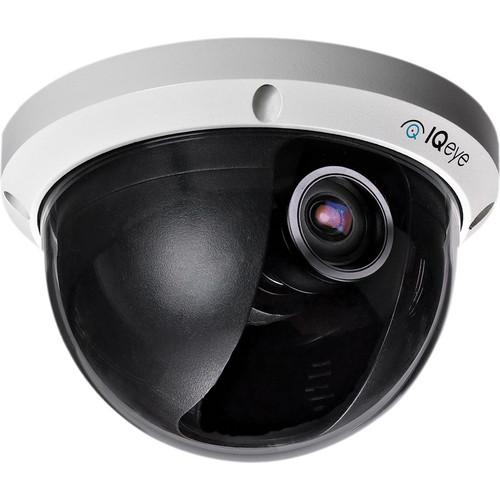

User Manual for IQinVision IQA35NX Alliance-Pro Extreme Outdoor Dome Camera with 3-8mm AFZ Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQA35NX Alliance-Pro Extreme Outdoor Dome
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQA35NX Alliance-Pro Extreme Outdoor Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQinVision IQA35NX Alliance-Pro Extreme Outdoor Dome Camera with 3-8mm AFZ Lens is a fully featured, multi-megapixel H.264 main profile, exterior day/night dome camera. With 5 Mp resolution, this camera provides multiple, individually configured H.264 and simultaneous MJPEG streams.
It is equipped with the A3 (3mm to 8mm) auto-zoom and focus lens. Designed with the installer in mind, installation is quick and easy, thanks to the remote motorized zoom and focus, hinged pivoting shroud, and 3-axis gimbal. - User configurable windows motion detection
- Auto backlight compensation
- IQnightlight functionality for both day and night image capture
In the Box IQinVision IQA35NX Alliance-Pro Extreme Outdoor Dome Camera with 3-8mm AFZ Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQA35NX Alliance-Pro Extreme Outdoor Dome Camera with 3-8mm AFZ Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQA35NX Specs | Rating | Megapixel: 5 Mp | | Maximum Resolution | 2560 x 1920 | | Maximum Frame Rate | 10 fps | | Sensitivity | Color: 0.3 lux
B&W: <0.05 | | IR Range | 31.5 x 37.0" (800.0 to 940.0 mm) | | Dynamic Range | 71 dB | | Shutter Speed | 1/20,000 sec | | Lens | Format: 1/2.7" | | Field of View | Horizontal
Tele: 46°
Wide: 109° | | Focal Length | 3 to 8 mm | | F-Stop | F1.5 | | Iris Operation | Fixed | | Lens Mount | Φ14 | | Compliance | PSIA: Yes
ONVIF: Yes | | Audio | Mic in / line in, line out | | Speaker | External | | Microphone | External | | Audio Compression | G.711 PCM 8 kHz | | Video Compression | H.264 and MJPEG | | Alarm | Input / Output: 1 / 1 | | Power Type | PoE, Aux 24 VAC and Aux 12 to 24 VDC
PoE Class: Class 2 | | Power Consumption | <5.2 W | | Analog Video Output | NTSC / PAL | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Dimensions (H x W x D) | 5.42 x 5.77 x 5.77" (137.60 x 146.20 x 146.20 mm) | | Weight | 42.08 oz (1,193.00 g) |
