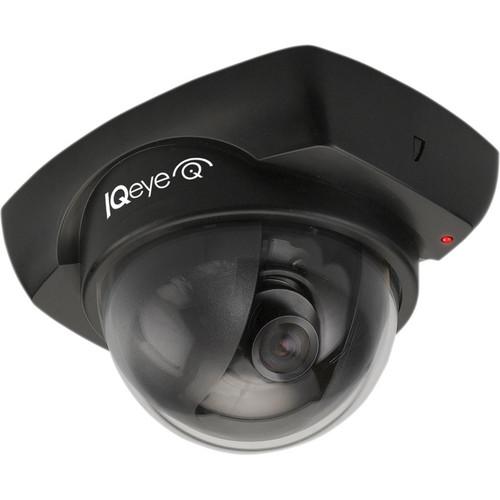

User Manual for IQinVision IQD30SV-F1 Alliance-Mini H.264 MP Dome IP Camera Click to enlarge the picture
Contents of the user manual for the IQinVision IQD30SV-F1 Alliance-Mini H.264 MP Dome
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQD30SV-F1 Alliance-Mini H.264 MP Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description Supporting H.264 main profile, the IQinVision IQD30SV-F1 IQeye Alliance-Mini H.264 MP Dome IP Camera (SD480p) offers good image quality in a tiny, versatile, and attractive mini-dome package. It provides SD480p 720 x 480 resolution, making it one of the smallest professional high-resolution surveillance dome cameras. At only 2.78” (7.07 cm) in height, this Alliance-mini camera is designed for discreet indoor use, ideal for retail, office, and healthcare environments. This lightweight camera easily mounts to ceilings or walls, and the true 3-axis gimbal, locking shroud, and Power over Ethernet design saves time and money on installation and maintenance. The camera also supports streaming audio, allowing 2-way communication between the camera and remote/monitoring locations. ONVIF and PSIA compliant APIs provide the flexibility to ensure compatibility with most popular VMS platforms. This camera comes with an F1 Wide Angle Lens. - Resolutions up to 720 x 480
- H.264 main profile + MJPEG compression
- 60 fps @ SD480p, 60 fps @ SD480p
- Two-way audio with built-in microphone
- Lightgrabber II Low-light feature
In the Box IQinVision IQD30SV-F1 Alliance-Mini H.264 MP Dome IP Camera (SD480p) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQD30SV-F1 Alliance-Mini H.264 MP Dome IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQD30SV Specs | Compatible Devices | IQD4-PB Pendant Mount Black
IQD4-WB Wall Mount Black
IQD-GBA Gang Box Adapter | | | | Compression | H.264 and MJPEG | | H.264 Profile | Main | | Sensor | 1/3" CMOS | | Max Resolution | 720 x 480 | | Max. Frame Rate | 60 fps | | Minimum Illumination | Color: 0.1 lux | | JPEG Compression Quality Settings | User Configurable | | Shutter Speed | Auto/programmable/fixed | | Image Settings | Saturation, contrast, brightness, sharpness, Lightgrabber II | | Exposure | User configurable | | White Balance | Auto/programmable | | Backlight Compensation | Auto | | | | Motion Detection | User configurable windows | | Time Lapse | Recording: User configurable | | Event Recording | User configurable | | Flip and Rotate | 180, horizontal, vertical | | Audio Support | 2-way G.711 PCM 8 kHz | | Application | Camera IQ access | | System Integration | ONVIF, PSIA, IQfinder, IQmanager, IQsentry, IQevent, Direct-to-Storage | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, FTP, SMTP, Telnet, CIFS | | Password Protection | Secure multi-level | | | | Input Power | Power over Ethernet 802.3af Class 1 | | Power Consumption | <3.8 W (typical) | | Lighting | AC: 50 / 60 Hz, selectable | | Network Interface | RJ45: 10Base-T/100Base-TX | | Audio I/O | Built-in microphone, mic/line in, line out Speaker sold separately | | | | Approvals | FCC, CE | | Temperature Range | 32 to 104˚F(0 to 40˚C) | | Lens | F1 Wide-Angle Lens: 1/3" M12, 4.2 mm, F1.8 | | Base Dimensions (WxH) | 4.52 x 2.78" (11.50 x 7.07 cm) | | Weight | 10.51 oz (298 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.6 x 4.2 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
