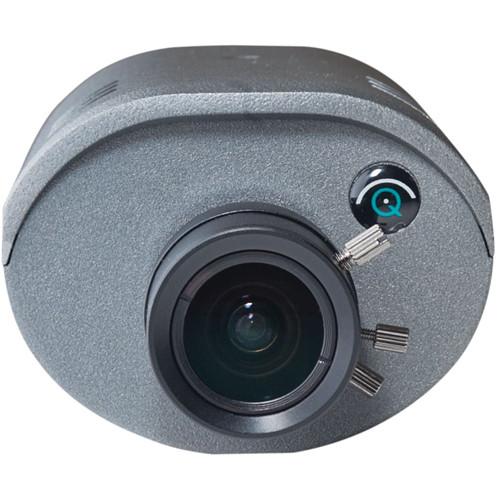

User Manual for IQinVision IQeye 7 Series IQ761NI-V16 1MP Day Night Megapixel Indoor IP Camera with 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQeye 7 Series IQ761NI-V16 1MP
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
 |
User manual for the IQinVision IQeye 7 Series IQ761NI-V16 1MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|

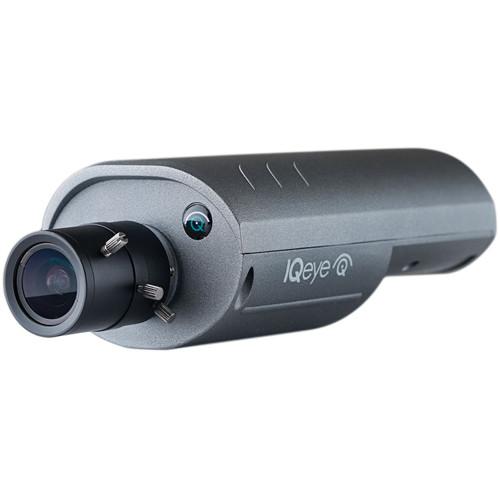

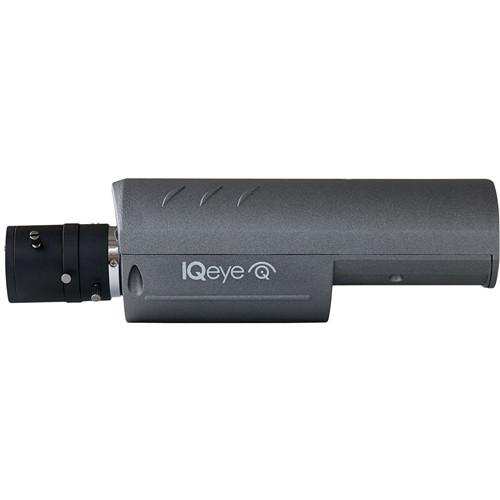

Product description The gray IQeye 7 Series IQ761NI-V16 1MP Day/Night Megapixel Indoor IP Camera from IQinVision offers a blend of high-end features that make it suitable for monitoring areas such as banks, airports, driveways and healthcare centers. Included in the package are the Megapixel Day/Night Camera and a 2.8-12mm wide angle lens along with the necessary cables that you need for installation. With its 1/3" CMOS sensor, the security camera captures clear images at a resolution of up to HD720p. In addition, this camera's 2.8-12mm wide angle lens with a 103° wide and 32° tele oscillatory ventilation ensures coverage of a wider surveillance area. Analog video out and remote back focus facilitate easy image capture and installation. Moreover, the One-Touch-Focus feature ensures sharp images and greatly reduces installation time. It also allows you to make fine focus adjustments from a remote computer, eliminating the need for manual focus adjustments at the camera location. Designed for low-light surveillance, this camera features Day/Night switching and offers a sensitivity of 0.1 lux in color and lesser than 0.05 in B&W modes at F1.4. Featuring a moveable IR filter for day and night functionality, the camera provides image controls for optimization of video for any lighting condition. Moreover, the Lightgrabber technology ensures high performance in low-light conditions.
On detecting any motion in the vicinity, the camera captures just-in-time snapshots and sends alarm triggers. These snapshots or footage can be stored on a microSD card, or can be recorded for Direct-To-Storage creating a flexible standalone recording platform ideal for motion-based recording for remote monitoring.
This camera can be powered by Power-over-Ethernet or directly by AC or DC voltage. Its built-in 802.3af compliant PoE allows the camera to receive power directly from its network interface, making installation possible without the need for additional wiring and cables. - Excellent Image Quality
-
- 1/3" CMOS sensor and a 2.8-12mm wide angle lens captures clear and crisp images at a resolution up to HD720p
- Minimum illumination of 0.1 lux (color) and 0.05 lux (B&W) makes the camera suitable for low-light surveillance
- Backlight compensation adjusts video gain to correct the exposure when the object is in front of a bright light source
- White balance feature adjusts the red, green, and blue colors taking a standard white reference to get clear images
- Moveable IR filter for Day/Night functionality switches between color and B&W as per changes in ambient lighting, ensuring accurate color reproduction in daylight and enhanced B&W images at night
- Optimized Use of Bandwidth & Storage
-
- H.264 and MPEG streams can be provided simultaneously either in full frame rate or individually optimized for different quality needs and bandwidth constraints
- SDHC card slot with IQrecorder for recording images or small video clips
- Direct-to-Storage recording make the 7 Series a flexible stand-alone recording platform ideal for motion-based recording or remote monitoring
- Available IQapps
-
- IQrecorder allows you to easily record images to your network server, network attached storage (NAS), or on the security camera using a compact flash drive
- IQaccess on-camera intelligent software turns any IQeye camera into a basic access control system or remote attendant/notification system
- IQmanager simplifies installation and management of IQeye cameras on the network, and it can be used to manage everything from small-scale systems with a few IP cameras
- IQfinder discovers and displays IQeye devices on your network
- Intelligent Features
-
- Motion detection feature triggers an alarm in case of any movement in a designated portion of the video display
- Lightgrabber technology ensures high performance in low-light conditions
- Includes features such as privacy masking, image crop, 180° Flip and Rotate images
- Remote Back Focus for sharp focusing
- One-Touch-Focus feature for sharp images greatly reduces installation time and allows fine focus adjustment from a remote computer, eliminating the need for manual focus adjustments at the camera
- Password Protection restricts access to unauthorized persons
- 2-Way Audio
-
- Allows for interactive communication between the camera and monitoring site
1 Please Note: Speaker not included. close - Power over Ethernet
-
- Supports Power-over-Ethernet or can be powered directly via AC or DC power
- Built-in 802.3af compliant PoE allows the camera to receive power directly from its network interface, making installation possible without the need for additional wiring and cables
In the Box IQinVision IQeye 7 Series IQ761NI-V16 1MP Day/Night Megapixel Indoor IP Camera with 2.8-12mm Lens (Gray) 6" (153 mm) IQ76X Series Analog Video Cable Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQeye 7 Series IQ761NI-V16 1MP Day Night Megapixel Indoor IP Camera with 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQ761NI Specs | | | Sensor | 1/3" CMOS | | Compression | H.264: Main profile
MJPEG: User configurable quality settings for JPEG compression | | Shutter Speed | Auto / Programmable / Fixed | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II | | Exposure | User configurable | | White Balance | Auto/Programmable | | Backlight Compensation | Auto | | IR Range | 800 to 940 nm | | Maximum Resolution | HD720p - 1280 x 720 | | Frame Rate | 60 fps | | Minimum Illumination | Color: 0.1 lux, B/W: lesser than 0.05 lux | | Lens Mount | CS | | Lens | 1/3" format 2.8-12 mm wide angle lens | | Maximum HFOV | Telephoto: 28° Wide: 89° | | Aperture | F1.4 | | Iris Operation | Manual | | Day/Night | Yes | | | | Motion Detection | User configurable windows | | Image Settings | Image Crop: User configurable windows | | Access Control | Access Hours : User configurable | | Recording | Time lapse & event based recording: User configurable | | Rotate | 180°, horizontal, vertical | | Digital Flip | 180°, horizontal, vertical | | Analog Video | Continuous NTSC/PAL | | Audio Support | 2-way G.711 PCM 8 kHz | | Embedded Analytics | Yes | | Supported Apps | IQaccess, IQrecorder, IQevent | | System Integration | ONVIF, PSIA, IQfinder, IQmanager, IQsentry, DTS (Direct-to-Storage) | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS,SNMP, UDP multicast, FTP, SMTP, Telnet | | Password Protection | Secure Multi-level | | | | Input Power | Power over Ethernet 802.3af Class 3, 24 VAC, 12-24 VDC | | Power Consumption | < 8W (typical) | | AC | 50 Hz/60 Hz selectable | | Network Interface | RJ45 10Base-T/100Base-TX | | I/O Support | 1 input, 1 output | | Audio I/O | Built-in microphone, Mic/Line in, Line out | | Storage | SDHC slot (card not included) | | | | Approvals | FCC, CE, UL, cUL | | Temperature Range | 32 to 104˚F (0 to 40˚C) | | Dimensions | Front (L x W): 2.305 x 3.039" (77.2 x 58.6 mm)
Side: 6.136" (155.9 mm)
Back: 1.721" (43.7 mm) | | Weight | 12.45 oz (353 g) |
