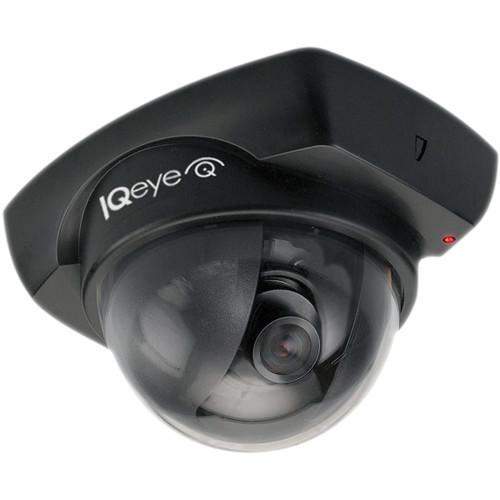

User Manual for IQinVision IQeye Alliance-mini II Series IQD52WV-F2 1080p H.264 Vandal-Resistant PoE IP Dome Camera with 2.8mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQeye Alliance-mini II Series IQD52WV-F2
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQeye Alliance-mini II Series IQD52WV-F2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQeye Alliance-mini II Series IQD52WV-F2 1080p H.264 Vandal-Resistant PoE IP Dome Camera with 2.8mm Fixed Lens from IQinVision uses H.264 compression to provide high-quality megapixel images while utilizing low network bandwidth. In addition to the processing power needed to run VMS applications at the edge, it features WDR, on-camera storage (micro SDHC card slot), and true day/night capability. Both ONVIF and PSIA compliant, the camera has been designed for indoor applications and works seamlessly with nearly all leading NVR/VMS providers. This IP dome camera easily mounts to a ceiling or wall using separately available wall/pendant mount brackets. The 3-axis gimbal, locking shroud, and PoE design make installation quick and easy. The camera includes black and beige aluminum trim rings for aesthetic flexibility and convenience. - H.264 Main profile and MJPEG compression
- Micro SDHC slot for on-camera storage (memory card not included)
- Two-way audio with built-in microphone
- 100 dB WDR and true day/night function with movable IR-cut filter
- Lightgrabber II low-light feature
- Cast aluminum vandal-resistant body
In the Box IQinVision IQeye Alliance-mini II Series IQD52WV-F2 1080p H.264 Vandal-Resistant PoE IP Dome Camera with 2.8mm Fixed Lens 2 x Aluminum Trim Ring (Black and Beige) Mini-CD with IQeye PC Tools Mounting Hardware 2 x Spare Tamper-Proof Trim Cover Screw Torx T-10 Security Wrench Microphone In / Line-Out Audio Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQeye Alliance-mini II Series IQD52WV-F2 1080p H.264 Vandal-Resistant PoE IP Dome Camera with 2.8mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQD52WV-F2 Specs | | | Sensor | 1/3" CMOS | | Resolution | 2 MP, 1920 x 1080 (HD 1080p) | | Frame Rate | 30 fps maximum | | Video Compression | H.264 (Main profile) and MJPEG | | JPEG Compression Quality Settings | User configurable | | Day/Night | Yes | | Sensitivity | Color: 0.2 lux
B&W: <0.05 lux | | IR Range | Sensor: 800 to 940 nm | | Dynamic Range | 100 dB (WDR sensor) | | Shutter Speed | 1/20,000 sec (auto / programmable / fixed) | | Lens | Format: 1/3" M12
Focal Length: 2.8mm
Aperture: f/2.0
Angle of View: 86° | | | | Motion Detection | Multi-zone (user configurable windows) | | Recording | Time Lapse and Event Based: User configurable | | Analytics | Yes | | | | White Balance | Auto / programmable | | Exposure | User configurable | | Backlight Compensation | Auto / off | | Image Settings | Saturation, contrast, brightness, sharpness, Lightgrabber II | | Image Orientation | 180°, horizontal, vertical
Corridor Format Option: Yes | | | | Audio Support | Two-way, G.711 PCM 8 kHz | | I/O | Built-in microphone, mic/line in, line out | | | | Interface | RJ45, 10Base-T / 100Base-TX | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, SMTP, Telnet, CIFS | | Password Protection | Secure multi-level | | | | Input Power | Power over Ethernet 802.3af class 2 | | Consumption | <4 W, typical | | AC Power | 50 / 60 Hz selectable | | | | Local Storage | Micro SD class 10 UHS (card not included)
Compatible Card Sizes: 8, 16, 32, 64, and 128 GB 64 and 128 GB cards require firmware v4.0/050 or higher. Kingston memory cards will not function properly. | | Utilities | IQfinder, IQmanager, IQevent, Direct-to-Storage (DTS) | | System Integration | exacqVision Edge (SW license, network time server required), Agent Vi (SW license required) | | Approvals | FCC, CE, UL, cUL, RoHS 2 | | Vandal Resistant | IK7 | | IP Rating | IP40 | | Temperature Range | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 3.5 x 2.8 x 4.5" (9.0 x 7.1 x 11.5 cm) | | Weight | 10.5 oz (298 g) |
