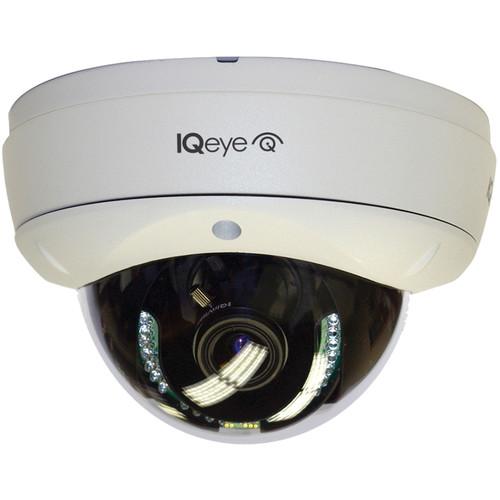

User Manual for IQinVision IQeye Alliance-mx II Series IQM55NR-B5 5MP H.264 Vandal-Resistant PoE IR Network Dome Camera with 3 to 13mm Wide-Angle Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQeye Alliance-mx II Series IQM55NR-B5
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQeye Alliance-mx II Series IQM55NR-B5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQeye Alliance-mx II Series IQM55NR-B5 5MP H.264 Vandal-Resistant PoE IR Network Dome Camera with 3 to 13mm Wide-Angle Lens from IQinVision uses H.264 compression to provide high quality megapixel images while utilizing low network bandwidth. In addition to the processing power needed to run VMS applications at the edge, it features on-camera storage (micro SDHC card slot) and built-in IR illuminator. Both ONVIF and PSIA compliant, the camera works seamlessly with many of the most popular VMS platforms. This IK10-rated vandal-resistant IP dome camera features a strong aluminum housing and polycarbonate shell. In addition, the IP66 rating allows for both indoor and outdoor installation. - H.264 Main profile and MJPEG compression
- Built-in IR illuminator with up to 98.4' (30m) range
- microSDHC slot for on-camera storage (memory card not included)
- 71 dB WDR and true day/night function with movable IR-cut filter
- Lightgrabber II low-light feature
- IP66/NEMA 4-rated outdoor enclosure
- IK10-rated vandal-resistant
In the Box IQinVision IQeye Alliance-mx II Series IQM55NR-B5 5MP H.264 Vandal-Resistant PoE IR Network Dome Camera with 3 to 13mm Wide-Angle Lens Torx T-20 Security Wrench Mounting Hardware Lens Cover IQtools CD-ROM Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQeye Alliance-mx II Series IQM55NR-B5 5MP H.264 Vandal-Resistant PoE IR Network Dome Camera with 3 to 13mm Wide-Angle Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQM55NR-B5 Specs | | | Sensor | 1/3" CMOS | | Resolution | 5 MP, 2560 x 1920 | | Frame Rate | 10 fps maximum | | Video Compression | H.264 (Main profile) and MJPEG | | JPEG Compression Quality Settings | User configurable | | Day/Night | Yes | | Sensitivity | Color: 0.3 lux
B&W: <0.05 lux (without IR) | | IR Range | Sensor: 800 to 940 nm | | IR Illuminator | 22 x 850 nm LEDs
Range: 98.4' (30 m) | | Dynamic Range | 71 dB (WDR sensor) | | Shutter Speed | 1/20,000 sec (auto / programmable / fixed) | | Lens | Format: 1/2.5" M14
Focal Length: 3 to 13mm
Aperture: f/1.4
Angle of View: 74° (W) to 27°(T) | | | | Motion Detection | Multi-zone (user configurable windows) | | Recording | Time Lapse and Event Based: User configurable | | Analytics | Yes | | | | White Balance | Auto / programmable | | Exposure | User configurable | | Backlight Compensation | Auto | | Image Settings | Saturation, contrast, brightness, sharpness, Lightgrabber II | | Image Orientation | 180°, horizontal, vertical
Corridor Format Option: Yes (up to HD1080p) | | | | Audio Support | Two-way, G.711 PCM 8 kHz | | I/O | External microphone, mic/line in, line out | | | | Interface | RJ45, 10Base-T / 100Base-TX | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, SMTP, Telnet, CIFS | | Password Protection | Secure multi-level | | | | Input Power | Power over Ethernet 802.3af class 2 | | Consumption | <4 W, typical | | AC Power | 50 / 60 Hz selectable | | | | Local Storage | microSDHC class 10 UHS (card not included)
Compatible Card Sizes: 8, 16, 32, 64, and 128 GB 64 and 128 GB cards require firmware v4.0/050 or higher. Kingston memory cards will not function properly. | | Utilities | IQfinder, IQanalytics, IQmanager, IQevent, Direct-to-Storage (DTS) | | System Integration | exacqVision Edge (SW license, network time server required), Agent Vi (SW license required) | | Approvals | FCC, CE, UL, cUL, RoHS 2 | | Vandal Resistant | IK10 | | IP Rating | IP66, NEMA 4 | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions (Ø x D) | 5.9 x 3.8" (15.0 x 9.7 cm) | | Weight | 1.98 lb (0.90 kg) |
