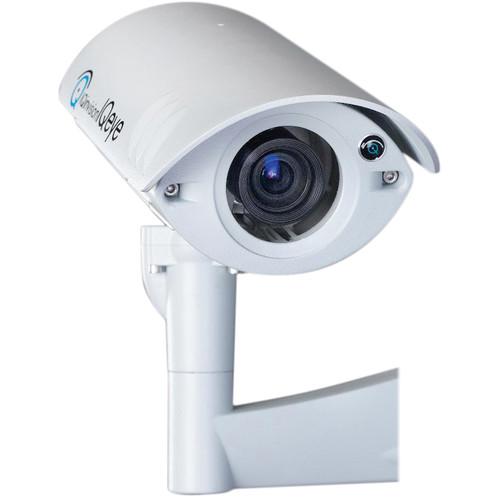

User Manual for IQinVision IQeye Sentinel IQ861NE-V17 Megapixel Day Night Outdoor IP Camera with V17 3.3 to 10mm Wide-Angled Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQeye Sentinel IQ861NE-V17 Megapixel Day
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQeye Sentinel IQ861NE-V17 Megapixel Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQeye Sentinel IQ861NE-V17 Megapixel Outdoor IP Camera with V17 3.3 to 10mm Wide-Angled Lens from IQinVision comes equipped with a 1/3" CMOS sensor that helps captures clear images at a resolution of up to HD720p. Its 3.3 to 10mm, f/1.4 wide-angled lens offers an 82° wide and 32° tele FOV. This day/night camera features a moveable IR filter for day and night functionality providing image control for video optimization under any lighting condition. The camera's One-Touch-Focus feature ensures sharp images and greatly reduces installation time. It also allows you to make fine focus adjustments from a remote computer, thus eliminating the need for manual focus adjustments at the camera location. This camera supports individually configured H.264 and simultaneous MJPEG streams for optimal usage of the available bandwidth and storage space. The camera comes with an Ethernet terminal punch-down eliminating the need to terminate it with an RJ45 connector. It also features built-in steel camera hangers for easy installation. The camera's aluminum casing is IP66 and NEMA 4 rated protecting the camera against corrosion, windblown dust and rain, splashing water, hose-directed water, and damage from frost. - 1/3" CMOS sensor and 3.3 to 10mm wide-angled lens
- Frame rate of 60 fps @ HD720p
- Remote back focus with One-Touch-Focus for sharp focusing
- H.264 Main Profile and MJPEG compression
- True day/night function with moveable IR filter
- Supports PoE or can be powered directly via 24 VAC or 12 to 24 VDC power
- IP66- & NEMA 4-rated outdoor enclosure
In the Box IQinVision IQeye Sentinel IQ861NE-V17 Megapixel Day/Night Outdoor IP Camera with V17 3.3 to 10mm Wide-Angled Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQeye Sentinel IQ861NE-V17 Megapixel Day Night Outdoor IP Camera with V17 3.3 to 10mm Wide-Angled Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQ861NE-V17 Specs | | | Sensor | 1/3" CMOS | | Video Compression | H.264 & MJPEG
H.264 Main Profile | | Maximum Resolution | HD720p (1280 x 720) | | Frame Rate | 60 fps | | Day/Night | True with movable IR filter | | Minimum Illumination | Color: 0.1 lux
B&W: lesser than 0.05 lux | | IR Range | 800 to 940 nm | | JPEG Compression Quality Settings | User configurable | | Shutter Speed | Auto / Programmable / Fixed | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II | | Exposure | User configurable | | White Balance | Auto/Programmable | | Backlight Compensation | Auto | | Lens | 3.3 to 10 mm wide-angled lens | | Maximum HFOV | Telephoto: 82° and wide: 32° | | Aperture | f/1.4 | | Iris Operation | Manual | | Lens Mount | CS | | | | Virtual Camera | User configurable windows | | Motion Detection | User configurable windows | | Recording | User configurable time lapse & event based recording | | Digital Flip | 180°, horizontal & vertical | | Rotate | 180°, horizontal & vertical | | Focus Assist | Remote back focus with One-Touch-Focus | | Embedded Analytics | Yes | | Supported Apps | IQaccess, IQfinder, IQmanager, IQevent, IQanalytics | | System Integration | Agent Vi (Agent Vi SW license required) | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS,SNMP, UDP multicast, FTP, SMTP, Telnet | | Password Protection | Secure Multi-level | | | | Input Power | Power over Ethernet 802.3af Class 3, 24 VAC, 12 to 24 VDC | | Power Consumption | <8 W including heater | | AC | 50/60 Hz selectable | | Network Interface | RJ45 10Base-T/100Base-TX | | I/O Support | 1 input, 1 output | | | | Ingress Protection Rating | IP66 & NEMA 4 | | Approvals | FCC, CE, UL, cUL | | Temperature Range | -22 to 122˚F (-30 to 50˚C) | | Dimensions (L x W) | Front View: 9.58 x 4.64" (24.33 x 11.8 cm)
Side View: 9.58 x 8.35" (24.33 x 21.2 cm) | | Weight | 6.26 lb (2.84 kg) |
