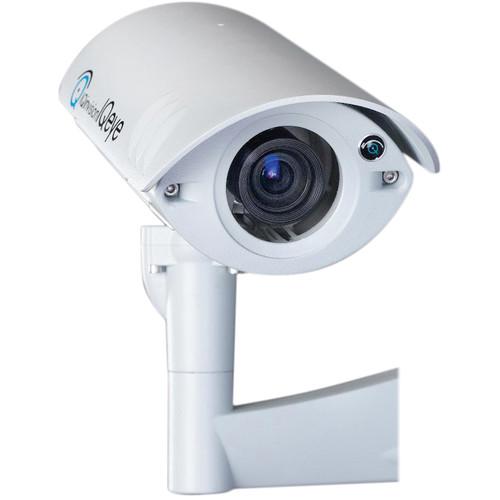

User Manual for IQinVision IQeye Sentinel IQ863WE-W2 H.264 3MP WDR Outdoor Camera with Remote Focus Click to enlarge the picture
Contents of the user manual for the IQinVision IQeye Sentinel IQ863WE-W2 H.264 3MP
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQeye Sentinel IQ863WE-W2 H.264 3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQeye Sentinel IQ863WE-W2 H.264 3MP WDR Outdoor Camera with Remote Focus from IQinVision is a full-featured, multi-megapixel H.264 Main Profile all-weather camera. It provides multiple, individually configured H.264 and simultaneous MJPEG streams. The remote back focus feature reduces installation time using the One-Touch Focus feature for sharp images, and allows fine focus adjustments from a remote computer, eliminating the need for manual focus adjustments at the camera. Ethernet terminal punch-down eliminates the need to terminate with an RJ45 connector. Steel camera hangers allow the installer to work with both hands.
In addition, the rugged aluminum construction, and IP66 weather rating allow the camera to be installed in almost any harsh environment with the optionally available wall, ceiling, and parapet mounts. At less than 7W power consumption, the IQ863WE-W2 can be powered using a PoE class 3 supply. In the Box IQinVision IQeye Sentinel IQ863WE-W2 H.264 3MP WDR Outdoor Camera with Remote Focus 3mm Allen Wrench Wall Mount Template CD-ROM Punch Down Tool Mounting Hardware Optional Heyco Fittings Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQeye Sentinel IQ863WE-W2 H.264 3MP WDR Outdoor Camera with Remote Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQ863WE-W2 Specs | | | Camera Type | Standard Outdoor | | MegaPixels | 3.1 | | Maximum Resolution | 2048 x 1536 | | Maximum Frame Rate | 20 | | Sensitivity | Color : 0.02 (lux)
B&W: <0.05 (lux) | | IR Range | 800 to 940 nm | | Dynamic Range | 100 dB | | Shutter Speed | 1/20,000 sec | | Lens | 1/3" CS | | | | Video Compression | H.264 and MJPEG | | Cropping | Digital | | AWB | Yes | | Backlight Compensation | Auto | | Day & Night | IQnightlight feature | | | | Motion Detection | Multi-zone | | Alarm Input / Output | 1/1 | | | | Power Type | PoE, Aux 24 VAC and Aux 12 to 24 VDC | | PoE Class | Class 3 | | Power Consumption | 8.0 W | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Dimensions (H x W x D) | 9.6 x 4.9 x 15.3" (24.3 x 12.4 x 39.0 cm) | | Weight | 6.25 lb (2.8 kg) |
