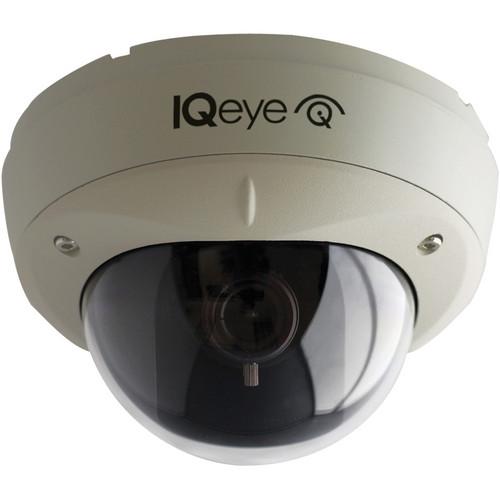

User Manual for IQinVision IQM30NE-B5 IQeye Alliance-mx H.264 Megapixel Dome IP Camera Click to enlarge the picture
Contents of the user manual for the IQinVision IQM30NE-B5 IQeye Alliance-mx H.264 Megapixel
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQM30NE-B5 IQeye Alliance-mx H.264 Megapixel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQinVision IQM30NE-B5 IQeye Alliance-mx H.264 Megapixel Dome IP Camera encodes videos using H.264 as the main profile, which is the most efficient video compression available, resulting in a smooth, high-quality image, low network bandwidth utilization, and reduced storage costs. Requiring less than 3.8 W Power-over-Ethernet (PoE), Alliance-mx is highly energy-efficient and economical. A movable day / night IR filter and 3 to 13mm varifocal lens enable field-of-view adaptability for a wide range of settings and applications. ONVIF and PSIA compliant APIs provide the necessary flexibility to ensure compatibility with many of the most popular VMS platforms. A high-quality, ultra-strong polycarbonate bubble and an aluminum body combine to make the Alliance-mx dome vandal-resistant while maintaining an aesthetically pleasing look in any setting. The IP66 rating allows for installation just about anywhere. - Resolutions up to SD480p-720 x 480
- H.264 main profile and MJPEG compression
- Day / night movable IR filter
- Lightgrabber II low-light feature
- Power-over-Ethernet (PoE)
- IP66 / NEMA 4 outdoor enclosure
- Indoor / outdoor vandal-resistant dome
In the Box IQinVision IQM30NE-B5 IQeye Alliance-mx H.264 Megapixel Dome IP Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQM30NE-B5 IQeye Alliance-mx H.264 Megapixel Dome IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQM30NE Specs | | | Compression | H.264 and MJPEG | | H.264 Profile | Main | | Sensor | 1/3" CMOS | | JPEG Compression Quality Settings | User configurable | | Shutter Speed | Auto / programmable / fixed | | Image Settings | Saturation, contrast, brightness, sharpness, lightgrabber | | Exposure | User configurable | | White Balance | Auto / programmable | | Backlight Compensation | Auto | | IR Range | 800 to 940 nm | | Motion Detection | User configurable windows | | Recording | Time Lapse / Event Based: User configurable | | Flip and Rotate | 180, horizontal, vertical | | Audio Support | 2-way G.711 PCM 8 kHz | | Embedded Analytics | N / A | | On-Camera IQapps | IQaccess | | System Integration | ONVIF, PSIA, IQfinder, IQmanager, IQsentry, IQevent, Direct-to-Storage | | | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, FTP, SMTP, Telnet, and CIFS | | Password Protection | Secure multi-level | | | | Input Power | PoE 802.3af Class 1 | | Power Consumption | <3.8 W (typical) | | Lighting | 50/60 Hz selectable (AC) | | Network Interface | RJ45 10 Base-T/100 Base-TX | | Audio I/O | Mic / line in, line out | | | | Lens | B5 wide angle lens 1/3" M14, 3 to 13 mm, F1.4, IR | | Ingress Protection Rating | IP66, NEMA 4 | | Approvals | FCC, CE | | Temperature Range | -4 to 122˚F (-20 to 50˚C) | | Weight | 31.74 oz (900 g) |
