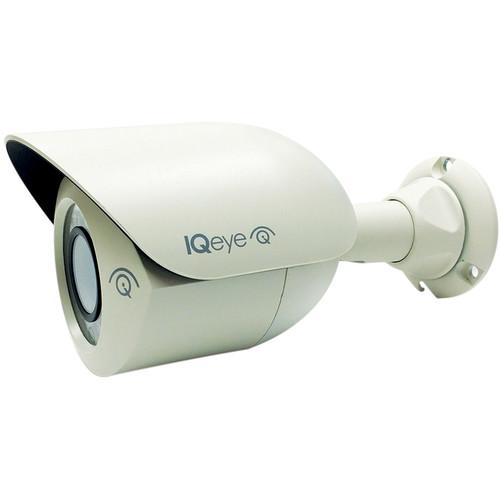

User Manual for IQinVision IQR52NR-F9 R5 Series 2MP 1080p Indoor Outdoor Bullet Camera with 3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the IQinVision IQR52NR-F9 R5 Series 2MP 1080p
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision IQR52NR-F9 R5 Series 2MP 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The IQR52NR-F9 R5 Series 2MP 1080p Indoor/Outdoor Bullet Camera from IQinVision incorporates a 1/3" CMOS sensor that captures Full HD images in 1080p resolution at a full frame rate of 30 fps. The camera is equipped with a 3.6mm fixed lens. Thanks to the built-in 18 IR LEDs, the camera can record even in complete darkness (0 lux) up to a distance of 49.2'. The recorded images can be stored on a microSD Class 10 UHS-1 (sold separately). The IP66 rated enclosure allows you to install the camera outdoors in extreme weather. - 1/3" CMOS sensor captures Full HD images in 1080p resolution at a full frame rate of 30 fps
- Built-in 18 IR LEDs let the camera to record even in complete darkness (0 lux) up to a distance of 49.2'
- IP66-rated enclosure allows you to install the camera outdoors in extreme weather
In the Box IQinVision IQR52NR-F9 R5 Series 2MP 1080p Indoor/Outdoor Bullet Camera with 3.6mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision IQR52NR-F9 R5 Series 2MP 1080p Indoor Outdoor Bullet Camera with 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQR52NR-F9 Specs | | | MegaPixels | 2 MP | | Maximum Resolution | 1920 x 1080 | | Video Max Frame Rate | 30 fps | | Video Compression | H.264 (Main Profile) and MJPEG | | Day/Night | Yes | | Sensitivity | Color: 0.1 lux, B&W: < 0.05 lux | | IR Range | Working Distance up to 49.2' (15 m), Wavelength: 850 nm, 18 LEDs | | Dynamic Range | 74 dB | | Shutter Speed | 1/10,000 sec | | Lens | 1/3" CMOS | | | | Motion Detection | Multi-zone (User Configurable) | | | | White Balance | Auto/Programmable | | Exposure | User Configurable | | Backlight Compensation | Auto | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II | | | | Power Type | PoE (802.3af Class 2), 12 VDC | | Power Consumption | 4 W | | | | Utilities | IQfinder, IQmanager, IQevent, Direct-To-Storage | | On-Camera IQapps | IQanalytics (IQinVision license required), exacqVision Edge (exacqVision SW license required), Agent Vi (AgentVi SW license required) | | System Integration | exacqVision Edge (exacqVision SW license required), Agent Vi (AgentVi SW license required) | | Storage | microSD Class 10 UHS-1 Card not included | | Analytics | Yes | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Ingress Protection Rating | IP66 | | Approvals | FCC, RoHS | | Dimensions (H x W x D) | 3.8 x 4.7 x 7.1" (96.6 x 119.2 x 181.1 mm) | | Weight | 10.58 oz (300 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
