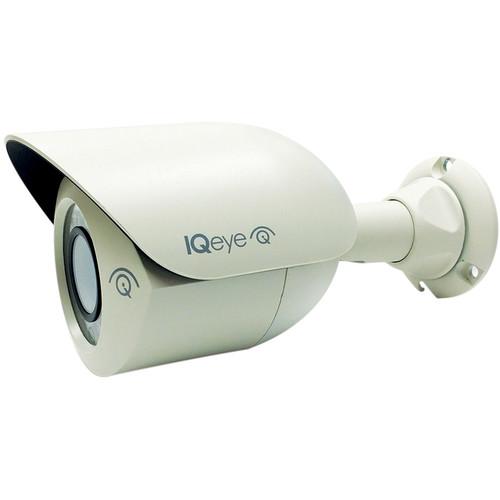

User Manual for IQinVision R5 Series IQR51NR 720p Indoor Outdoor Day Night Bullet Camera with 3.6mm Wide Angle Lens Click to enlarge the picture
Contents of the user manual for the IQinVision R5 Series IQR51NR 720p Indoor
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision R5 Series IQR51NR 720p Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description The R5 Series IQR51NR 720p Indoor/Outdoor Day/Night Bullet Camera with 3.6mm Lens from IQinVision provides multiple individually configured H.264 and simultaneous MJPEG streams. Featuring on-camera storage and built-in IR (up to 15m), this camera is suitable for retail, commercial, city and transportation applications. Dual encoders allow simultaneous viewing of both H.264 and MJPEG video streams, and shall conform to the ONVIF, and PSIA standards. The camera offers Lightgrabber II for enhanced image sensitivity and DTS (Direct-To-Storage) recording. Requiring low power the camera is PoE (IEEE 802.3af) compliant. The camera offers day/night functionality with high sensitivity for use in low light indoor/outdoor applications. - 720p HD resolution at a full frame rate of 30 fps
- H.264 main profile and MJPEG compression
- Built-in IR offers night time visibility up to 49.2'
- True day/night movable IR filter
- Power-Over-Ethernet, 12 VDC
In the Box IQinVision R5 Series IQR51NR 720p Indoor/Outdoor Day/Night Bullet Camera with 3.6mm Wide Angle Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision R5 Series IQR51NR 720p Indoor Outdoor Day Night Bullet Camera with 3.6mm Wide Angle Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQR51NR-F9 Specs | Compression | H.264 and MJPEG | | Lens | F9 Wide Angle Lens 3.6 mm | | H.264 Profile | Main | | Sensor | 1/3" CMOS | | JPEG Compression Quality Settings | User Configurable | | Shutter Speed | Auto/Programmable/Fixed | | Minimum Illumination | Color: 0.1 lux, B&W: <0.05 lux | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II | | Exposure | Auto/Manual | | White Balance | Auto/Manual/ATW | | Backlight Compensation | Auto | | IR Range | Sensor: 800 to 940 nm | | IR Range | Illuminator: Working Distance up to 15 m, Wavelength 850 nm, 18 LEDs | | Motion Detection | On/Off/By Schedule | | Recording | Time Lapse: User Configurable
Event Based: User Configurable | | Flip and Rotate | 180 Vertical | | On-Camera IQapps | IQanalytics, IQevent | | System Integration | ONVIF, PSIA, IQfinder, IQevent, IQmanager, Direct-to-Storage | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS, SNMP, UDP multicast, SMTP, Telnet | | Password Protection | Secure Multi-level | | Input Power | Power over Ethernet 802.3af Class 2, 12 VDC | | Power Consumption | < 4 W | | Lighting | 50 Hz/60 Hz Selectable | | Network Interface | RJ45 10Base-T/100Base-TX | | Ingress Protection Rating | IP66 | | Approvals | FCC, RoHS | | Temperature Range | 14 to 122˚F (-10 to 50˚C) | | Dimensions (H x W x D) | 3.75 x 4.09 x 7.13" (9.5 x 10.38 x 18.11 cm) | | Weight | 11.64 oz (330 g) |
