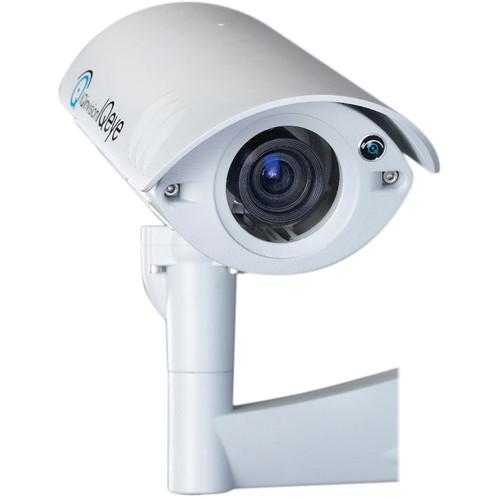

User Manual for IQinVision Sentinel H.264 2MP WDR 1080p Camera Click to enlarge the picture
Contents of the user manual for the IQinVision Sentinel H.264 2MP WDR 1080p
- Product category: Wired IP Cameras IQinVision
- Brand: IQinVision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IQinVision Wired IP Cameras
|
User manual for the IQinVision Sentinel H.264 2MP WDR 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IQinVision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IQinVision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IQinVision product will considerably shorten its lifespan!
|
Product description Capture full HD video at a rate of 30 fps and 2MP resolution images with Sentinel's H.264 2MP WDR 1080p Camera, a Power-over-Ethernet analytics-ready camera that is designed for outdoor and indoor use. This camera has a 1/3" CS type lens and sensor that can capture color video at a minimum illumination of .02 lux, and black-and-white video at a minimum illumination of < 0.05 lux.
Furthermore, the camera's alarm input and alarm output can integrate external devices, such as PA systems, glass-break detectors, PIR motion sensors, and more to enhance the camera's existing surveillance capabilities. Additionally, the Sentinel supports multi-zone motion detection and relies on H.264 and MJPEG video compression formats to transmit video. These space-saving codecs combined with selectable recording modes can help reduce storage space on a network video recorder or NAS server. In the Box IQinVision Sentinel H.264 2MP WDR 1080p Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IQinVision Sentinel H.264 2MP WDR 1080p Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIQinVision IQ862WE Specs | Video Format Output | NTSC, PAL | | Lens Type | 1/3" CS | | Megapixel Sensor | 2.0 | | Video Resolution | 1920 x 1080 | | Video Compression | H.264 and MJPEG | | Maximum Frame Rate | 30 fps | | Minimum Illumination | Color: .02 lux B&W: <0.05 lux | | IR Range | 800 to 940 nm | | Dynamic Range | 100 dB | | Shutter Speed | 1/20,000 sec | | Alarm Input / Output | 1 x alarm input
1 x alarm output | | Power | Power-over-Ethernet, Class 3, Aux 24 VAC and Aux 12 to 24 VDC | | Power Consumption | 8.0 W | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Compliance | PSIA, ONVIF | | Dimensions (H x W x D) | 9.57 x 4.88 x 15.36" (243.2 x 124.0 x 390.1 mm) | | Weight | 6.26 lb (2.84 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
