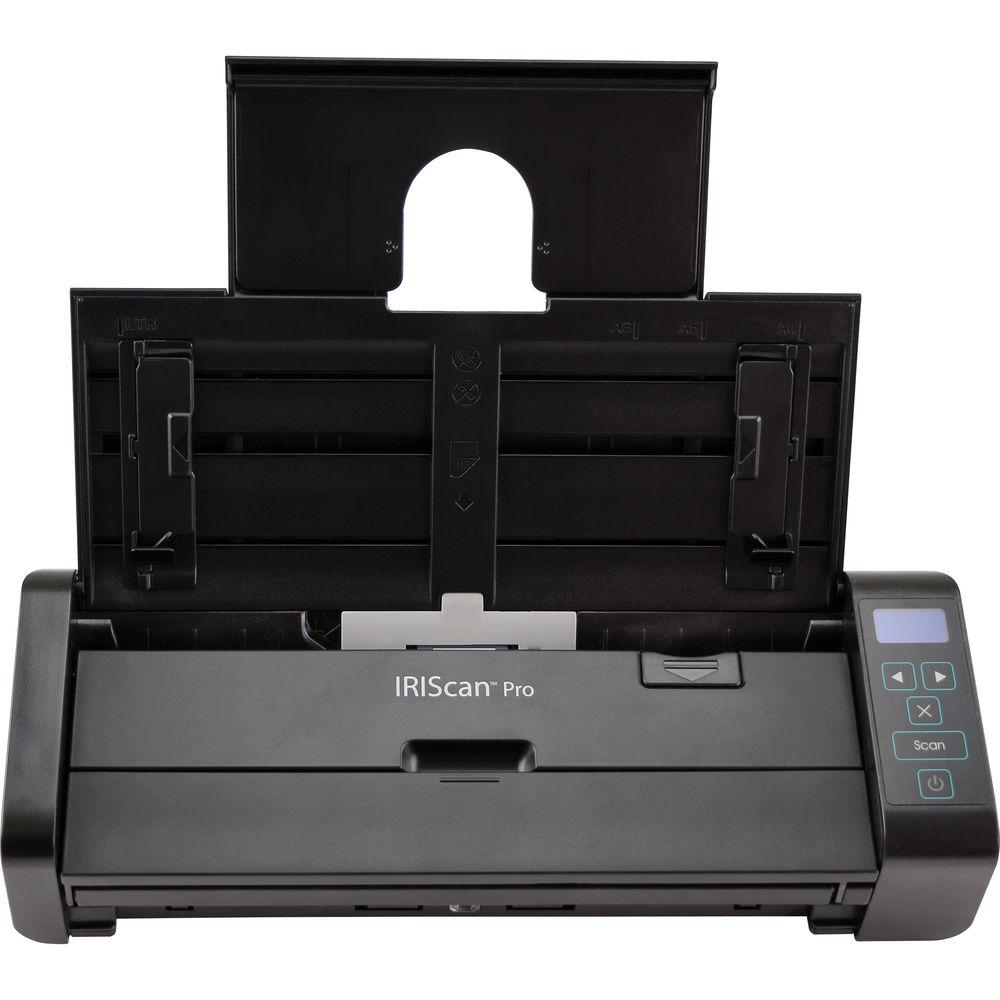

Product description Fast, feature-rich, and compact, the high-performing IRIScan Pro 5 Duplex Desktop Scanner from IRIS is meant to be a powerful option that will take up little space on your cramped desk. Able to work with a wide variety of media sizes, including business cards as small as 2 x 2" and legal-sized 8.5 x 14" paper, the 600 dpi IRIScan Pro 5 is an easy choice for nearly any of the most common documents, including invoices, receipts, credit cards, and more. Also, it is extremely fast with a rated speed of up to 23 ppm at 200 dpi and automatic duplexing that reaches 46 ipm. This is possible through the use of a 20-sheet automatic document feeder, which will even support a long page mode for items up to 118" in length. An ultrasonic sensor is present as well to help reduce the chances of double feeds.
On the front control panel of the scanner is a 1" OLED display to help you check status and change settings. Also, it has a Smart task button that can be set up to automatically scan, convert, and output the file exactly as you want, including the ability to save an audio file. The scanner is simple to operate with standard USB 2.0 connectivity and an AC adapter. Bundled with the scanner is a software suite that will dramatically improve functionality. This includes Readiris Corporate OCR that will help organize, convert, edit, and upload your documents to the cloud as well as provide OCR capabilities; Cardiris Corporate that will save business cards and automatically populate your favorite contact management application; and IRIScompressor Pro to reduce file sizes of all your scans. - A Contact Image Sensor (CIS) provides an optical resolution of 600 dpi with a choice of output resolutions between 75-600 dpi for sharp, detailed images.
- Works with media ranging in size from 2 x 2" to 8.5 x 14" as well as long documents up to 118" in length.
- Scan at speeds up to 23 ppm / 46 ipm in black & white at 200 dpi and 17 ppm / 34 ipm in color at 300 dpi.
- The 20-sheet automatic document feeder helps users easily scan batch jobs and multi-page documents. A special card slot is also available for scanning laminated cards.
- Ultrasonic sensor detects double feeds to prevent jams and errors.
- 1" OLED display shows status and a means to change settings directly on the scanner.
- A smart button can be programmed to automatically perform a variety of tasks with a single press of the button. This includes scanning, converting, and archiving or sharing the document.
- Scan to various file formats, including JPEG, PDF, Microsoft Office, audio, e-Book, and more.
- Recommended daily scanning volume of 1000 pages.
- TWAIN and WIA drivers support ensures compatibility with existing systems and software.
- Connects to a computer via a USB 2.0 connection and runs on an AC power supply.
- Readiris Corporate OCR software helps you convert and share your documents once they are scanned. This includes the ability to convert your documents into audio .wav files that you can listen to and share directly to various cloud services, including Microsoft SharePoint, Therefore, Microsoft Dynamics CRM, Salesforce, OneDrive, Google Drive, Box, Evernote, and Dropbox.
- Cardiris Corporate (Windows only) offers advanced business card recognition and organization. The scanner and work with up to 10 cards at once and will export directly to the software. The contacts can then be sorted and exported directly to your chosen contacts management tool, such as Microsoft Outlook, Google Contacts, Salesforce, Microsoft Dynamics CRM, and more.
- With IRISCompressor Pro users can create highly compressed PDFs and multi-page PDFs that are up to 20x smaller than standard documents.
- Additional Features:
- Scan long document mode (up to 118")
- Button manager (Windows only)
- Front and rear duto color detection
- Split image control
- Blank page separation
- 1D and 2D bar code detection and separation
- Punch hole removal
- Image noise canceling
- ENERGY STAR certified
UPC: 765010741830 In the Box IRIS IRIScan Pro 5 Duplex Desktop Scanner USB Cable AC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IRIS IRIScan Pro 5 Duplex Desktop Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIRIS 459035 Specs | | | Scan Sensor | Contact Image Sensor (CIS) | | Optical Resolution | 600 dpi | | Output Resolution | 75 dpi
100 dpi
150 dpi
200 dpi
300 dpi
400 dpi
600 dpi | | Color Depth | 24-bit | | | | Scan Speed | 200 dpi: 23 ppm / 46 ipm
300 dpi: 17 ppm / 34 ipm | | Duplex Scanning | Yes | | Multi-Feed Detection | Yes | | Duty Cycle | Daily: 1000 pages | | | | Paper Handling | Automatic document feeder
Card slot | | Media Size | 2 x 2" to 8.5 x 118" / 5 x 5 cm to 21.6 x 300 cm | | Media Weight | 7-110 lb / 27-413 gsm | | Media Capacity | ADF: 20 sheets | | | | Computer Interface | USB 2.0 (USB 3.0 compatible) | | Scan File Format | BMP
PNG
GIF
JPEG
PDF
TIFF
RTF
TXT
OCR
XPS
DOC
XLS
PPT
DOCX
XLSX
PPTX
HTML | | Scanner Drivers | TWAIN
WIA | | OS Compatibility | Windows
macOS/OS X | | | | Control Panel | 1" / 2.5 cm OLED display
Buttons | | Power Requirements | Input: 100-240 VAC, 50/60 Hz
Output: 24 VDC, 1.5 A | | Power Consumption | Maximum: 24 W
Ready: 7.5 W
Sleep: 2.5 W
Off: 0.3 W | | Operating Conditions | Temperature: 50 to 95°F / 10 to 35°C
Humidity: 10 to 85% | | Dimensions | 11.6 x 4 x 2.9" / 29.9 x 10.4 x 7.4 cm | | Weight | 2.2 lb / 1.5 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 14.9 x 7.2 x 7.0" |
