Product description - "What Is Precision?" iStarUSA BPN series: Trayless SAS/SATA HDD hot-swap rack - 4K video

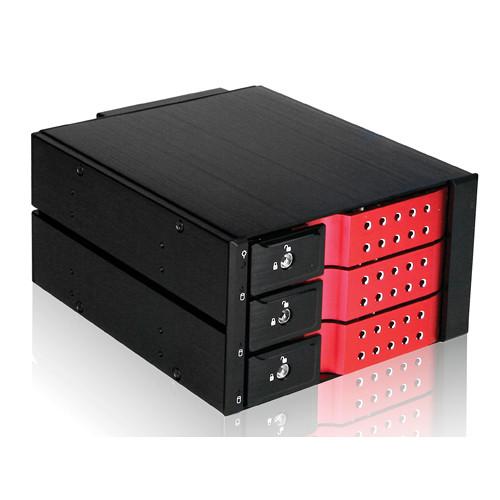

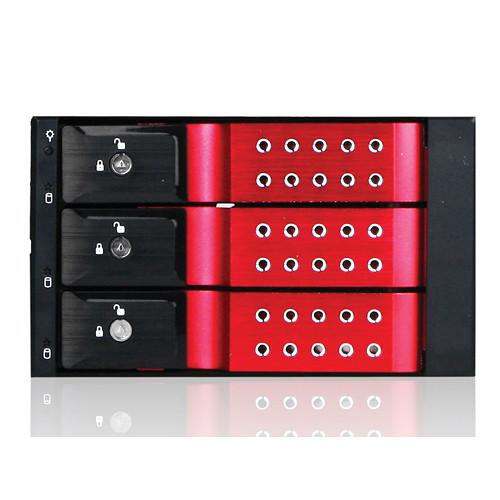

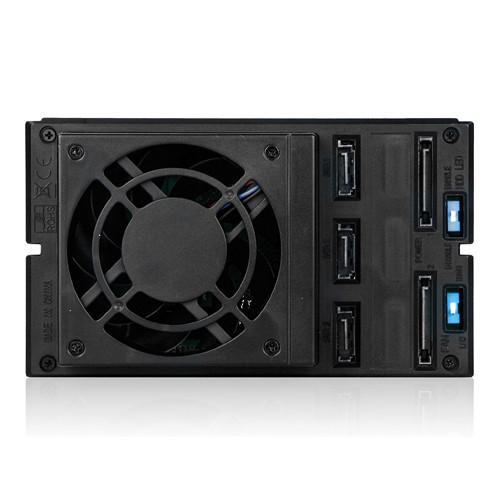

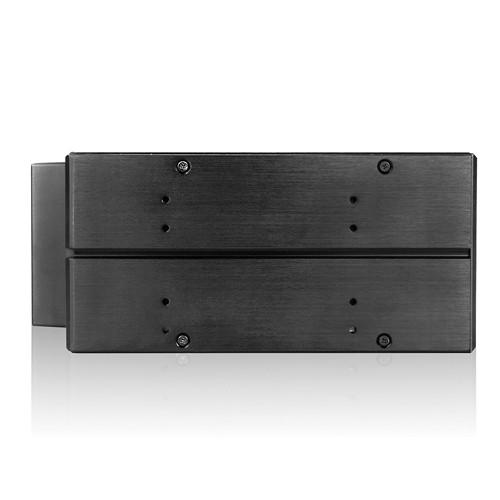

The red 2 x 5.25" to 3 x 3.5"SAS/SATA 6 Gb/s Trayless Hot-Swap Cage from iStarUSA supports transfer rate technology of 6.0 Gb/s (SATA I/II/III and SAS I/II) and is RAID capable. It comes with adjustable fan speed, ultra-quiet cooling fans and multi-function LED Indicator. Heat dissipation is enhanced by the full aluminum construction and a 2.75" (70mm) fan. The hot-swap cage features a SATA power connector, which increases compatibility with most power supplies. The metal key locks help secure the hard drives and prevent unauthorized access. To maximize your investment two standard 5.25" drive bays are converted into three 3.5"usable hard drive slots. - Support SAS I/II and SATA I/II/III hard drives
- Data transfer rate of up to 6.0 Gb/s
- Aluminum frame, designed for heavy-duty purpose
- Integrative shaping aluminum design for heat dissipation
- Aluminum front bezel with metal key lock mechanism for double safety
- 4TB hard drives compatible
- Removable fan cover for easy maintenance
- Multi-functional LED indication
- Supports hot-swap and RAID configuration (need an additional RAID controller)
- Low-noise design with fan-speed control

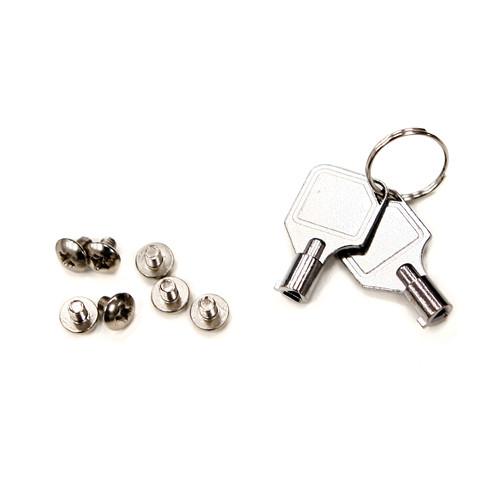

UPC: 846813017459 In the Box iStarUSA 2 x 5.25" to 3 x 3.5"SAS/SATA 6 Gb/s Trayless Hot-Swap Cage (Red) 7 x Screws 2 x Metal Keys 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA 2 x 5.25" to 3 x 3.5"SAS SATA 6 Gb s Trayless Hot-Swap Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA BPN-DE230SS-RED Specs | Standard Drive Bays | 5.25" (133.35 mm) Drives: 2x
Hot-Swap 3.5" (88.9 mm): 3x | | Hot-Swap HDD Type | 3.5" (88.9 mm) SAS I/II and SATA I/II/III | | Data Transfer Rate | Up to 6.0 Gb/s | | Indicators | Blue for power on
Purple for hard drive disk access | | Security | Key lock | | Material | Front Bezel, Handle & Main Chassis: Aluminum | | Hard Drives Compatible | 4 TB | | Compatible Chassis | | | Color of Front Bezel | Red | | Color of Main Chassis | Black | | Cooling Fan | 1 x 2.75" (70 mm) | | RoHS Compliant | Yes | | Dimensions (WxHxD) | 5.71 x 3.35 x 7.64" (145.03 x 85.09 x 194.05 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 2.39 lb | | Box Dimensions (LxWxH) | 10.05 x 7.35 x 4.9" |
