Product description - Claytek WN-series rackmount server cabinet - iStarUSA Group
- iStarUSA Proudly Introduces the WN2210

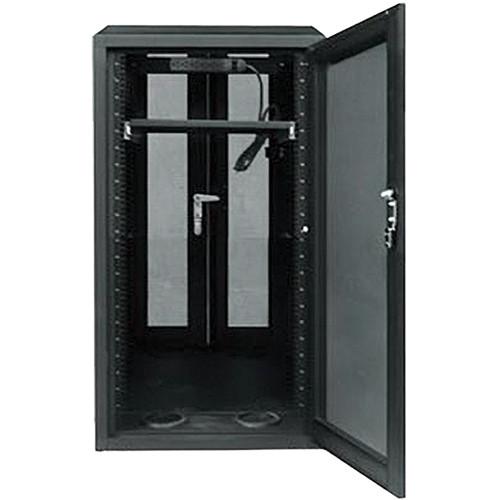

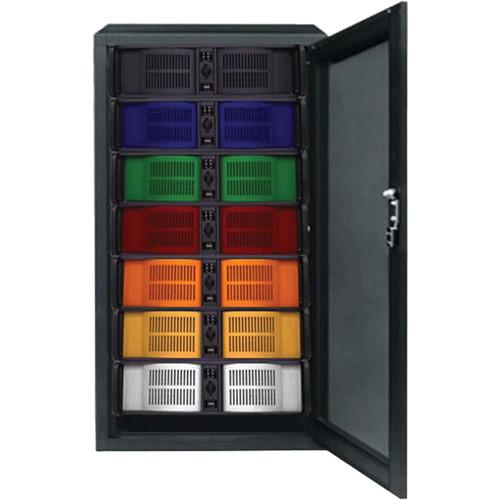

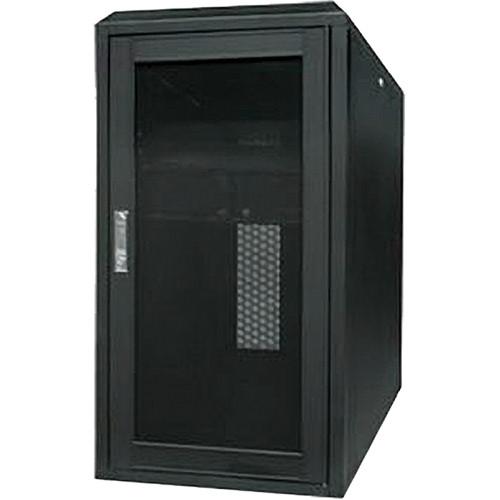

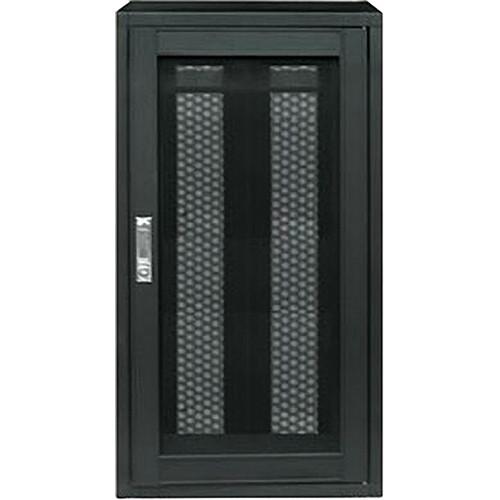

The 22U 1000mm Depth Rack-Mount Server Cabinet from iStarUSA is designed to hold your server components within its anodized aluminum, and steel frame. The fully adjustable interior rails allow you to configure the cabinet to suit your needs. Two cooling fans provide air circulation to help prevent overheating while vented doors promote maximum air flow.The cabinet includes a set of keys, and is lockable from all sides to prevent unauthorized access, or tampering. It also serves to keep dust off the various components held within. The front panel is silk screened for style, and all four casters are lockable. Additionally, the cabinet meets RoHS standards that restrict the use of hazardous materials during its construction. - Universal fit for most rackmount chassis and equipment

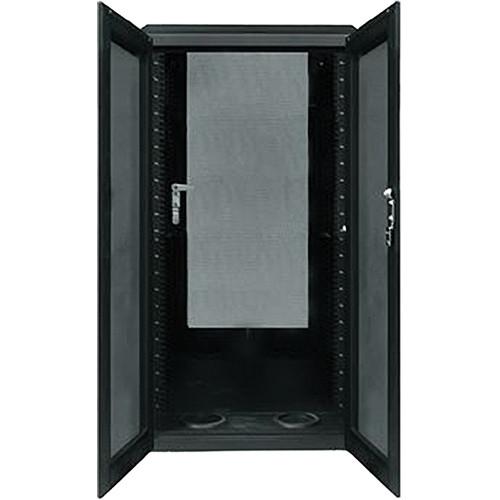

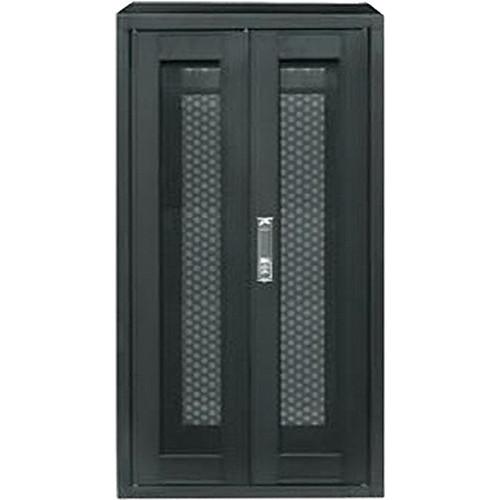

- Double rear doors provide convenience and take less space to open
- Front, rear, and side security lock to prevent unauthorized access to equipment and data
- Cable management; Cable entry provided via top/bottom and front/back

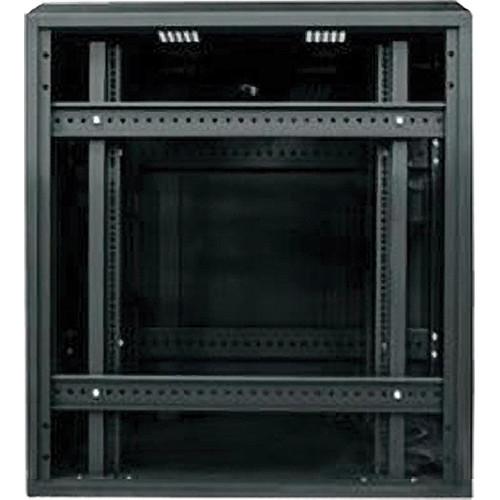

- Fully adjustable rails. Mounting rails are horizontally adjustable to ensure the best fit of your rack-mount chassis
- Vented doors provide maximum air flow

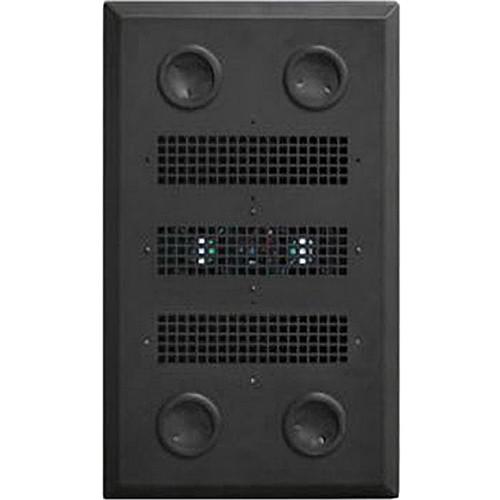

- 120mm AC cooling fans provide excellent air circulation
- Custom front panel door with silk screen option enhances product image and uniformity

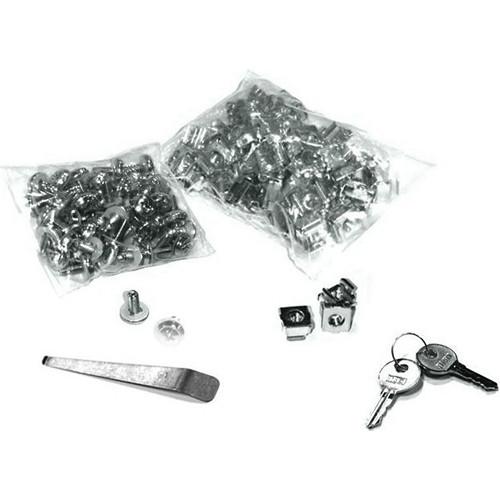

- Includes 50 sets of M5 mounting screws and cage nuts
UPC: 846813013338 In the Box iStarUSA 22U 1000mm Depth Rack-Mount Server Cabinet 50 x Sets of M5 Mounting Screws and Cage Nuts 2 x Keys Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA 22U 1000mm Depth Rack-Mount Server Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA WN2210 Specs | Form Factor | 22U | | Material | Anodized aluminum
Steel
Side Panel: SPCC t: 0.8 mm
Horizontal Rails: SPCC t: 2.0 mm
Vertical Rails:SPCC t: 2.0 mm
Top Panel: SPCC t: 1.2 mm | | Load Capacity | 2200 lb (998 kg) | | Supporting Chassis Depth | 34" (86 cm) and under | | Cooling System | One set of two fans; 120 VAC/60 Hz | | RoHS Compliant | Yes | | Casters | Four lockable | | Interior Dimensions | Height: 39.75" (101 cm)
Max Depth: 34.25" (87 cm) | | Exterior Dimensions | 23.5 x 47.75 x 39.5" (59.7 x 121.3 x 100.3 cm) | | | | Package Weight | 210.0 lb | | Box Dimensions (LxWxH) | 53.0 x 40.0 x 25.0" |
