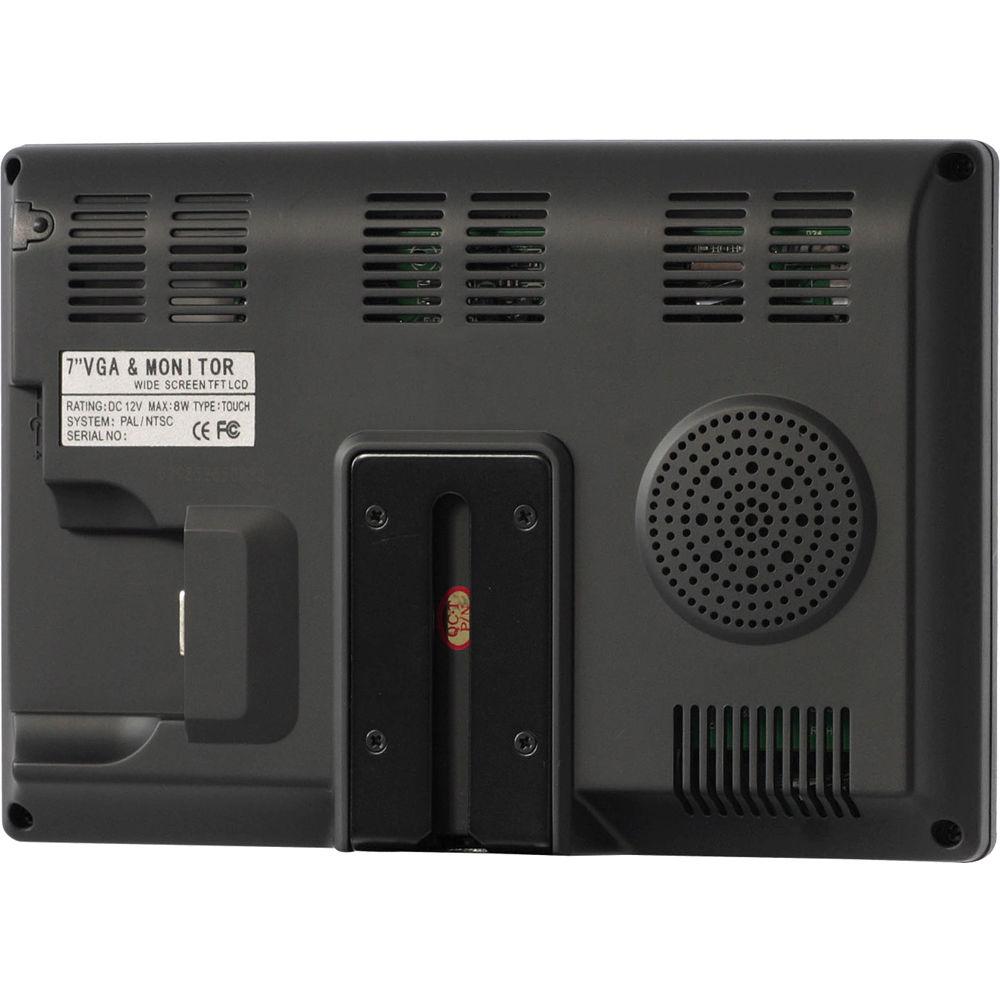

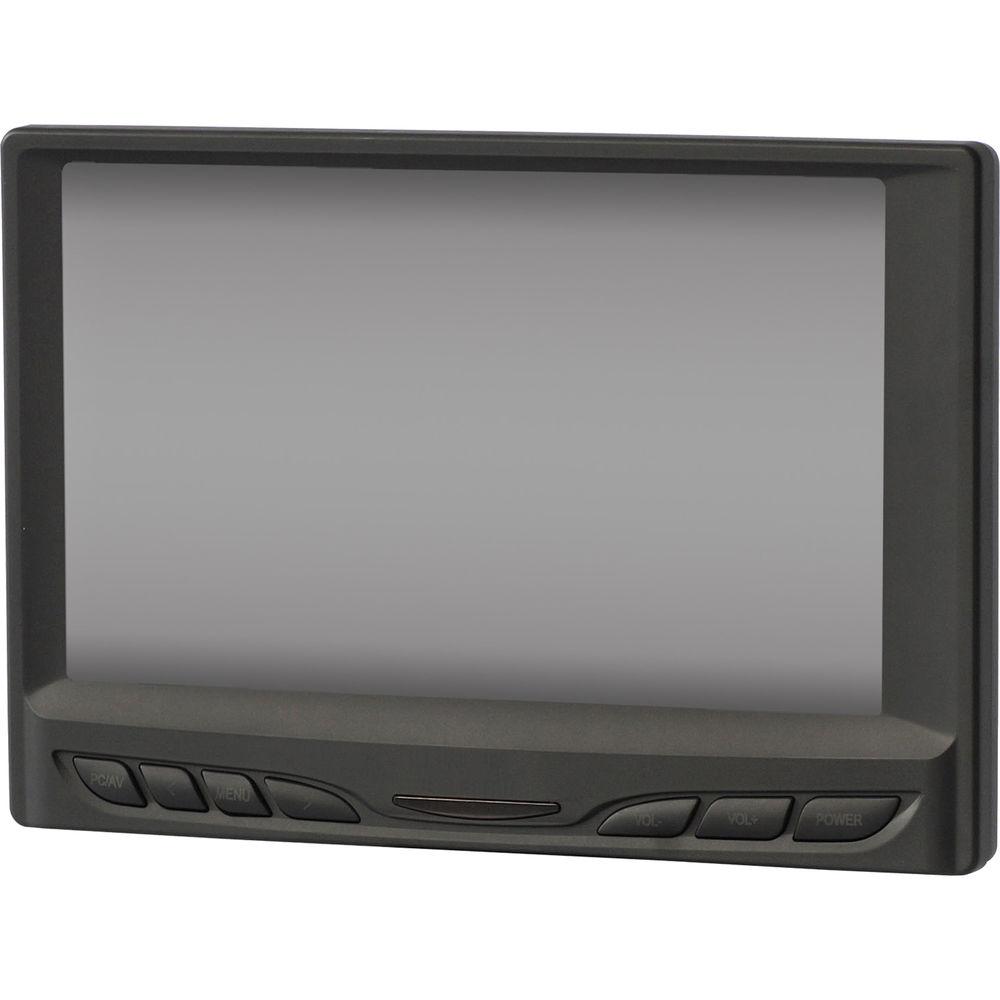

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More dwvayacqddftewdczxyrfewtczwx The 7" Touchscreen LCD from iStarUSA comes with two RCA video, one RCA audio, and one 15-pin VGA inputs. The touchscreen supports both Windows and Linux operating systems. The display comes with a built-in speaker, remote control, and multi-language OSD. The display offers viewing angles of 70°/70° (left/right) and 50°/70° (up/down) and offers a maximum brightness rating of 250 cd/m2. -
- LED lights
- Anti-glare surface treatment
- Analog RGB video input
- RCA video input (CVBS)
- Compatible with PC and Mac
- 15-pin D-sub, RCA A/V input, DC plug
- Four wires resistive touchscreen
- USB or RS-232 interface
- IR remote control
- Detachable stand
- Controls
- Power, Auto Adjustment, Source, Brightness up/down, 4 levels brightness by one button, OSD menu Advance: Adjust Brightness, Contrast, Saturation, Tint, Sharpness, Phase, Clock, Color Temperature, H position, V position, and OSD Language

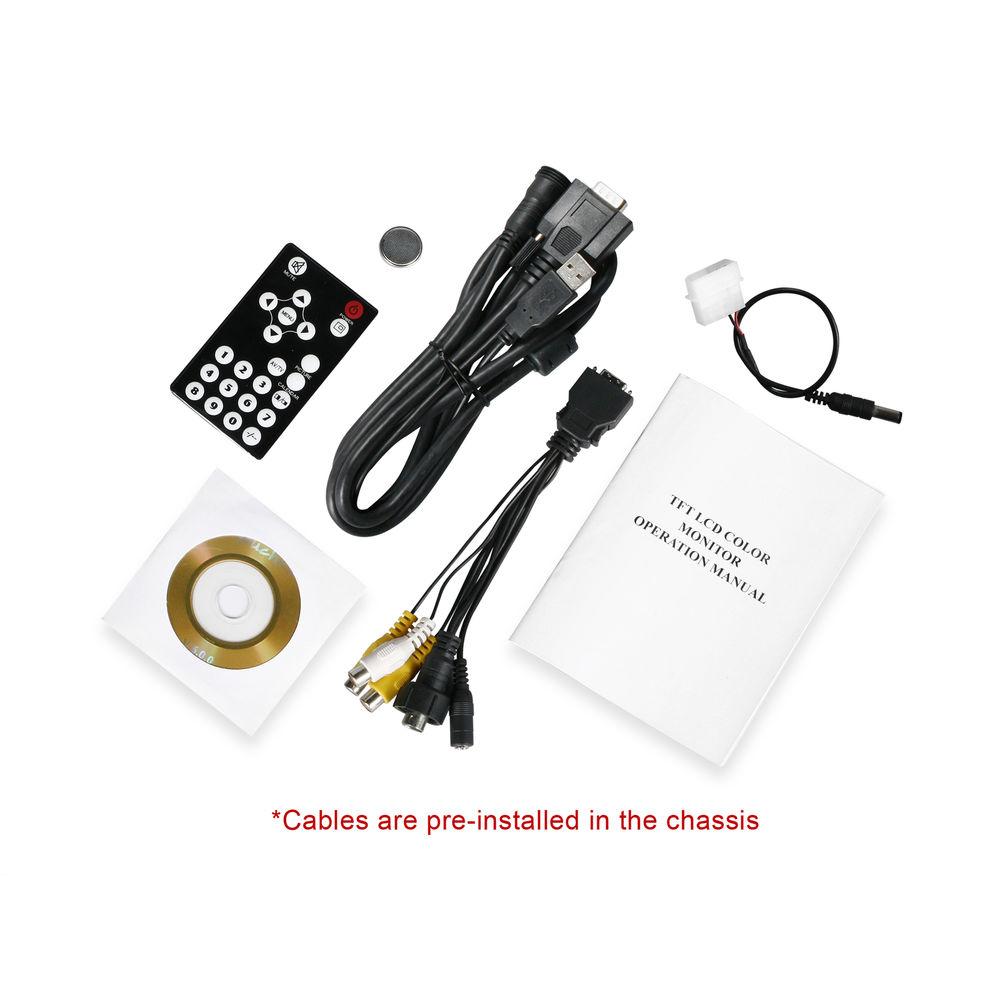

UPC: 846813031684 In the Box iStarUSA 7" Touchscreen LCD (Black) Power Cable 15-Pin D-Sub Cable Remote Control Driver CD Specification PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA 7" Touchscreen LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA DD-7LCD-629GL Specs | | | Size | 7" | | Screen Area | 6.00 x 3.60" / 15.24 x 9.14 cm | | Panel Type | TFT LCD | | Touchscreen | Yes | | Resolution | 800 x 480 | | Aspect Ratio | 5:3 | | Pixels Per Inch (ppi) | 133 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 500:1 | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 10 ms | | Viewing Angle | Horizontal: 120° (50/70)
Vertical: 140° (70/70) | | Dot Pitch | 0.0635 x 0.1905 mm | | | | Connectivity | 1 x VGA Input | | Built-In Speakers | Yes, 1 x 1 W | | Supported Languages | English
French
German
Russian
Simplified Chinese | | | | Power Consumption | 8 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.60 A | | Power Adapter Type | External | | DC Input Power | 12 VDC at 1200 mA | | | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 90% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | None | | Dimensions (W x H x D) | 7.2 x 4.9 x 1.3" / 18.3 x 12.4 x 3.3 cm |
