User Manual for iStarUSA 8-Bay Storage Server 2U Rackmount Case Click to enlarge the picture
Contents of the user manual for the iStarUSA 8-Bay Storage Server 2U Rackmount
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
 |
User manual for the iStarUSA 8-Bay Storage Server 2U Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|

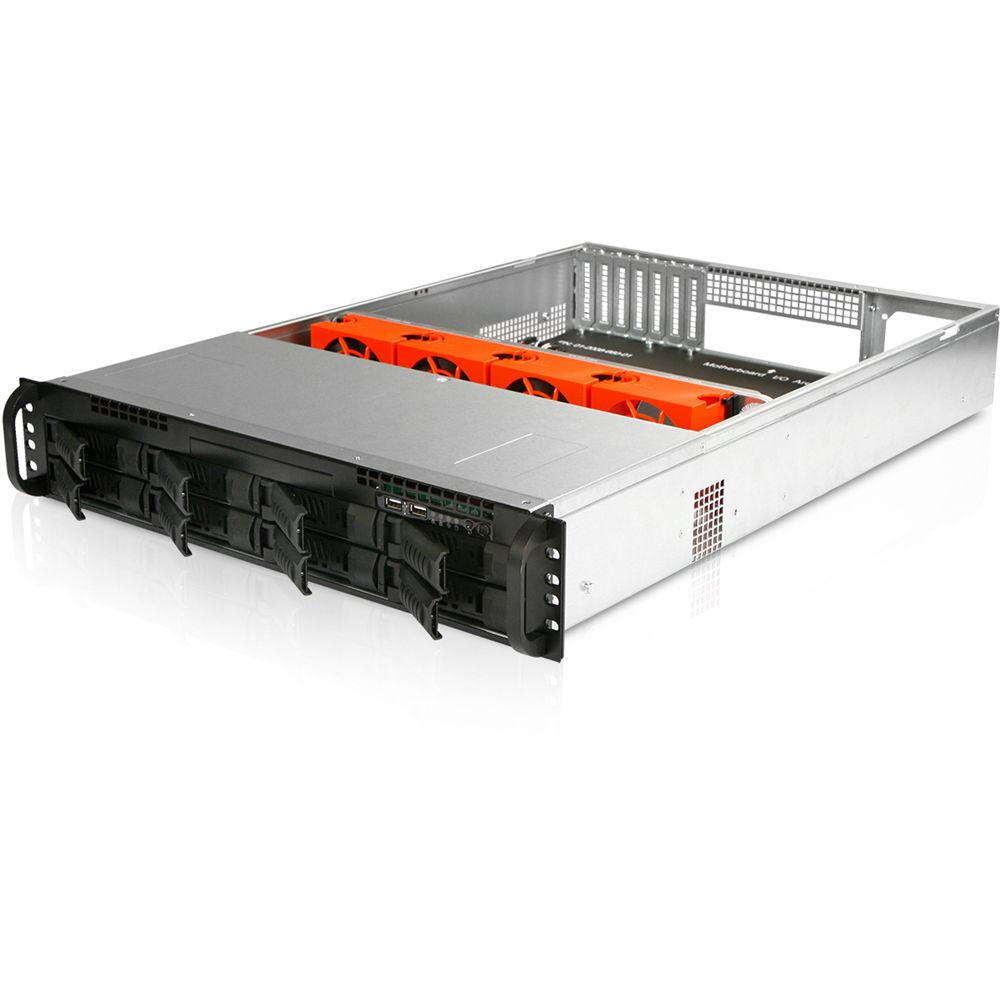

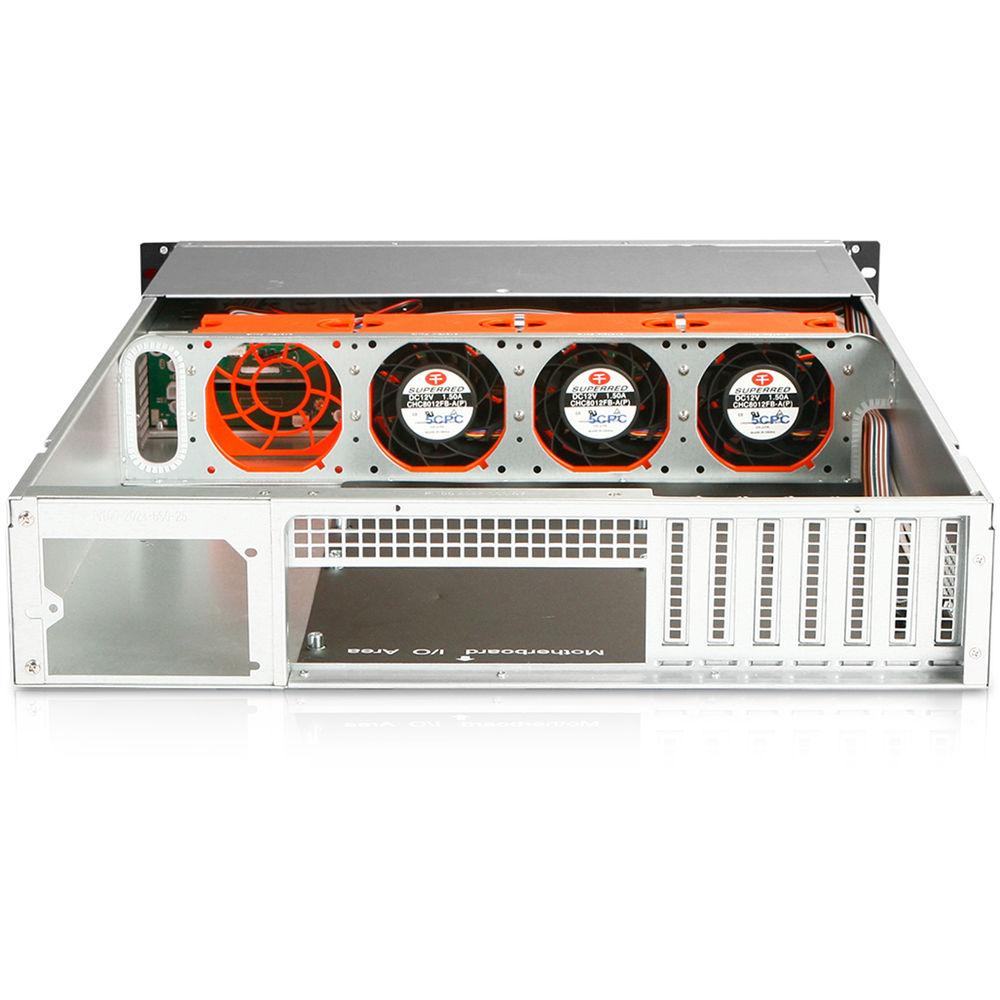

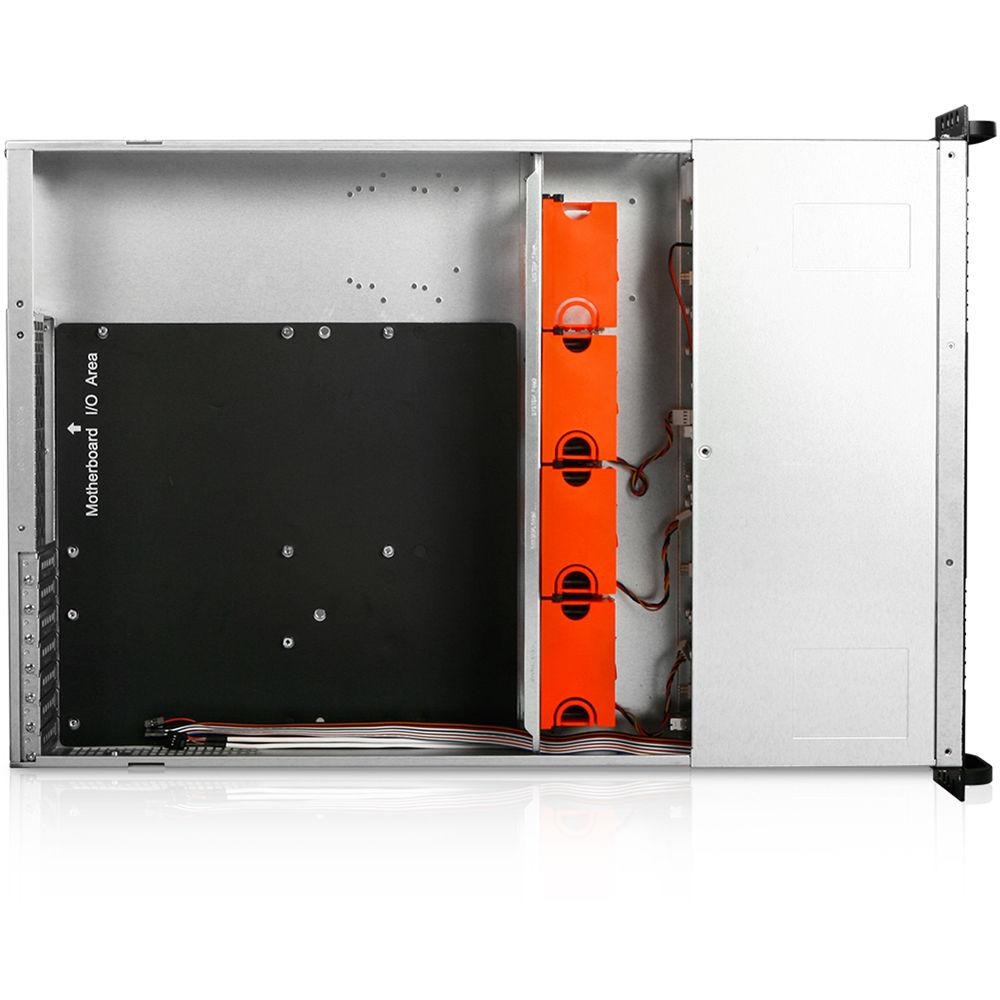

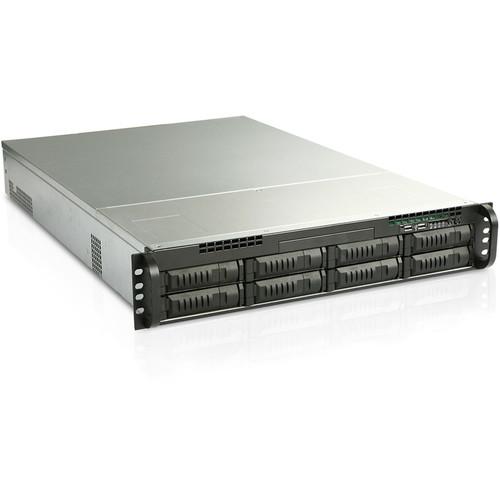

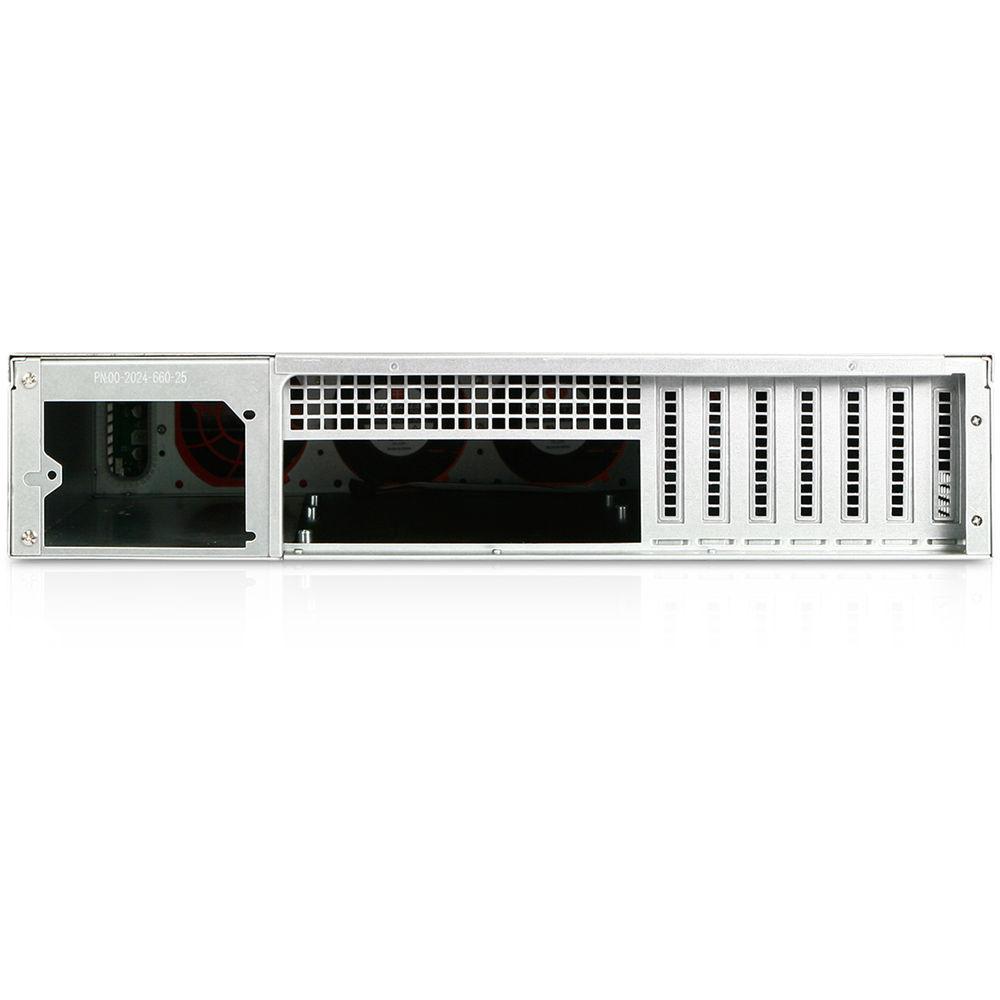

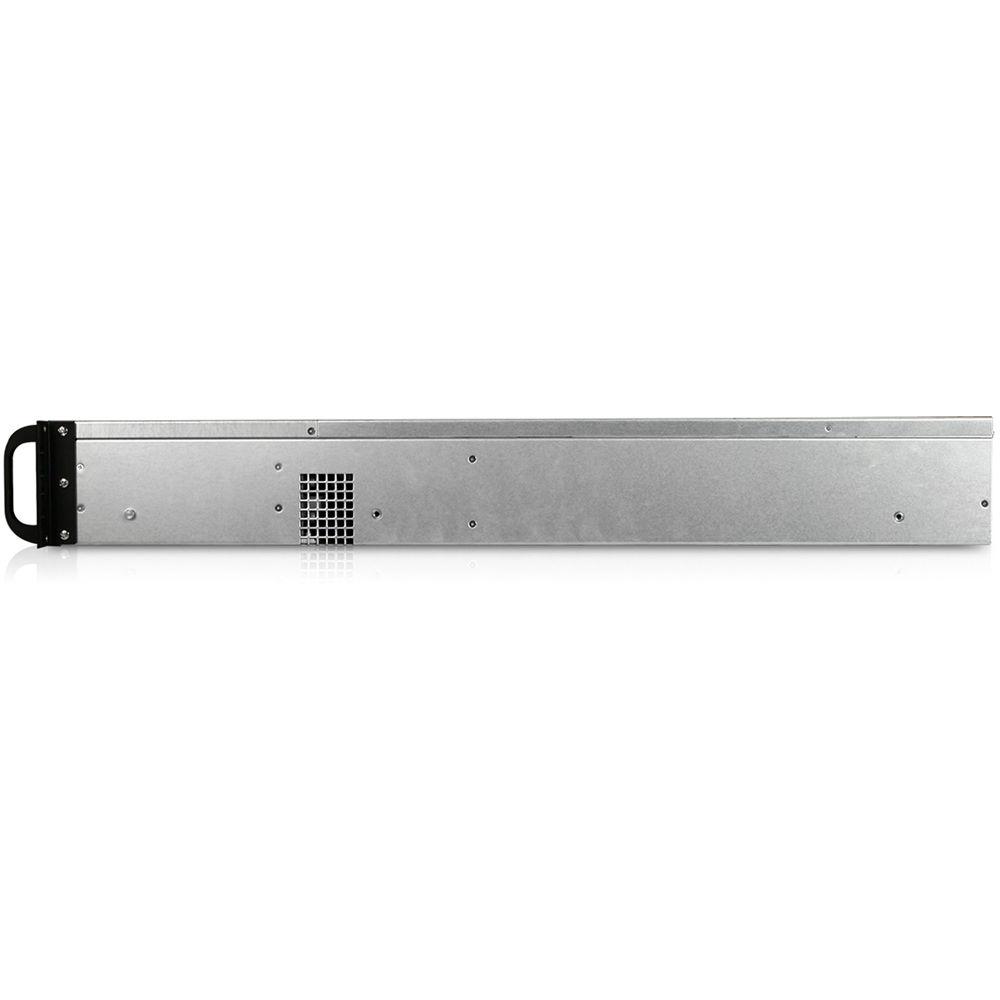

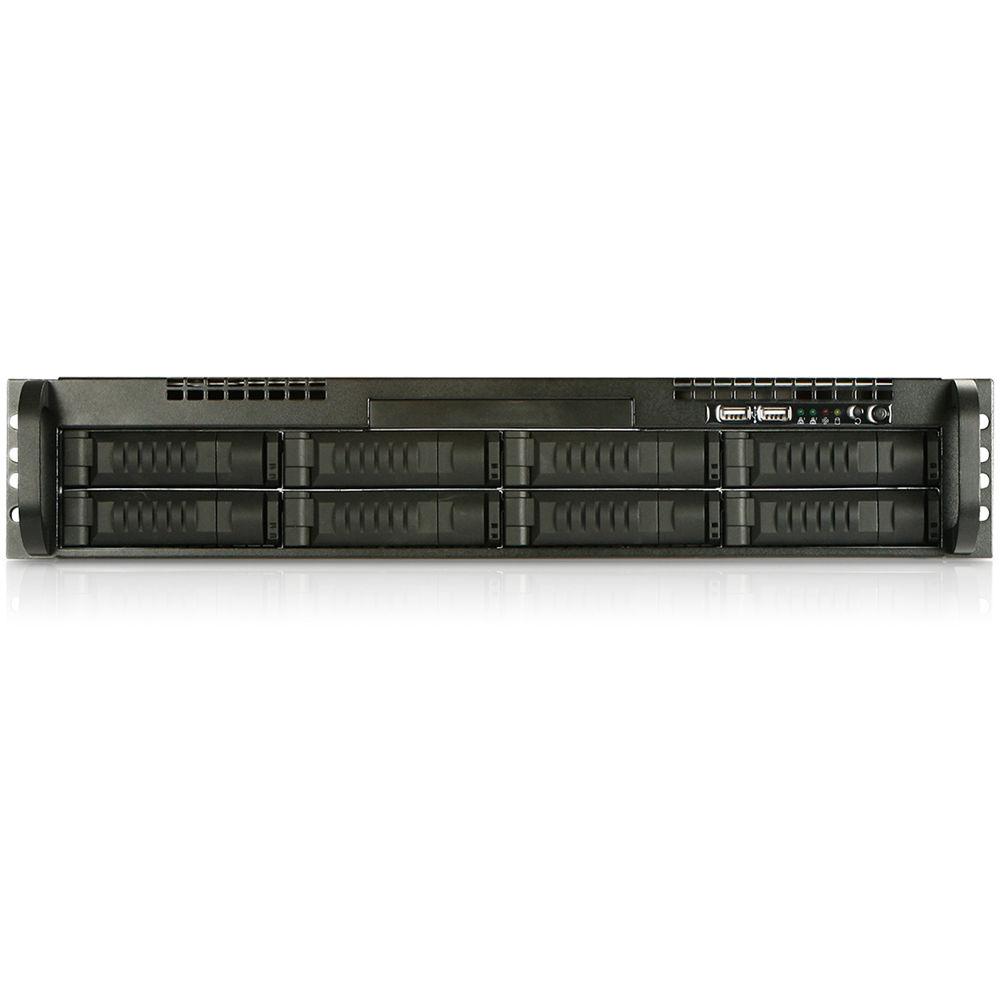

Product description The iStarUSA 8-Bay Storage Server 2U Rackmount Case is a server chassis that offers 8 bays to house your drives and supports motherboards in the size of extended-ATX, ATX, and micro-ATX. These bays are designed to hold 3.5" drives and feature hot-swapping capabilities. With a miniSAS backplane, you may install SAS and SATA hard drives into this chassis. Aside from the 3.5" drive bays, a 3.5" internal bay lets you equip this server with a ninth drive, while a 5.25" bay supports a slim optical drive. For external connectivity options, it sports two USB ports. To cool your components, iStarUSA includes three 80mm hot-swap cooling fans that spin at a rate of 6800 rpm. There are also seven low-profile expansion slots for your graphics and controller cards. Furthermore, a sliding rail kit is included so you can easily gain access to this 2U rackmount case when installed into your rack. - Fiber optical drive tray status indicator
- Power, LAN, and HDD LED indicators
- MiniSAS (SFF-8087) 6 Gb/s HDD backplane with SGPIO
- E-ATX, ATX, and micro-ATX motherboard support
- Supports SAS and SATA hard drives

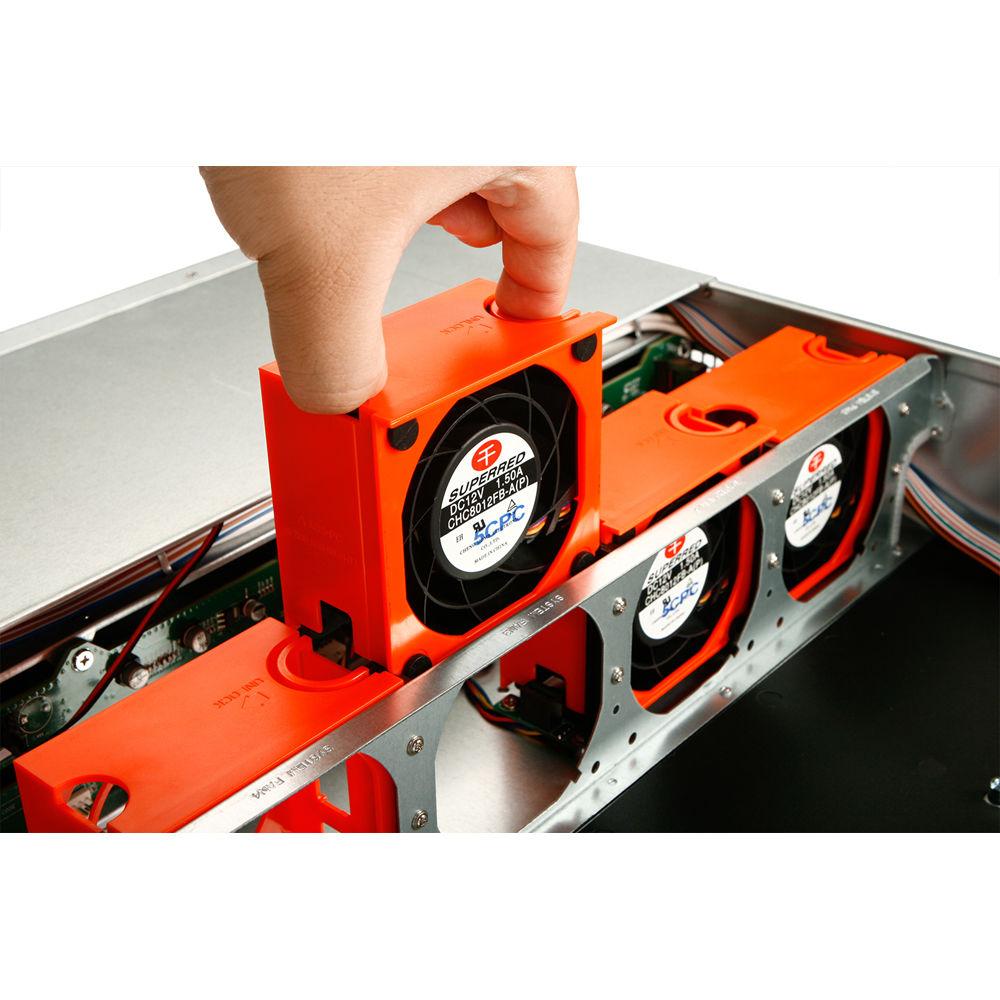

- 3 x 80mm hot-swappable PWM fans
UPC: 846813036221 In the Box iStarUSA 8-Bay Storage Server 2U Rackmount Case Sliding Rail Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA 8-Bay Storage Server 2U Rackmount Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA EX2M8 Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX | | External Drive Bays | 1 x Slim Optical Drive
2 x 2.5"
8 x 3.5" | | Internal Drive Bays | 1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Connections | 2 x USB Type-A (USB 2.0) | | | | Included Cooling | 3 x 80 mm | | | | Certifications | RoHS, as per Manufacturer | | | | Rack Form Factor | 2RU | | Material | Aluminum, Steel | | Dimensions (W x H x D) | 19.0 x 3.5 x 27.1" / 48.3 x 8.9 x 68.8 cm |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
