User Manual for iStarUSA 8" Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the iStarUSA 8" Touchscreen LCD Monitor
- Product category: Computer Monitors iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Computer Monitors
 |
User manual for the iStarUSA 8" Touchscreen LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|

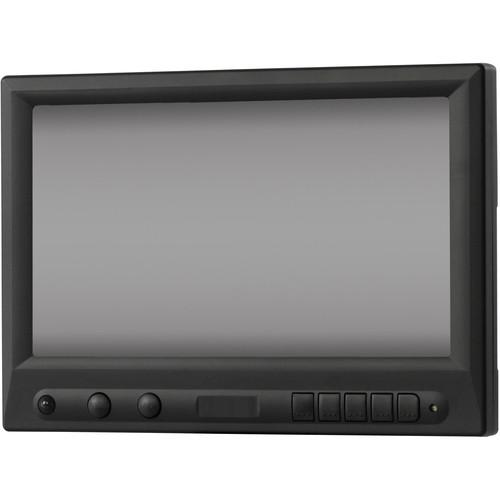

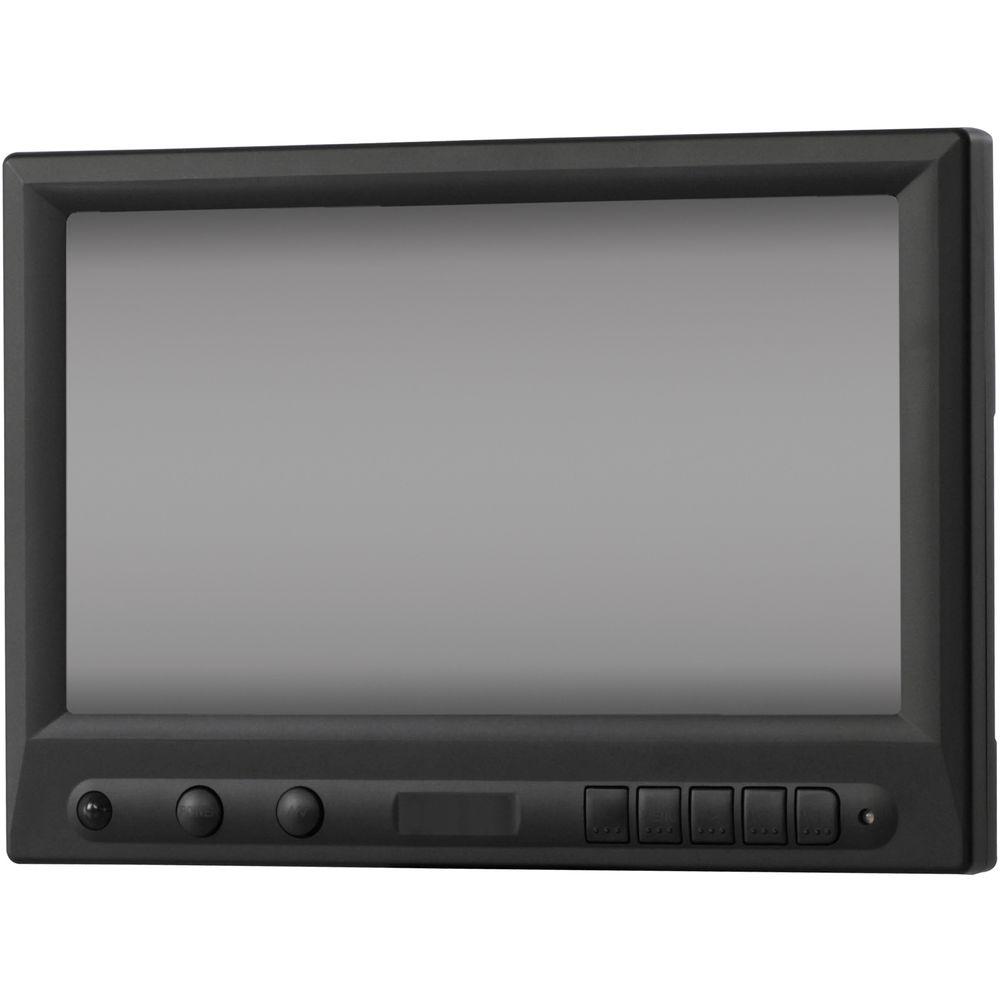

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 8" Touchscreen LCD Monitor from iStarUSA supports both Windows and Linux operating systems. The display comes with a built-in speaker, remote control, and multi-language OSD. The display offers viewing angles of 65°/65° (left/right) and 45°/65° (up/down) and offers a maximum brightness rating of 250 cd/m2. -
- LED lights
- a-Si TFT active matrix panel
- Anti-glare surface treatment
- Analog video input (RGB)
- RGB video input
- Compatible with Windows and Linux
- 15-pin D-sub, RCA A/V input, and DC plug
- Four wires resistive touchscreen
- USB or RS-232 interface
- IR remote control
- Detachable stand
- Controls
- Power, auto Adjustment, Source, Brightness up/down, 4 levels brightness by one button, OSD menu Advance: Adjust Brightness, Contrast, Saturation, Tint, Sharpness, Phase, Clock, Color Temperature, H position, V position, and OSD Language

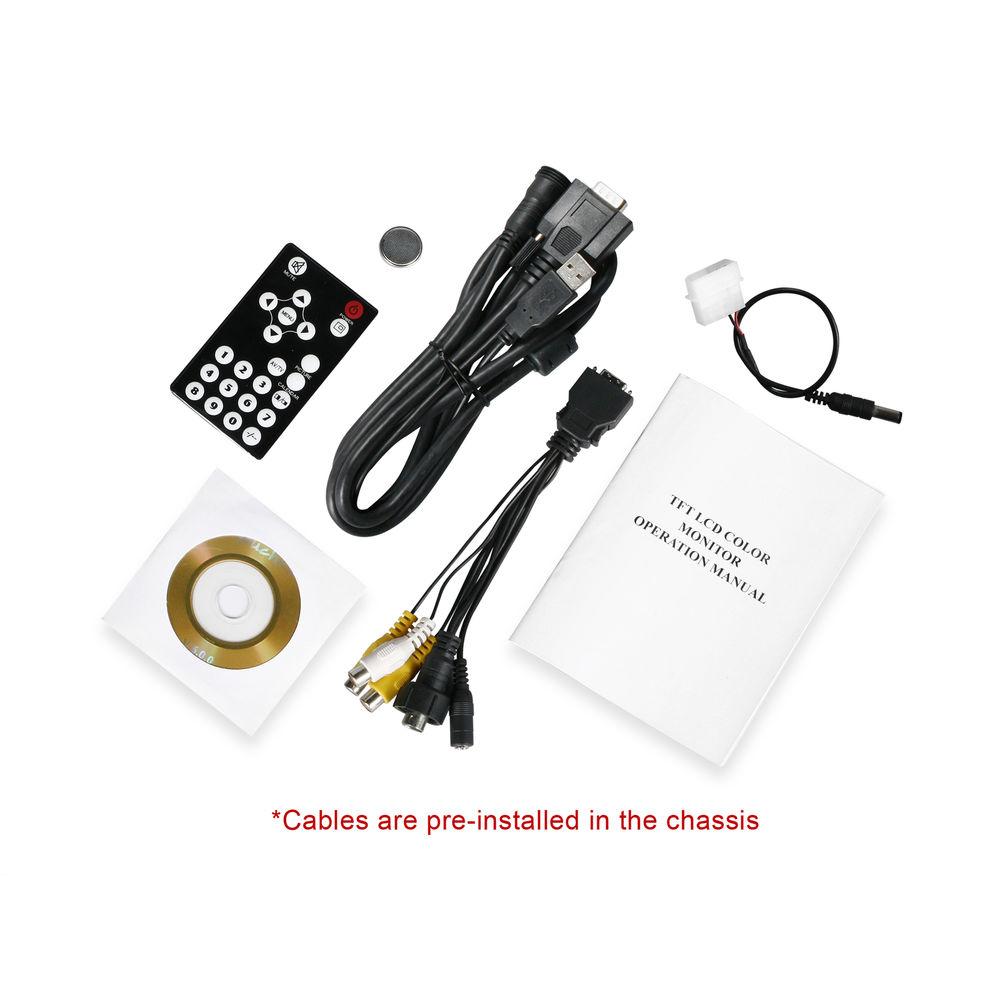

UPC: 846813031714 In the Box iStarUSA 8" Touchscreen LCD Monitor (Black) Power Cable 15-Pin D-Sub Cable Remote Control Driver CD Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA 8" Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA DD-8LCD-889GL Specs | | | Size | 8" | | Screen Area | 6.95 x 3.91" / 176.64 x 99.36 mm | | Panel Type | TFT LCD | | Touchscreen | Yes | | Resolution | 800 x 480 | | Aspect Ratio | 5:3 | | Pixels Per Inch (ppi) | 117 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 300:1 | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 15 ms | | Viewing Angle | Horizontal: 130° (65/65)
Vertical: 110° (45/65) | | Dot Pitch | 0.0736 x 0.2070 mm | | | | Connectivity | 1 x VGA | | Built-In Speakers | Yes, 1 x 1 W | | Supported Languages | English
French
German
Russian
Simplified Chinese | | | | Power Consumption | 8 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A | | Power Adapter Type | External | | DC Input Power | 12 VDC at 1500 mA | | | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Operating Humidity | 90% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | None | | Dimensions (W x H x D) | 8.1 x 5.9 x 1.2" / 20.6 x 15.0 x 3.0 cm |
