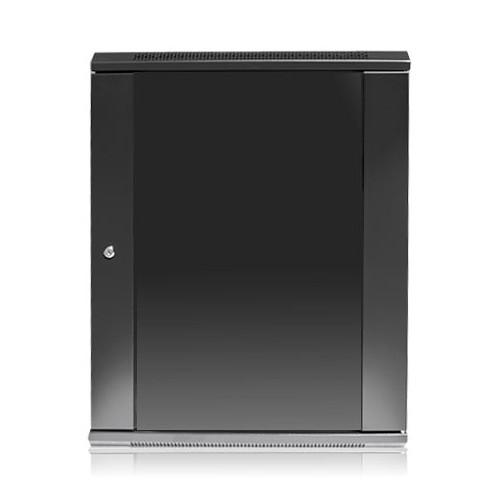

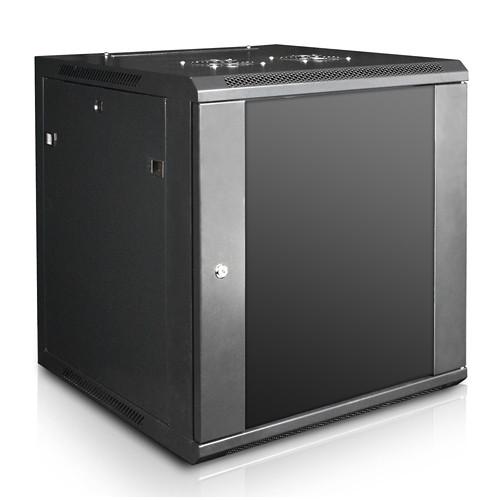

Product description The iStarUSA Claytek WM1560-KBR1U is a 15 RU wallmount server cabinet with a 1 RU sliding drawer designed to house standard 19" rack equipment on a wall or desk for technicians and engineers in network applications, lab and test systems, and server installations. It features a 22" chassis depth and supports rack rails for up to 15 RU of gear. The sliding drawer occupies 1 RU and offers space for a keyboard, mouse, and other accessories. The welded steel frame is pre-assembled for efficient integration into your existing setup. Its heat-treated glass front door can be configured to open from either side and utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management, and removable locking side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating. - Wallmount Server Cabinet (600mm, 15 RU) The Claytek Wallmount Server Cabinet (600mm) from iStarUSA is an elegant and secure 15 RU deep, wall mountable or standalone storage option for your precious equipment. This unit comes pre-assembled, and its sturdy and rugged welded frame features a weight capacity of up to 130 pounds.
Partially vented frames with dual AC cooling fans (optional) allow consistent airflow keeping the inside of the cabinet temperature within safe limits. A heat-treated enforced glass front door features a security lock to keep your gear safe. Additionally, the cabinet has removable side panels with handy latches for easy equipment access and maintenance. 3-Way cutouts at the top, bottom, and rear ensure sufficient options for running cables.
A powder coated surface meets the IP20 Protection Grade standard for prevention against degreasing, acidification, phosphor, and static electricity. Highly Sustainable - Powder coated surface offers prevention against degreasing, acidification, phosphor, and static electricity
- Heat-treated glass door provides extra strength and allow silkscreen logos, marks, and labels to boost product image

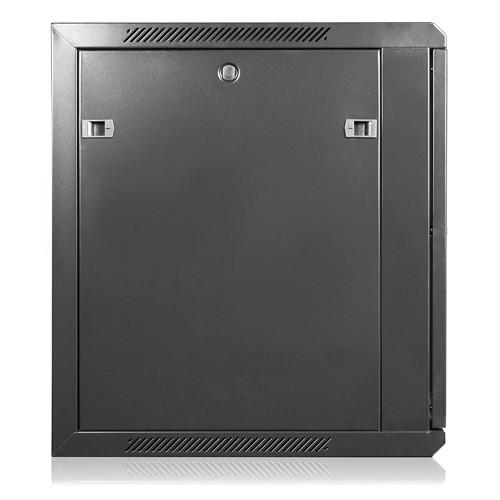

Easy to Use - Removable, lockable side panels with handy latch
- Desktop standalone or wall mountable; comes with wall mount bar
Robust Steel - SPCC High-quality cold roll steel construction for ensured durability
- 2 mm thick steel posts with 1.2 mm enclosure

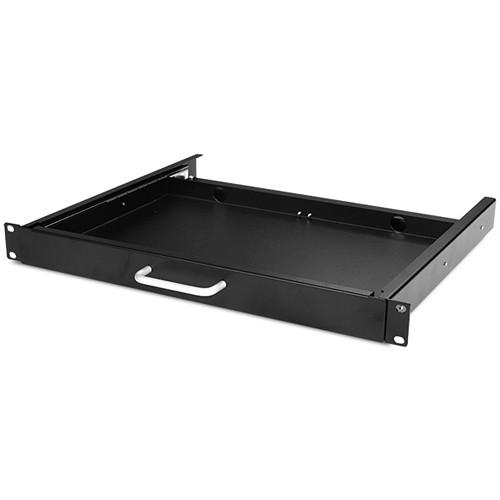

Compliance UPC: 846813013222 - WA-KBR-1U 1 RU Sliding Drawer The iStarUSA WA-KBR-1U is a 1 RU sliding drawer designed to hold non-rackmount devices for audio engineers, A/V technicians, and system installers in recording studios, A/V racks, and server rooms. It easily installs in standard 19" equipment racks. Its sturdy cold-rolled steel construction provides a 22 lb weight capacity for items such as a mouse, keyboard, dongles, adapters, and more.
- Sturdy 1.6mm cold-rolled steel construction
- Compatible with 19" equipment racks
- Holds non-rackmount devices such as a mouse, keyboard, tools, dongles, adapters, and accessories
- Easy and quick installation
UPC: 846813036269 In the Box Bundle Items Wallmount Server Cabinet (600mm, 15 RU) vzexbvcfwdrewatwvqzxvuavadzu - Limited Lifetime Warranty
WA-KBR-1U 1 RU Sliding Drawer vzexbvcfwdrewatwvqzxvuavadzu
Also Includes - M6 Mounting Screws and Cage Nuts
Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA Claytek WM1560-KBR1U Wallmount Server Cabinet with 1 RU Sliding Drawer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wallmount Server Cabinet (600mm, 15 RU)
| Rack Space | 15 RU | | Material | Posts: 2 mm SPCC High-quality Cold Roll Steel

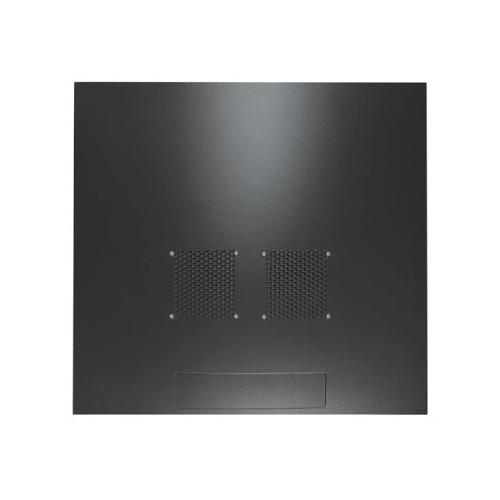

Enclosure: SPCC 1.2 mm | | RoHS Compliant | Yes | | Load Capacity | 130 lb (59 kg) | | Supported Chassis Depth | 22" (55.9 cm) and under | | Internal Dimensions | Depth: 22" (55.9 cm) max | | Cooling | Optional 2 x 120 mm 120 VAC fan can be installed on the top (p/n: WA-FANAC120) | | Dimensions (WxHxD) | 23.6 x 30.3 x 23.6" (60 x 77 x 60 cm) | | | | Box Dimensions (LxWxH) | 32.0 x 26.0 x 26.0" | - WA-KBR-1U 1 RU Sliding Drawer
| Rack Height | 1 RU | | RoHS Compliance | Yes | | Construction Material | SPCC 1.6 mm cold-rolled steel | | Dimensions (W x H x D) | 19.0 x 1.7 x 15.4" / 483 x 44 x 390 mm | | Weight Capacity | 22 lb / 10 kg | | | | Box Dimensions (LxWxH) | 20.6 x 18.0 x 2.5" |
