iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet

Search your instruction manual in PDF to download

User Manual for iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray

Click to enlarge the picture
iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray Contents of the user manual for the iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet
  • Product category: Rack Furniture iStarUSA
  • Brand: iStarUSA
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for iStarUSA Rack Furniture

iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray
User manual for the iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any iStarUSA product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!



Product description

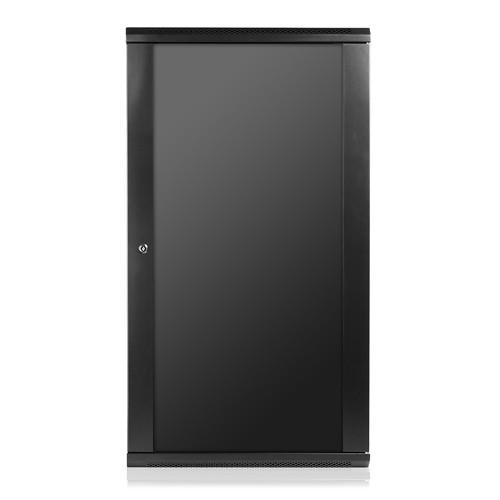

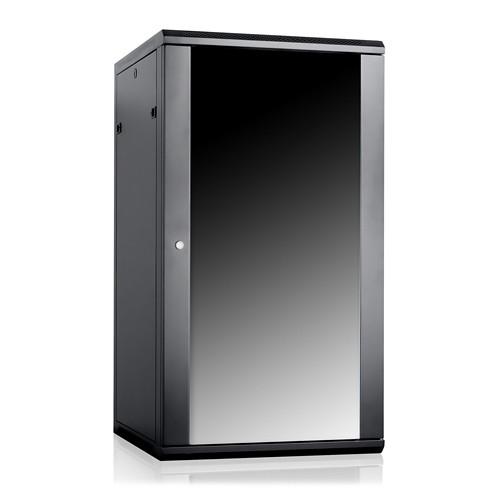

The iStarUSA Claytek WM2260-SFH25 is a 22 RU wallmount server cabinet with a 1 RU supporting tray designed to house standard 19" rack equipment on a wall or desk for technicians and engineers in network applications, lab and test systems, and server installations. It features a 22" chassis depth and supports rack rails for up to 22 RU of gear. The supporting tray occupies 1 RU and offers space for non-rackmountable devices. The welded steel frame is pre-assembled for efficient integration into your existing setup. Its heat-treated glass front door can be configured to open from either side and utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management, and removable locking side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating.
  • Wallmount Server Cabinet (600mm, 22 RU) The Claytek Wallmount Server Cabinet (600mm) from iStarUSA is an elegant and secure 22 RU deep, wall mountable or standalone storage option for your precious equipment. This unit comes pre-assembled, and its sturdy and rugged welded frame features a weight capacity of up to 130 pounds.

    Partially vented frames with dual AC cooling fans (optional) allow consistent airflow keeping the inside of the cabinet temperature within safe limits. A heat-treated enforced glass front door features a security lock to keep your gear safe. Additionally, the cabinet has removable side panels with handy latches for easy equipment access and maintenance. 3-Way cutouts at the top, bottom, and rear ensure sufficient options for running cables.

    A powder coated surface meets the IP20 Protection Grade standard for prevention against degreasing, acidification, phosphor, and static electricity.

    Highly Sustainable

    • Powder coated surface offers prevention against degreasing, acidification, phosphor, and static electricity
    • Heat-treated glass door provides extra strength and allow silkscreen logos, marks, and labels to boost product image

    Easy to Use

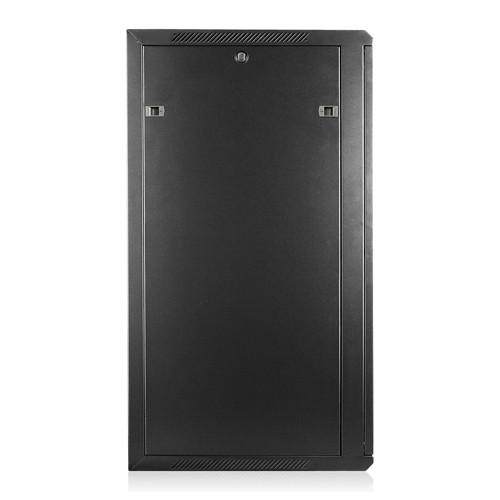

    • Removable, lockable side panels with handy latch
    • Desktop standalone or wall mountable; comes with wall mount bar

    Robust Steel

    • SPCC High-quality cold roll steel construction for ensured durability
    • 2 mm thick steel posts with 1.2 mm enclosure

    Compliance

    • RoHS Compliant
    UPC: 846813013239

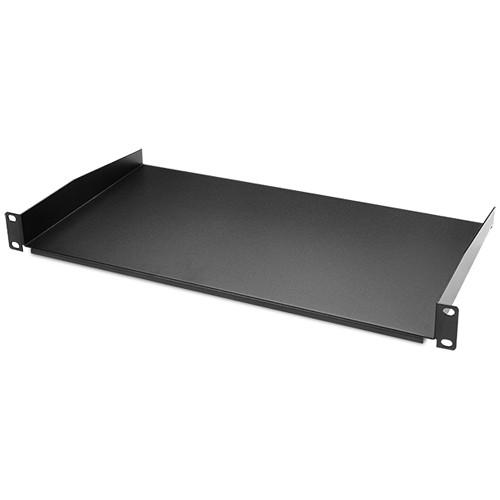

  • WA-SFH25B 1 RU Supporting Tray The iStarUSA WA-SFH25B is a 1 RU supporting tray designed to hold non-rackmount devices for audio engineers, A/V technicians, and system installers in recording studios, A/V racks, and server rooms. It features a depth of over 9" and fits in standard 19" equipment racks. Its sturdy cold-rolled steel construction provides a 33 lb weight capacity for items such as video monitors, converters, adapters, and more.
    • Sturdy 1.5mm cold-rolled steel construction
    • Compatible with 19" equipment racks
    • Occupies 1 RU of space
    • Holds non-rackmount devices such as a monitor, mouse, keyboard, tools, half-rack preamps, and accessories
    • Depth of over 9"
    • Easy and quick installation
    UPC: 846813036191
In the Box Bundle Items Wallmount Server Cabinet (600mm, 22 RU) rtfuwewqtywaareyyrcsztdbcytuaeqys
  • Limited Lifetime Warranty
WA-SFH25B 1 RU Supporting Tray rtfuwewqtywaareyyrcsztdbcytuaeqys
  • Limited 1-Year Warranty

Also Includes

  • M6 Mounting Screws and Cage Nuts
Table of Contents




Upload User Manual

Have you got an user manual for the iStarUSA Claytek WM2260-SFH25 Wallmount Server Cabinet with 1 RU Supporting Tray in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Wallmount Server Cabinet (600mm, 22 RU)
    Rack Space 22 RU
    Material Posts: 2 mm SPCC High-quality Cold Roll Steel
    Enclosure: SPCC 1.2 mm
    RoHS Compliant Yes
    Load Capacity 130 lb (59 kg)
    Supported Chassis Depth 22" (55.9 cm) and under
    Internal Dimensions Depth: 22" (55.9 cm) max

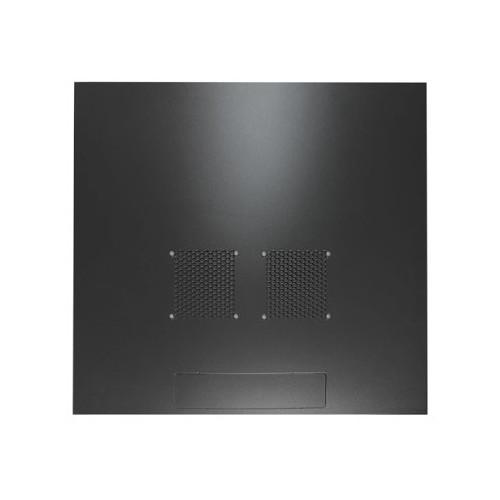

    Cooling Optional 2 x 120 mm 120 VAC fan can be installed on the top (p/n: WA-FANAC120)
    Dimensions (WxHxD) 23.6 x 42.5 x 23.6" (60 x 108 x 60 cm)
    Box Dimensions (LxWxH) 97.0 x 40.0 x 32.0"
  • WA-SFH25B 1 RU Supporting Tray
    Rack Height 1 RU
    RoHS Compliance Yes
    Construction Material SPCC 1.5 mm cold-rolled steel
    Dimensions (W x H x D) 19.0 x 1.7 x 9.8" / 482 x 44 x 250 mm
    Weight Capacity 33 lb / 15 kg
    Box Dimensions (LxWxH) 20.5 x 11.5 x 4.0"
