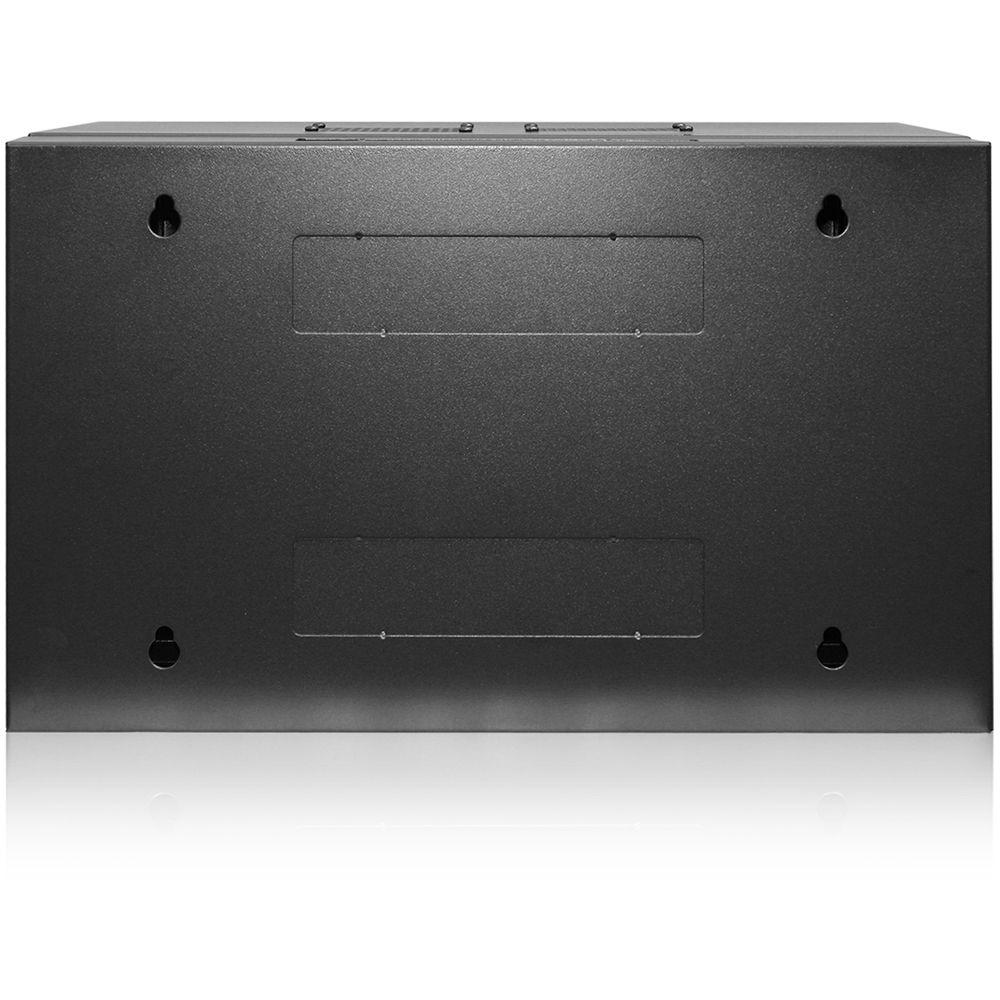

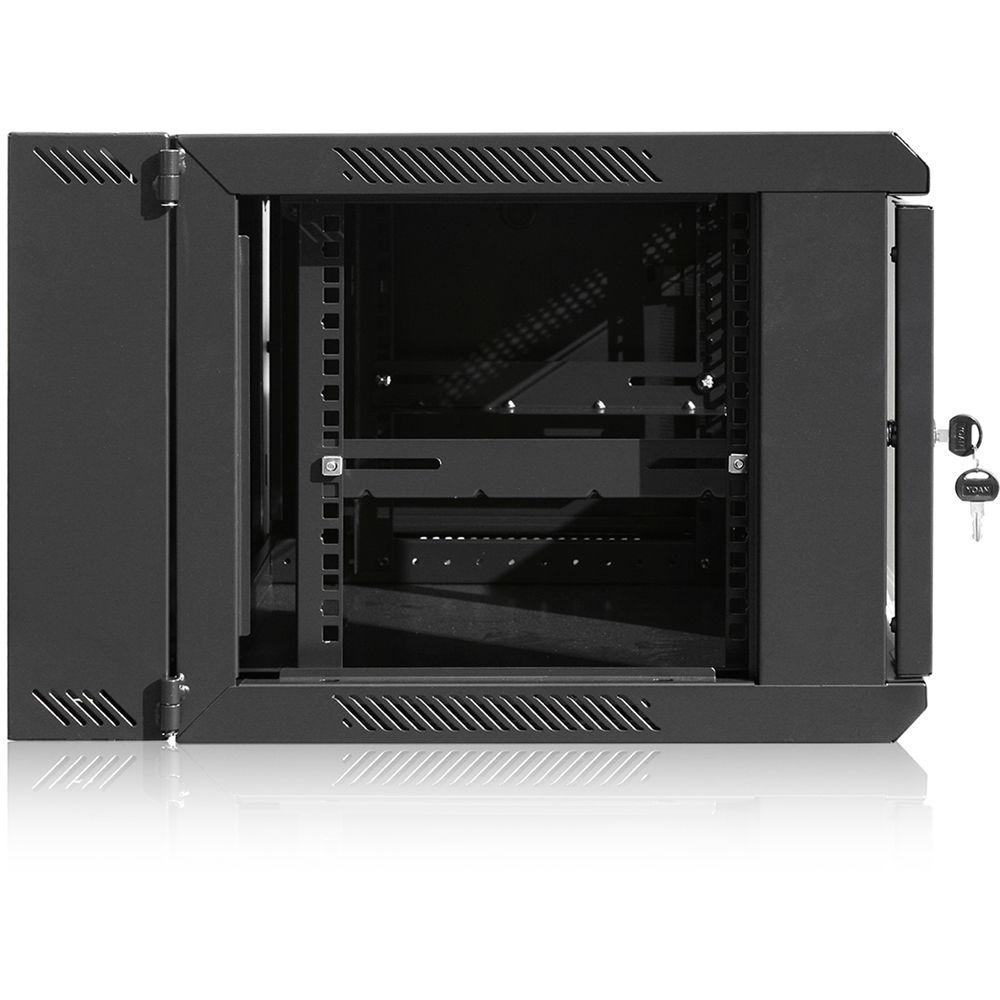

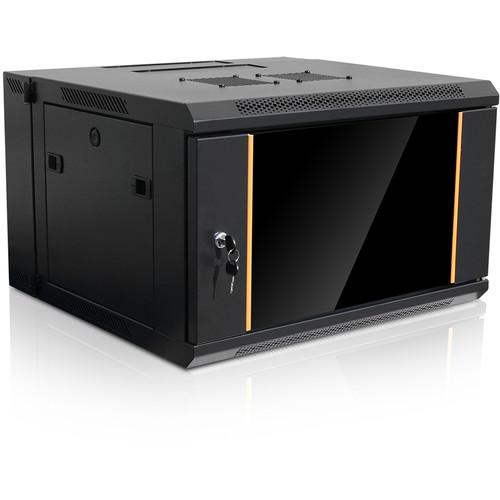

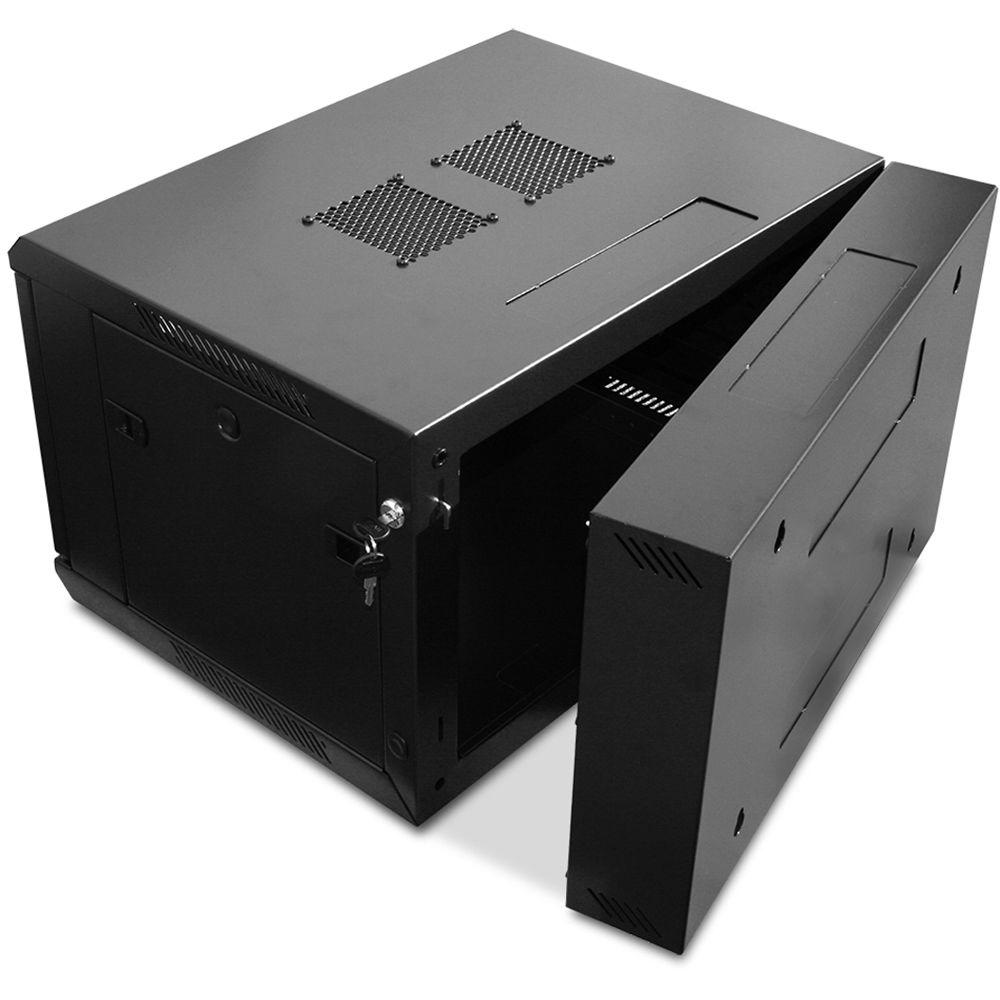

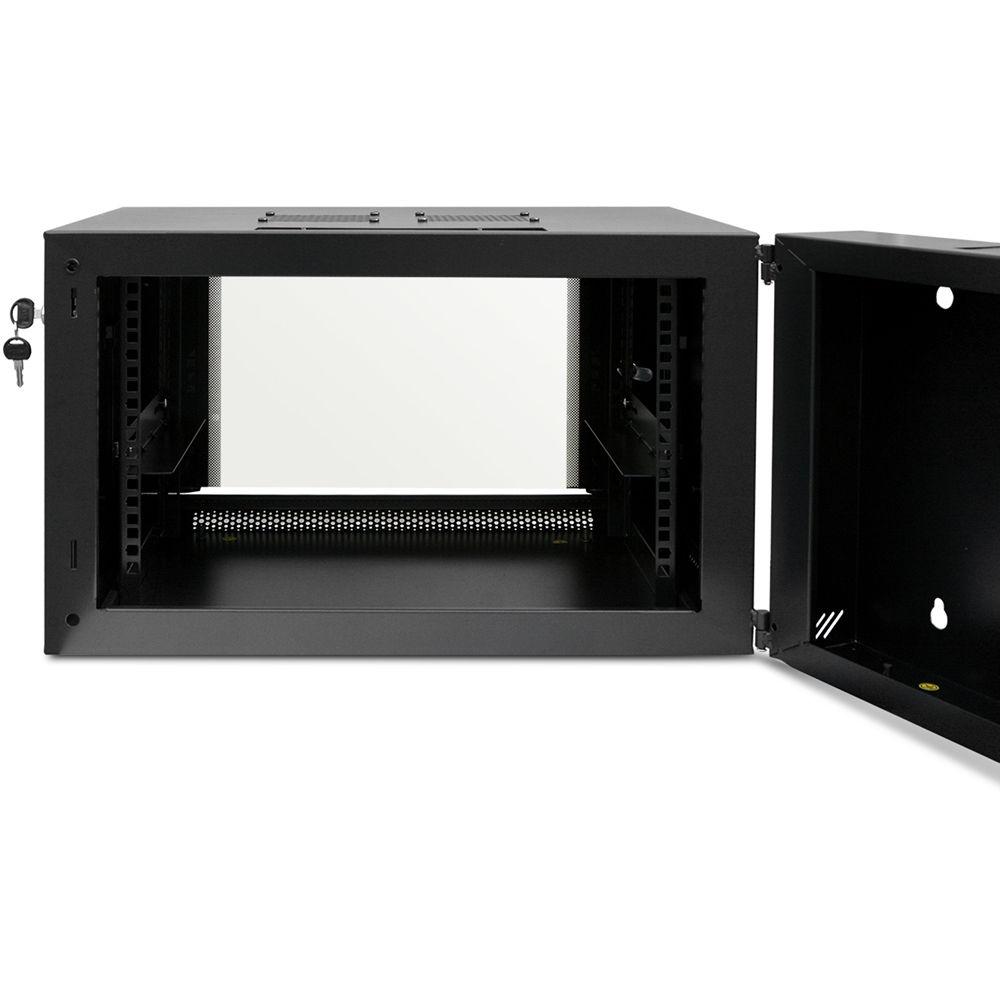

Product description The 6 RU iStarUSA Claytek WMZ655 Swing-Out Wall Mount Server Cabinet is designed to house standard 19" rack equipment on a wall for technicians and engineers in network applications, lab and test systems, and server installations. It accommodates chassis depths up to 16" and supports rack rails for up to 6 RU of gear.

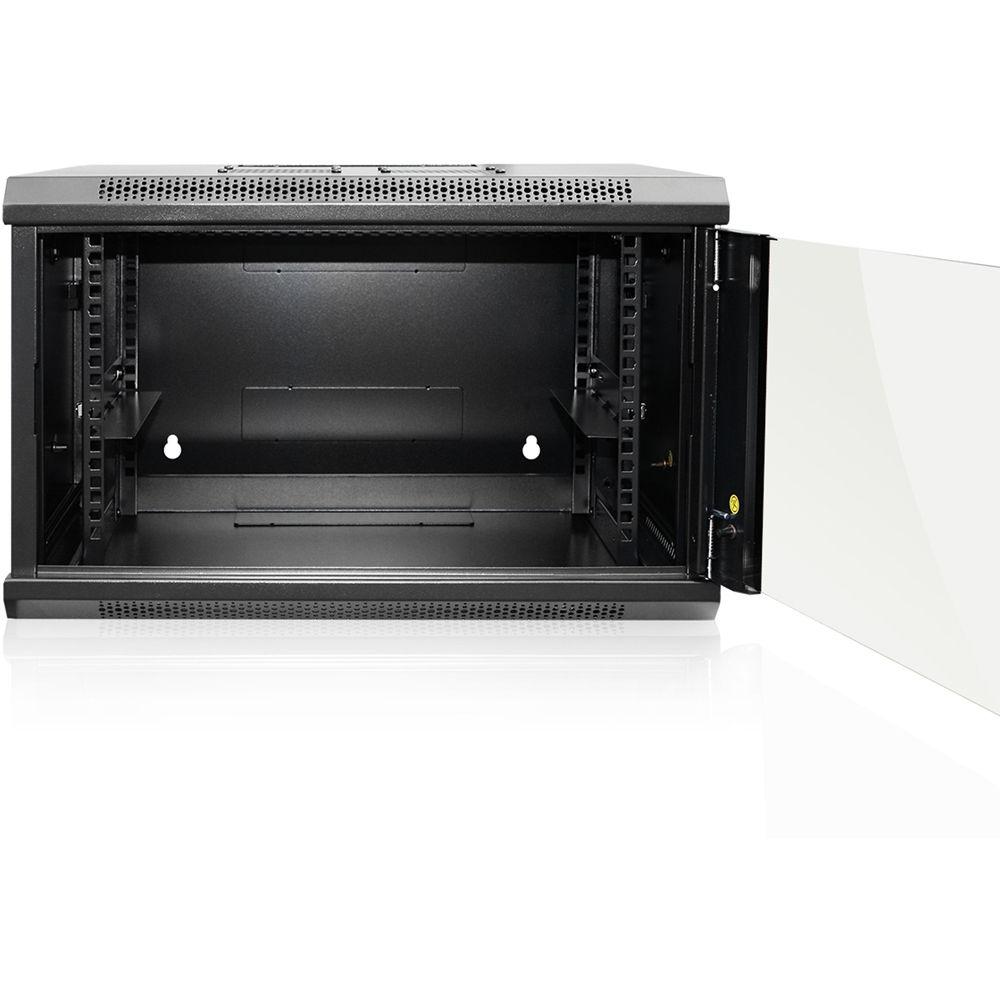

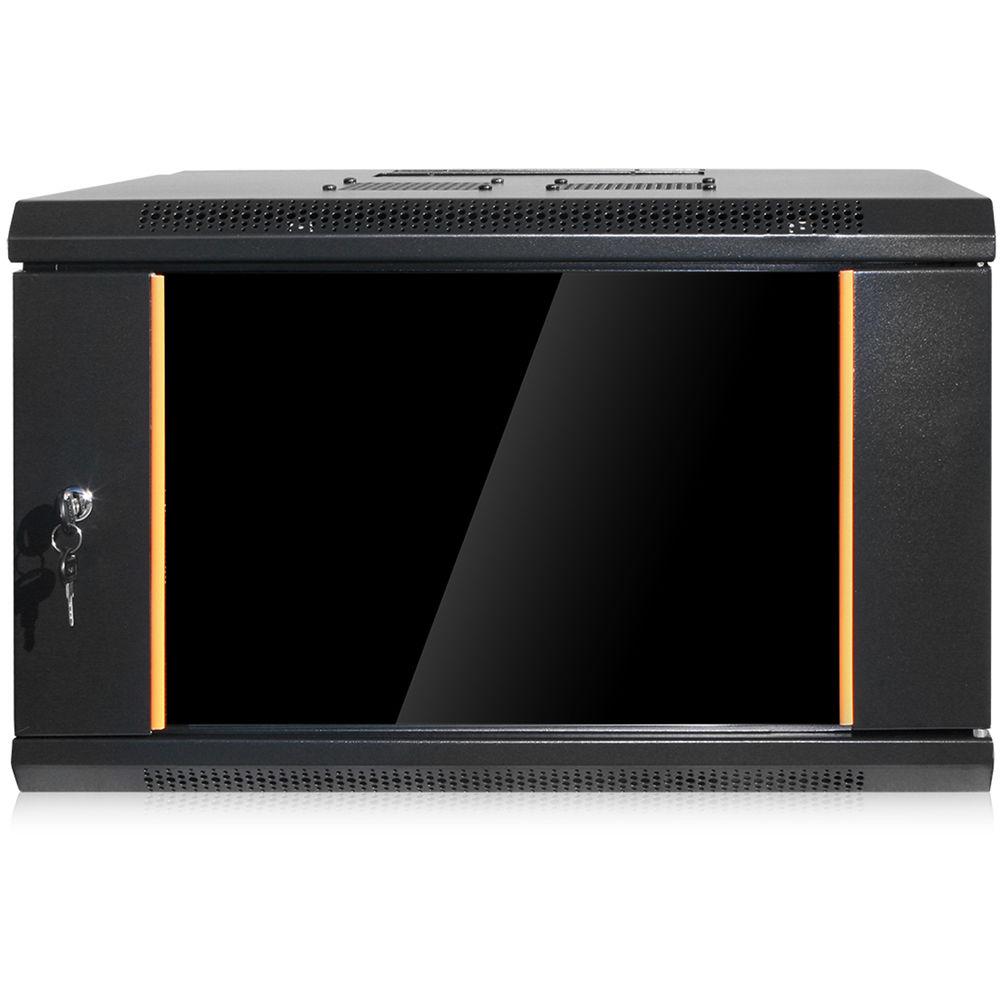

The welded steel frame is pre-assembled for efficient integration into your existing setup and handles a loading capacity of 130 lb. The heat-treated glass front door utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management, while removable side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating. - Sturdy and rugged welded frame structure comes pre-assembled
- Supports 6 RU rack rails (available separately)
- SPCC cold-rolled steel posts and enclosure with a heat-treated glass door
- Front door features a security key lock and heat-treated glass
- Flexible cable management via top, bottom, and rear cabling tunnels
- Built-in cooling vents and support for installation of WA-FANAC120 dual AC fans (available separately)

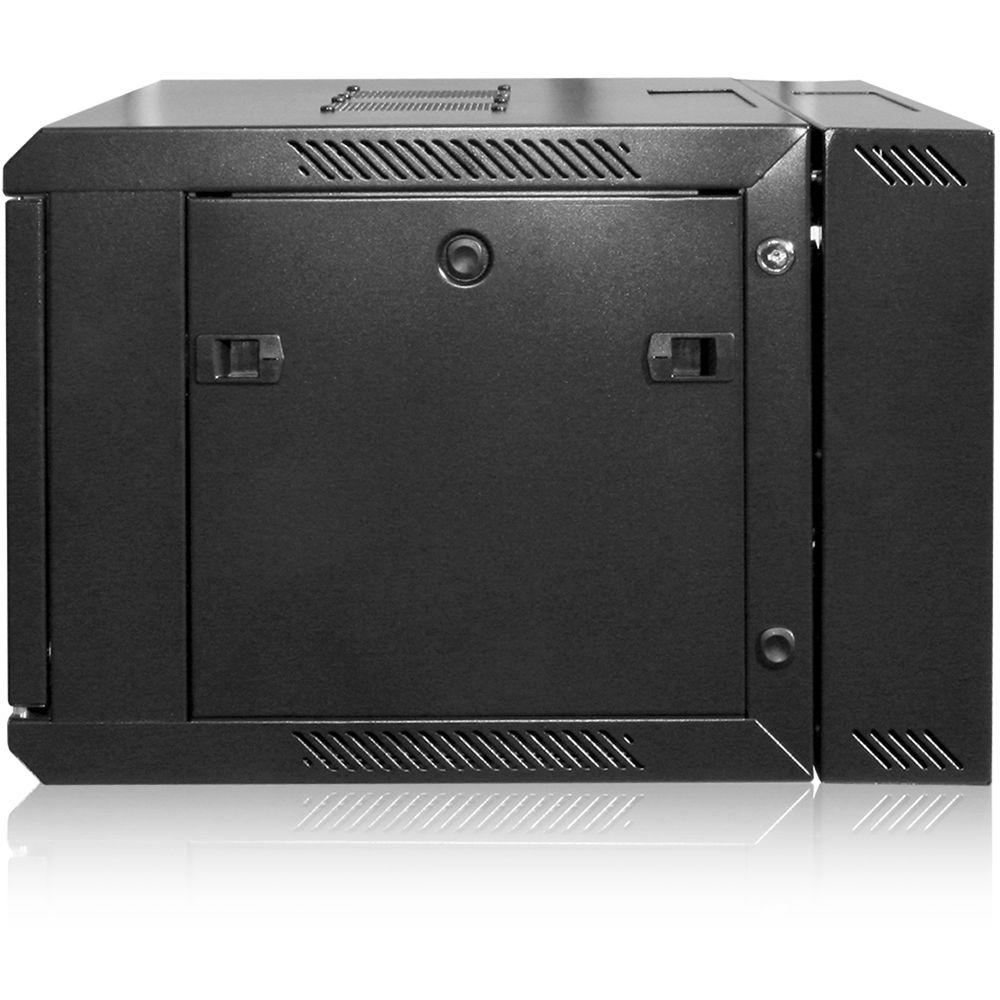

- Removable side panels with latches allow for quick access for maintenance
- Loading capacity up to 130 lb
- Comes with M6 mounting screws and cage nuts
UPC: 846813038010 In the Box iStarUSA Claytek WMZ-655 Swing-Out Wall Mount Server Cabinet (6 RU) M6 Mounting Screws and Cage Nuts Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA Claytek WMZ-655 Swing-Out Wall Mount Server Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA WMZ-655 Specs | Rack Space | 6 RU | | RoHS Compliance | Yes | | Industry Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, DIN 41494 Part 7, and GB/T3047.2-92
HTS Code: 8473.30.5100 (ECCN is not applicable) | | Construction Material | Posts: 0.06" / 1.5 mm SPCC cold-rolled steel
Enclosure: 0.05" / 1.2 mm SPCC cold-rolled steel
Door: Heat-treated glass | | Supported Chassis Depth | Up to 16" / 40.6 cm | | Loading Capacity | 130 lb / 59 kg | | Dimensions (W x H x D) | 23.6 x 14.5 x 21.7" / 60.0 x 36.8 x 55.0 cm | | Weight | 46 lb / 20.9 kg |
