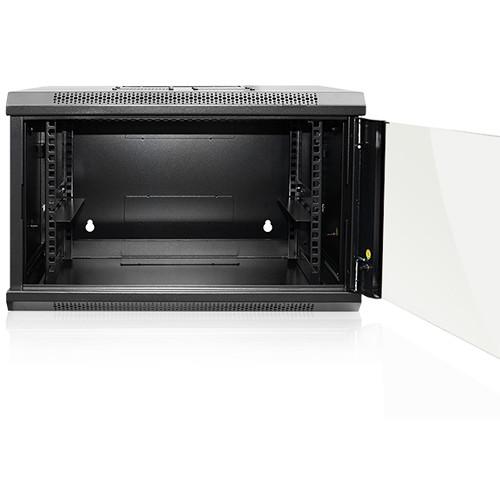

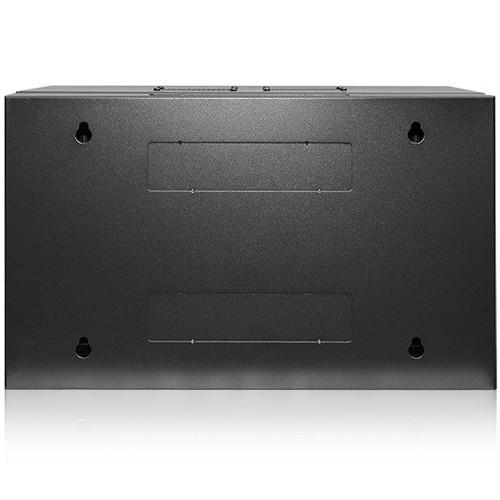

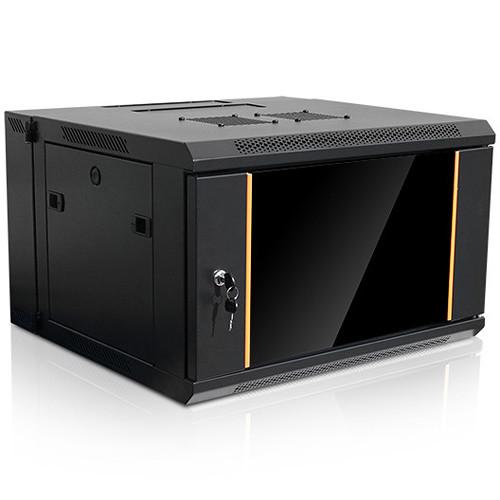

Product description The iStarUSA Claytek WMZ655-DWR2U is a 6 RU swing-out wallmount server cabinet with a 2 RU sliding drawer designed to house standard 19" rack equipment on a wall for technicians and engineers in network applications, lab and test systems, and server installations. It accommodates chassis depths up to 16" and supports rack rails for up to 6 RU of gear. The lockable sliding drawer occupies 2 RU and offers space for a keyboard, mouse, and other accessories. The welded steel frame is pre-assembled for efficient integration into your existing setup. Its heat-treated glass front door utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management and removable locking side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating. - Claytek WMZ-655 Swing-Out Wall Mount Server Cabinet (6 RU) The 6 RU iStarUSA Claytek WMZ655 Swing-Out Wall Mount Server Cabinet is designed to house standard 19" rack equipment on a wall for technicians and engineers in network applications, lab and test systems, and server installations. It accommodates chassis depths up to 16" and supports rack rails for up to 6 RU of gear.
The welded steel frame is pre-assembled for efficient integration into your existing setup and handles a loading capacity of 130 lb. The heat-treated glass front door utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management, while removable side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating. - Sturdy and rugged welded frame structure comes pre-assembled
- Supports 6 RU rack rails (available separately)
- SPCC cold-rolled steel posts and enclosure with a heat-treated glass door

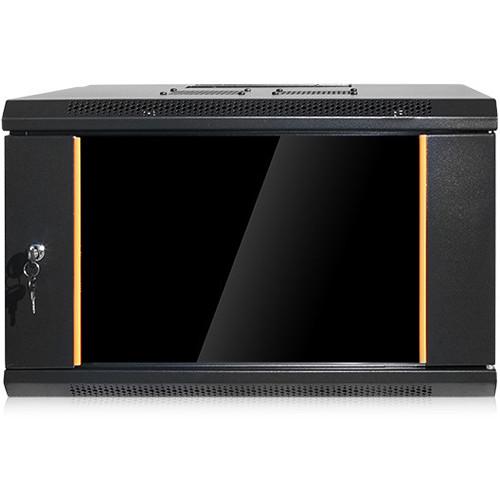

- Front door features a security key lock and heat-treated glass
- Flexible cable management via top, bottom, and rear cabling tunnels
- Built-in cooling vents and support for installation of WA-FANAC120 dual AC fans (available separately)

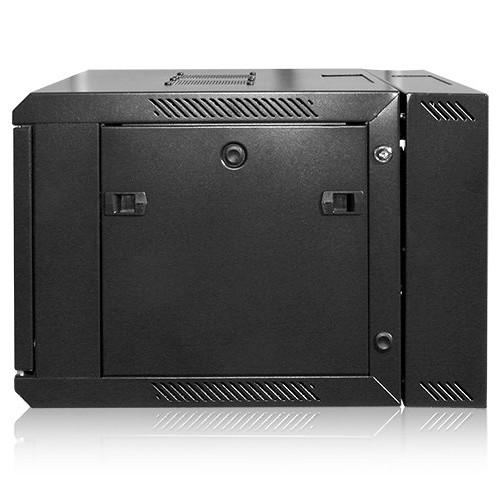

- Removable side panels with latches allow for quick access for maintenance
- Loading capacity up to 130 lb
- Comes with M6 mounting screws and cage nuts

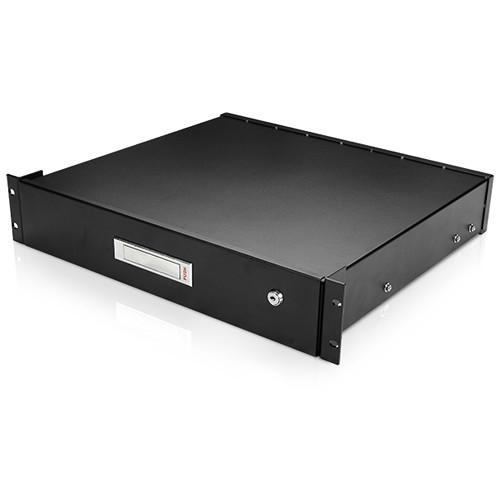

UPC: 846813038010 - Claytek WA-DWR2UB 2 RU Sliding Drawer with Key Lock The iStarUSA Claytek WA-DWR2UB is a 2 RU sliding drawer designed to hold non-rackmount devices for audio engineers, A/V technicians, and system installers in recording studios, A/V racks, and server rooms. It features a depth of over 15" and fits in standard 19" equipment racks. Its sturdy cold-rolled steel construction provides a 44 lb weight capacity for items such as hard drives, microphones, tools, and more. A key lock offers additional security and prevents unauthorized access to the drawer's contents. The handle is retractable for compliance with limited front-panel space.
- Sturdy 1.6mm cold-rolled steel construction
- Compatible with 19" equipment racks
- Holds non-rackmount devices such as a mouse, keyboard, tools, hard drives, dongles, microphones, and accessories
- Security key lock to prevent unauthorized access
- Retractable handle yields a sleek, flush front panel
- Easy and quick installation
UPC: 846813036184 In the Box Bundle Items Claytek WMZ-655 Swing-Out Wall Mount Server Cabinet (6 RU) - M6 Mounting Screws and Cage Nuts
- Limited Lifetime Warranty
Claytek WA-DWR2UB 2 RU Sliding Drawer with Key Lock Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA Claytek WMZ655-DWR2U Swing-Out Wallmount Server Cabinet with 2 RU Sliding Drawer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Claytek WMZ-655 Swing-Out Wall Mount Server Cabinet (6 RU)
| Rack Space | 6 RU | | RoHS Compliance | Yes | | Industry Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, DIN 41494 Part 7, and GB/T3047.2-92
HTS Code: 8473.30.5100 (ECCN is not applicable) | | Construction Material | Posts: 0.06" / 1.5 mm SPCC cold-rolled steel
Enclosure: 0.05" / 1.2 mm SPCC cold-rolled steel
Door: Heat-treated glass | | Supported Chassis Depth | Up to 16" / 40.6 cm | | Loading Capacity | 130 lb / 59 kg | | Dimensions (W x H x D) | 23.6 x 14.5 x 21.7" / 60.0 x 36.8 x 55.0 cm | | Weight | 46 lb / 20.9 kg | - Claytek WA-DWR2UB 2 RU Sliding Drawer with Key Lock
| Rack Height | 2 RU | | RoHS Compliance | Yes | | Construction Material | SPCC 1.6 mm cold-rolled steel | | Dimensions (W x H x D) | 19.0 x 3.5 x 15.9" / 482 x 88 x 403 mm | | Weight Capacity | 44 lb / 20 kg | | | | Box Dimensions (LxWxH) | 22.65 x 22.0 x 7.5" |
