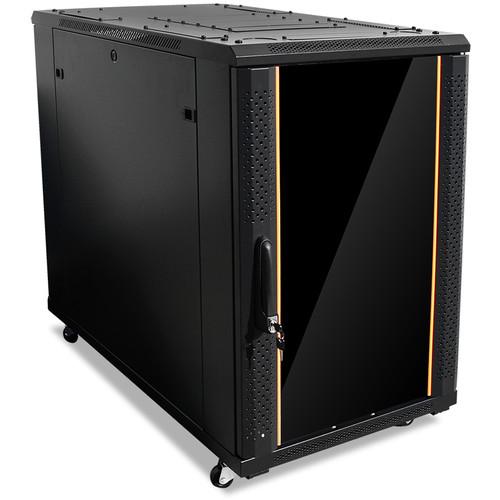

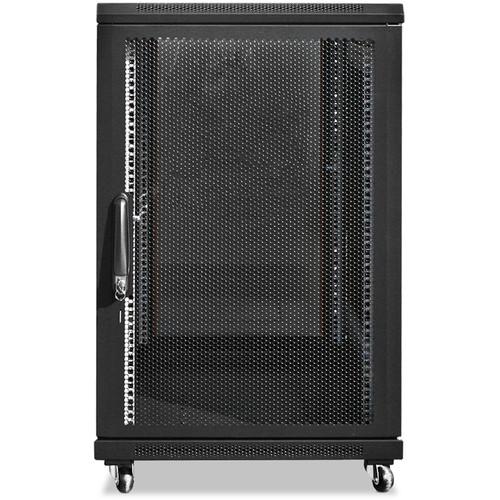

Product description The black 18 RU iStarUSA Claytek WNG-1810 Knock-Down Server Cabinet is designed to house standard 19" rack equipment for technicians and engineers in network applications, lab and test systems, and server installations. It accommodates chassis depths up to 32" and supports rack rails for up to 18 RU of gear. The mounting rails are adjustable to provide optimal compatibility with various rackmount devices.

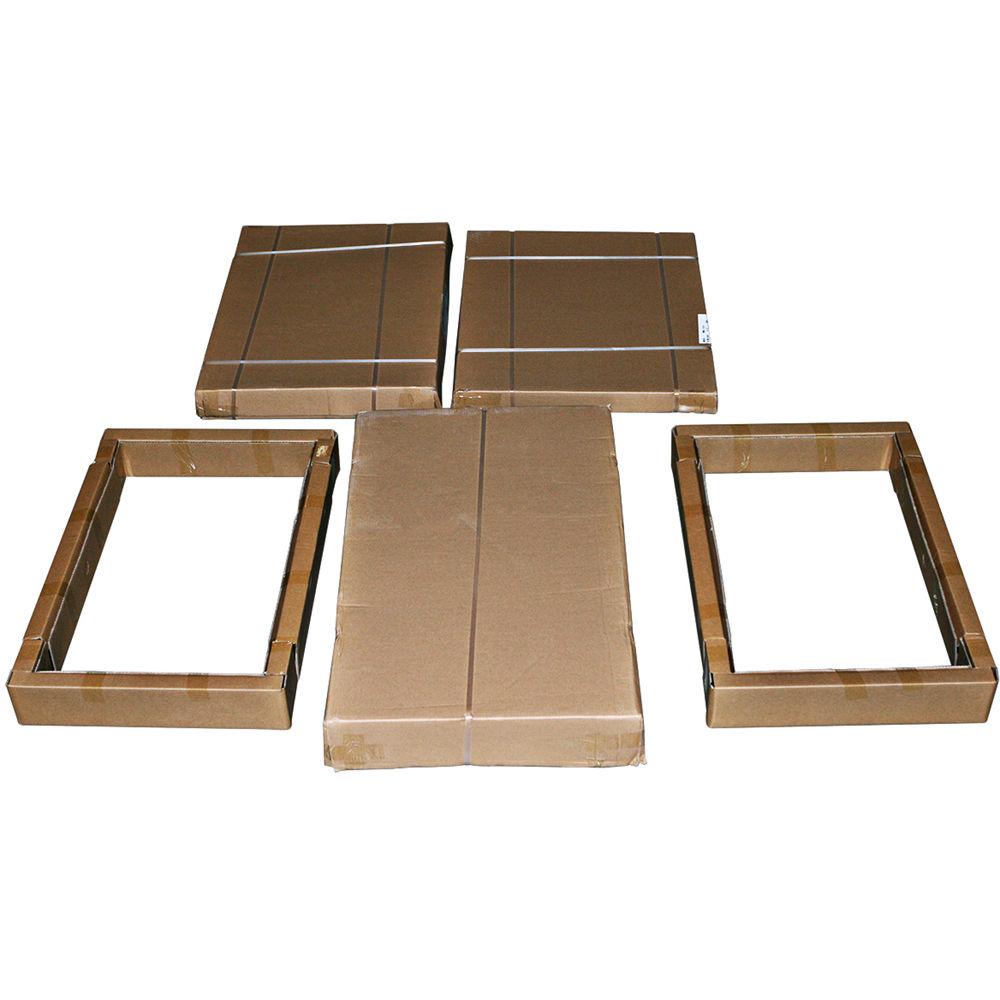

The welded steel frame is ready to assemble and handles a loading capacity of 1700 lb. The perforated rear door and strengthened glass front door utilize security key locks to prevent unauthorized equipment access. Cable entry points in the top, bottom, front, and back enable tidy wire management, while removable side panels with latches provide convenient access for maintenance. Built-in vents plus the rear-door perforations allow for airflow to minimize equipment overheating. The WNG-1810 ships in flat packaging with M6 mounting screws and cage nuts. - Sturdy and rugged welded frame structure comes ready to assemble
- Supports 18 RU rack rails (available separately)

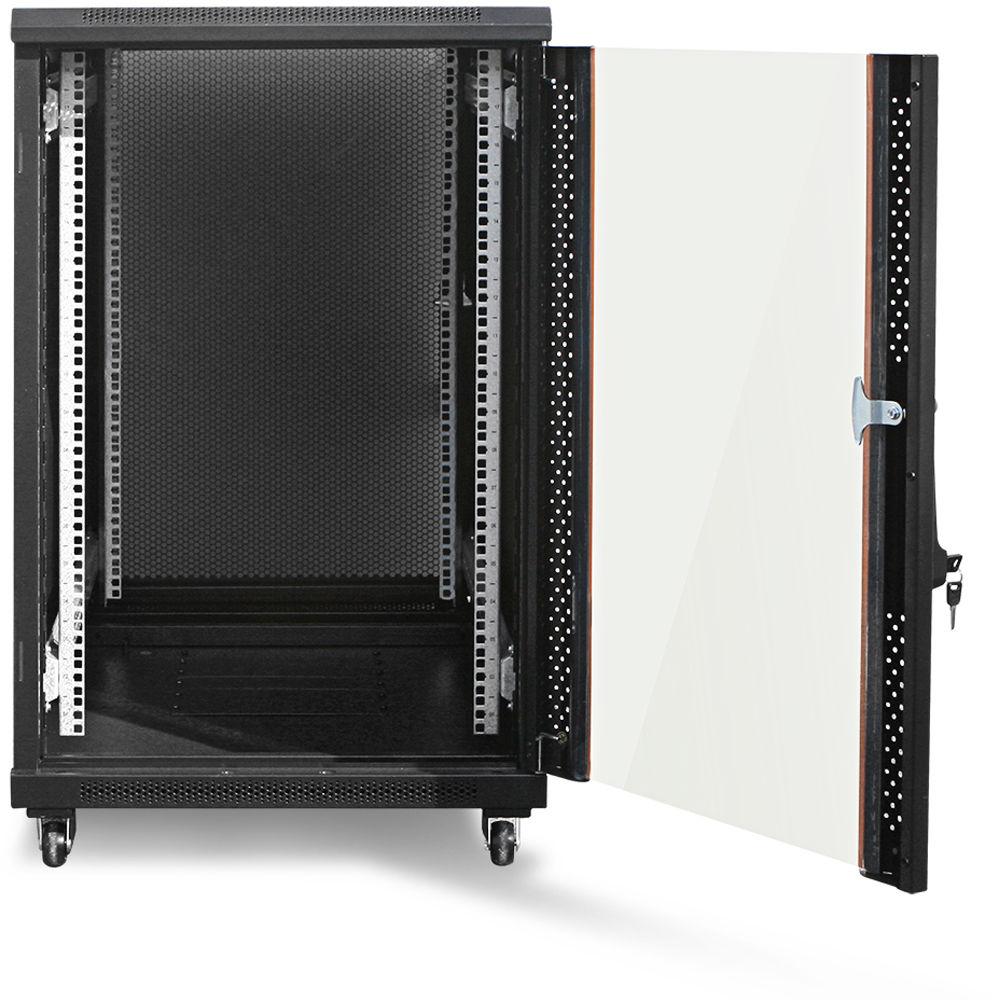

- SPCC cold-rolled steel mounting rails are horizontally adjustable
- SPCC cold-rolled steel top and side panels

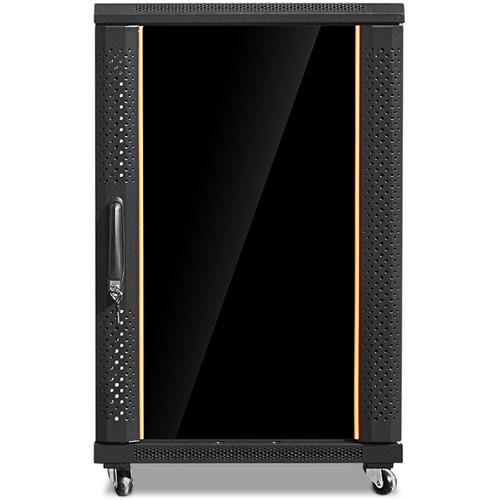

- Front door features a security key lock and strengthened glass

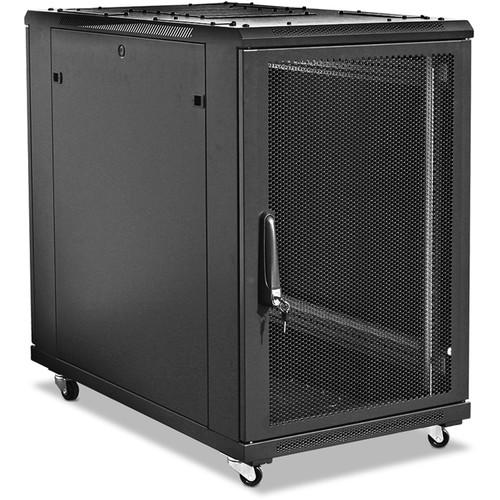

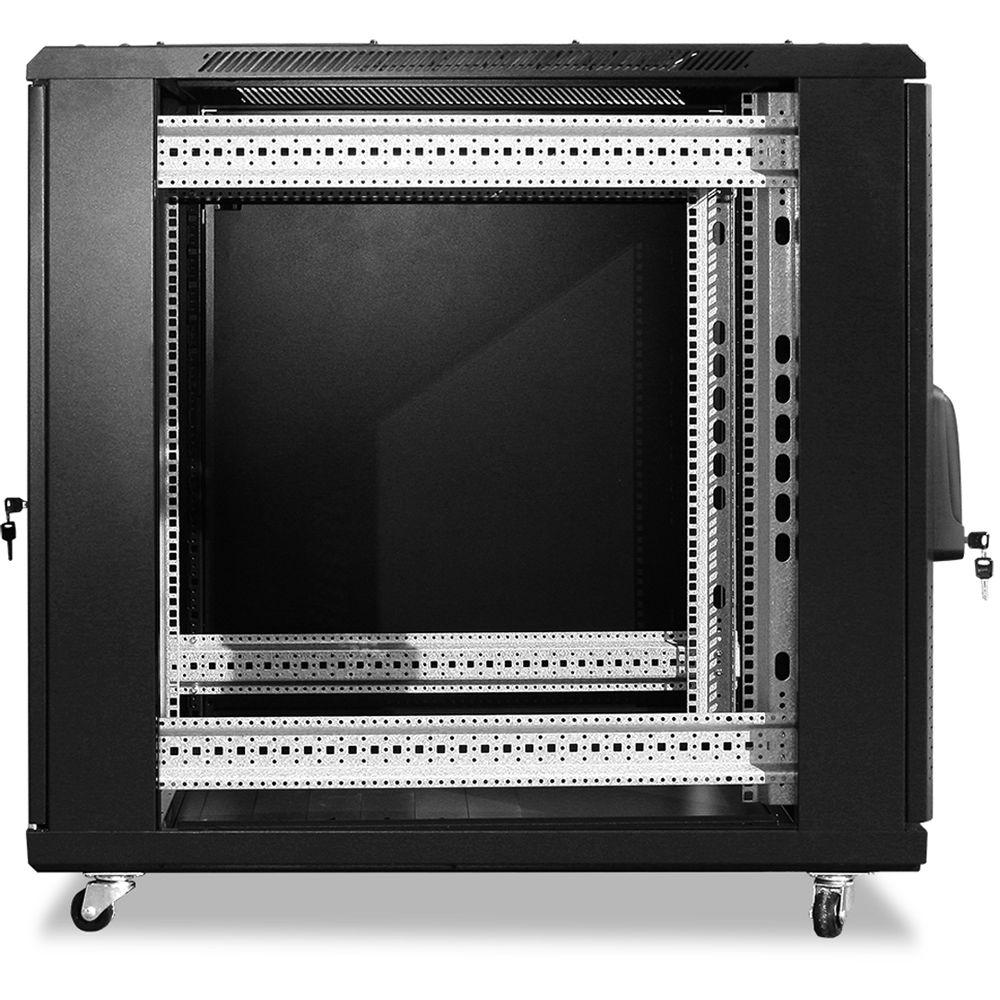

- Lockable rear door is perforated for maximum airflow
- Flexible cable management via top, bottom, front, and rear entry points
- Built-in cooling vents and support for installation of WA-3FAN-120AC AC fans (available separately)

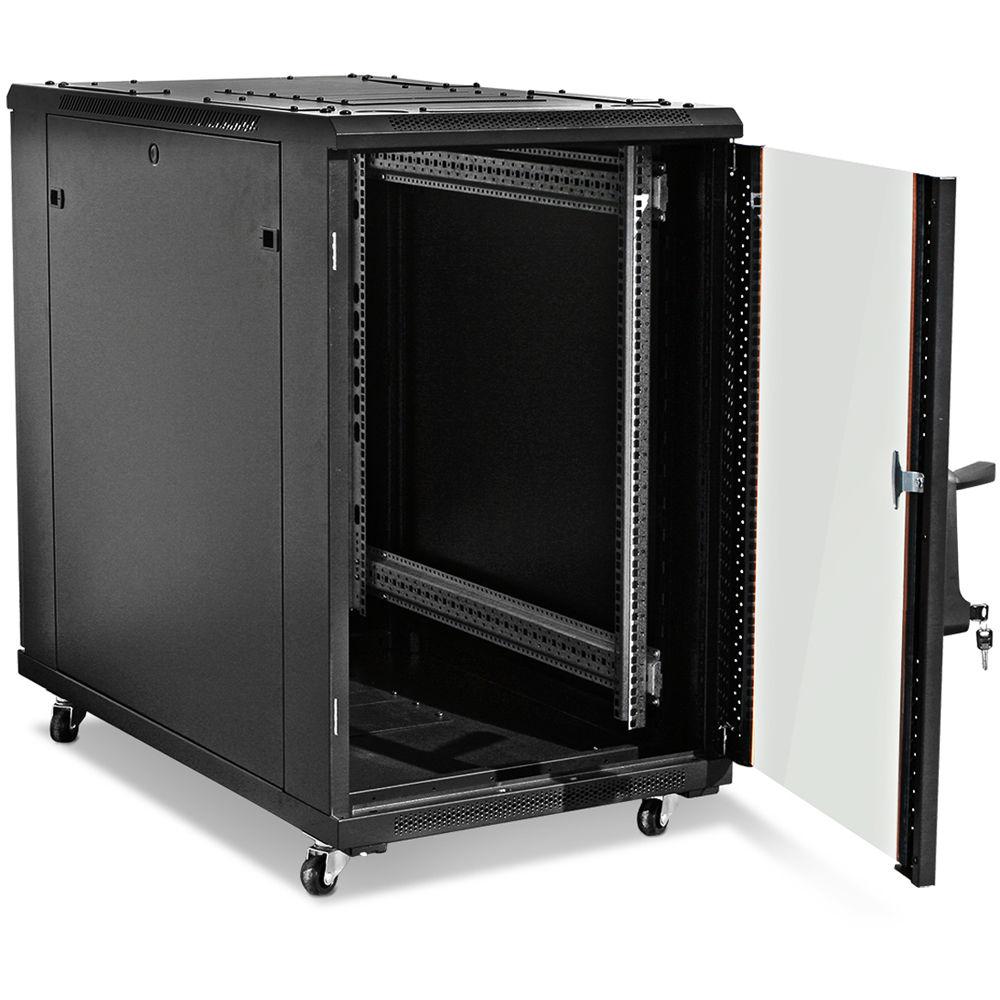

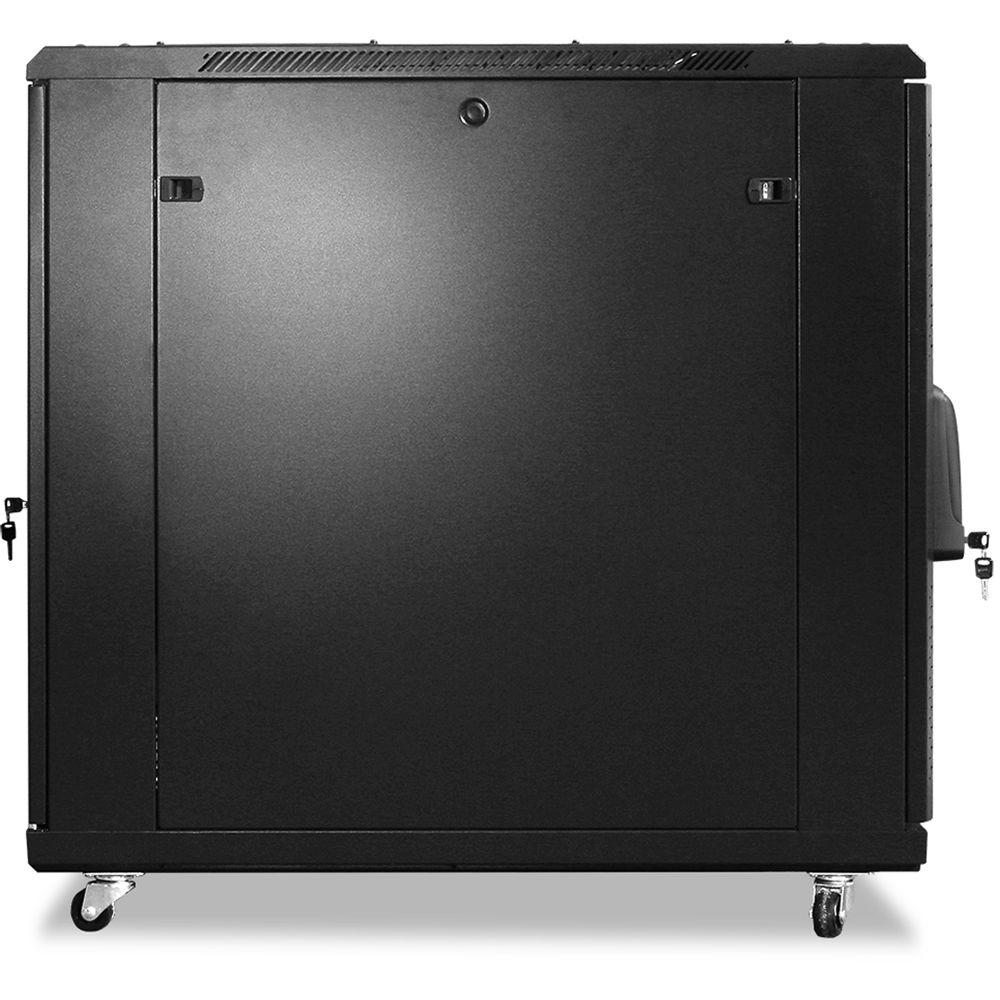

- Removable side panels with latches allow for quick access for maintenance
- Accommodates chassis depths up to 32"
- Static loading capacity up to 1700 lb

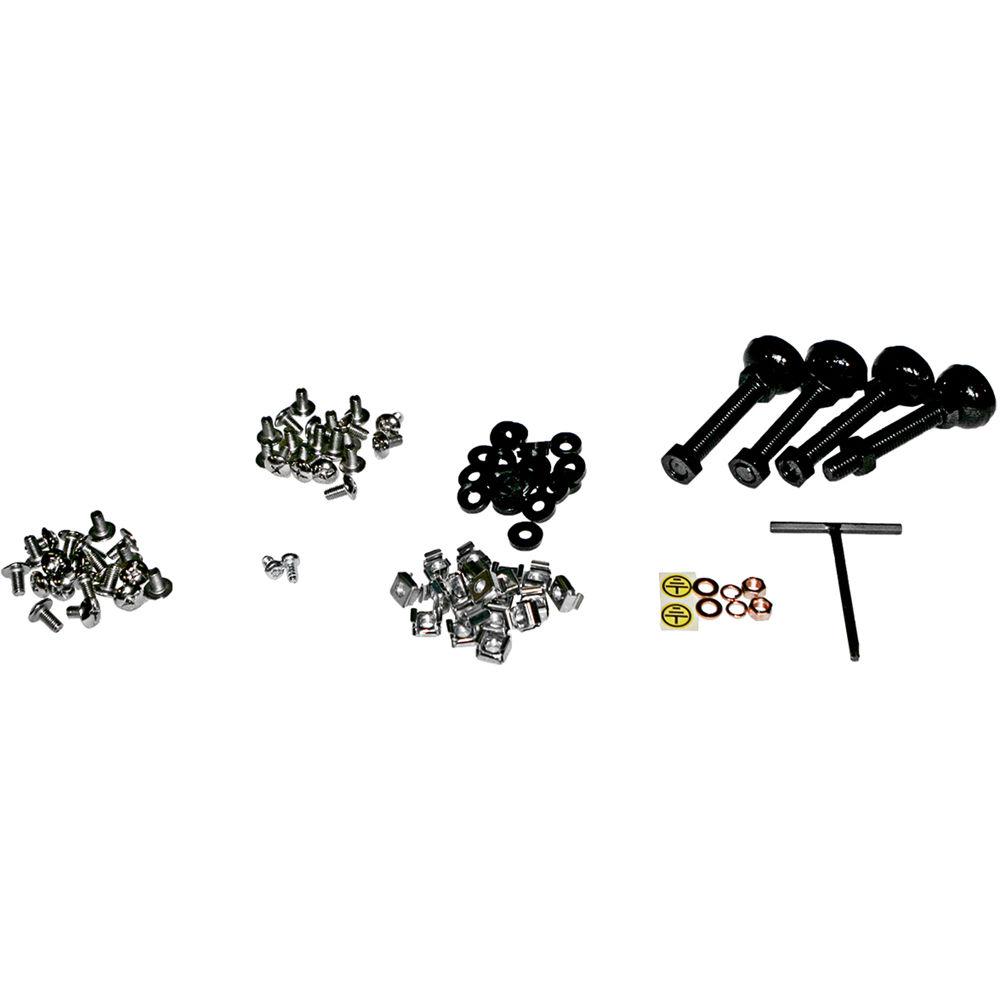

- Comes with M6 mounting screws and cage nuts
UPC: 846813037983 In the Box iStarUSA Claytek WNG-1810 Knock-Down Server Cabinet (18 RU, Black) M6 Mounting Screws and Cage Nuts Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA Claytek WNG-1810 Knock-Down Server Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA WNG-1810 Specs | Rack Space | 18 RU | | RoHS Compliance | Yes | | Industry Standards | EIA 310-D
HTS Code: 8473.30.5100 (ECCN is not applicable) | | Construction Material | Top and Side Panels: 0.05" / 1.2 mm SPCC cold-rolled steel
Rails: 0.08" / 2 mm SPCC cold-rolled steel
Door: Glass | | Supported Chassis Depth | Up to 32" / 81.3 cm | | Loading Capacity | With Leveling Feet: 1700 lb / 771.1 kg
With Casters: 880 lb / 399.2 kg
Dynamic: 780 lb / 353.8 kg | | Dimensions (W x H x D) | 23.6 x 38.9 x 42.9" / 60.0 x 98.8 x 109.0 cm | | Weight | 155 lb / 70.3 kg | | | | Package Weight | 146.85 lb | | Box Dimensions (LxWxH) | 42.0 x 26.0 x 5.0" |
