User Manual for iStarUSA D-118V2-ITX-30FX8 Kit with 1U Compact Rackmount mini-ITX Chassis & 270W Flex ATX 80 Plus High Efficiency Power Supply Click to enlarge the picture
Contents of the user manual for the iStarUSA D-118V2-ITX-30FX8 Kit with 1U Compact
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
 |
User manual for the iStarUSA D-118V2-ITX-30FX8 Kit with 1U Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description The iStar USA D-118V2-ITX-30FX8 Kit includes the D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis and the TC-1U30FX8 1U 300W Flex ATX 80 Plus High Efficiency Power Supply.

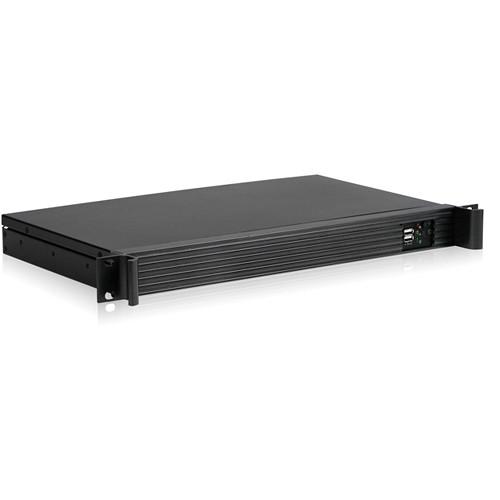

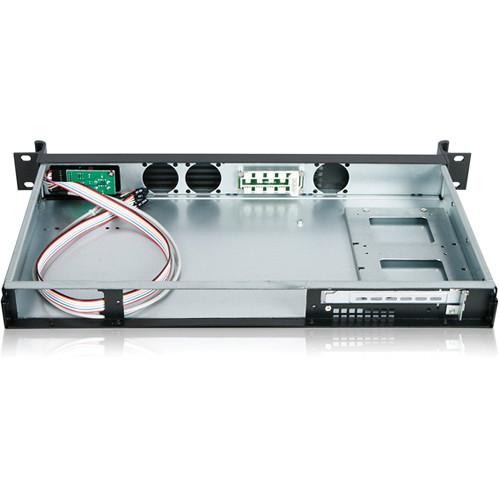

The black D-118V2-ITX Compact Rackmount mini-ITX Chassis is a reliable and stable 1U high and 11" deep industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drives with a mini-ITX motherboard. The D-118-ITX Chassis also supports a 1U flex power supply to meet regular system applications and 1.5" (40mm) cooling fans (sold separately) that can be installed in the front for adequate air ventilation.
The TC-1U30FX8 1U 300W Flex ATX 80 Plus High Efficiency Power Supply is designed to aptly fit into your 1U rackmount chassis. This compact and versatile power supply unit features low noise, triple circuit protections, and active PFC. Note: The standard I / O shield will not fit any 1U chassis. - D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Black) The black D-118V2-ITX Compact Rackmount mini-ITX Chassis from iStarUSA is a reliable and stable 1U high and 11" deep industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drives with a mini-ITX motherboard. The D-118-ITX Chassis supports a 1U flex power supply to meet regular system applications and 1.5" (40mm) cooling fans (sold separately) that can be installed in the front for proper air ventilation. Note: The standard I / O shield will not fit any 1U chassis.
- Industrial chassis with 11.0" (279.4mm) depth
- Supports 2 front access USB 2.0 ports
- Supports mini-ITX motherboard
- Supports 1U flex power supply
UPC: 846813019583 - TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply The iStarUSA TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply is compact, versatile and designed to fit perfectly into your 1U rackmount chassis. It includes features such as low noise, triple circuit protections, and active PFC.
- Output Over Voltage, Short Circuit, and Over Current Protection
- 100% Hi-pot, ATE, and Burn-in Tested
- Thermal Fan Speed Control function
- Compatible with European Union Directive 2002/95/EC (RoHS)
- 80 Plus Bronze High Efficiency
- Complied with Flex ATX and ATX12V Standard
- Active Power Factor Correction (PFC) Meet EN61000-3-2
UPC: 677808611310 In the Box Bundle Items D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Black) cveqyrzqewwtzbxyeadrvxefyuzzftddxcwy TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply cveqyrzqewwtzbxyeadrvxefyuzzftddxcwy Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA D-118V2-ITX-30FX8 Kit with 1U Compact Rackmount mini-ITX Chassis & 270W Flex ATX 80 Plus High Efficiency Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Black)
| | | Motherboard Support | Mini-ITX | | Internal Drive Bays | 2 x 2.5" | | Expansion Slots | 1 x Low-Profile | | Connections | 2 x USB Type-A (USB 2.0) | | Compatible Power Supply | Flex ATX | | | | Optional Cooling | 3 x 40 mm | | | | Rack Form Factor | 1RU | | Material | Aluminum, Steel | | Dimensions (W x H x D) | 19.0 x 1.8 x 11.0" / 482.6 x 44.5 x 279.4 mm | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 23.0 x 16.0 x 5.0" | - TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply
| RoHS Compliance Version | Yes | | Wattage | 300 W | | Efficiency | 80% | | Connector Type | Main Connector: 20+4 pin4pin 12V: 1Molex: 3SATA: 2Floppy: 1 | | Dimensions (W x H x D) | 3.20 x 1.60 x 5.90" (81.3 x 40.6 x 149.9 mm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 10.7 x 7.1 x 1.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
