User Manual for iStarUSA D Storm Series 3U High Performance Rackmountable Chassis with 7" Touch Screen LCD Click to enlarge the picture
Contents of the user manual for the iStarUSA D Storm Series 3U High
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
 |
User manual for the iStarUSA D Storm Series 3U High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|

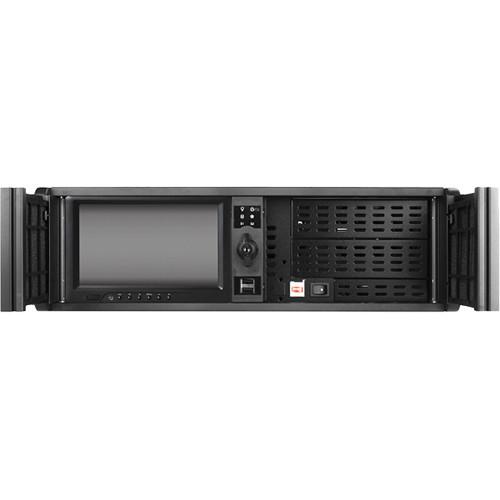

Product description The black D Storm Series 3U High Performance Rackmount Chassis with 7” Touch Screen LCD from iStarUSA features a built-in with 7” touch screen LCD that enables instant system control and configuration. The full size back plane and width supports dual Intel and AMD CPU motherboard. The chassis supports 7 full-length add-on cars. It has enhanced thermal solution with extra cooling fans. The 3.5” and 5.25” trays (sold separately) supports hot-swappable storage and RAID configuration -
- Aluminum front panel with locks, Taiwan: 200281 / 190240, China: 2L01259648.5
- Two front access USB2.0 ports
- One 60mm and three 80mm cooling fans
- Removable air filter
- Power and HDD LEDs
- Power and alarm reset switch
- Built-in 7” touch screen LCD
- Standard I/O shield
- Hot-Swappable HDD cage (sold separately)
- RoHS compliant
- Red front bezel

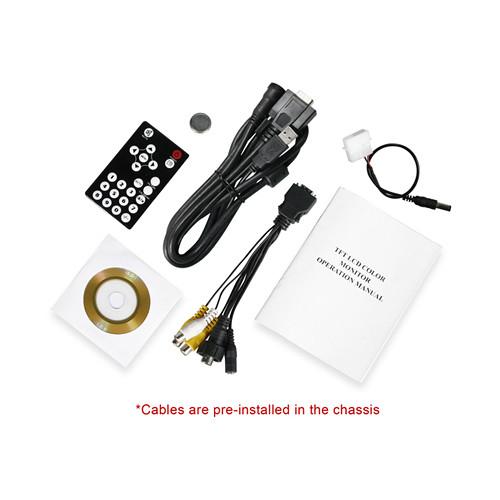

UPC: 846813024631 In the Box iStarUSA D Storm Series 3U High Performance Rackmountable Chassis with 7" Touch Screen LCD (Red Bezel) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA D Storm Series 3U High Performance Rackmountable Chassis with 7" Touch Screen LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA D-300L Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX | | External Drive Bays | 1 x 3.5"
2 x 5.25" | | Internal Drive Bays | 1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Connections | 2 x USB Type-A (USB 2.0) | | Compatible Power Supply | ATX | | | | Security Features | Security Lock | | | | Included Cooling | 1 x 60 mm
3 x 80 mm | | Optional Cooling | 1 x 60 mm | | | | Rack Form Factor | 3RU | | Air Filter | Yes | | Material | Steel | | Dimensions (W x H x D) | 19.0 x 5.2 x 20.8" / 482.6 x 133.3 x 528.3 mm | | Weight | 45 lb / 20.4 kg |
