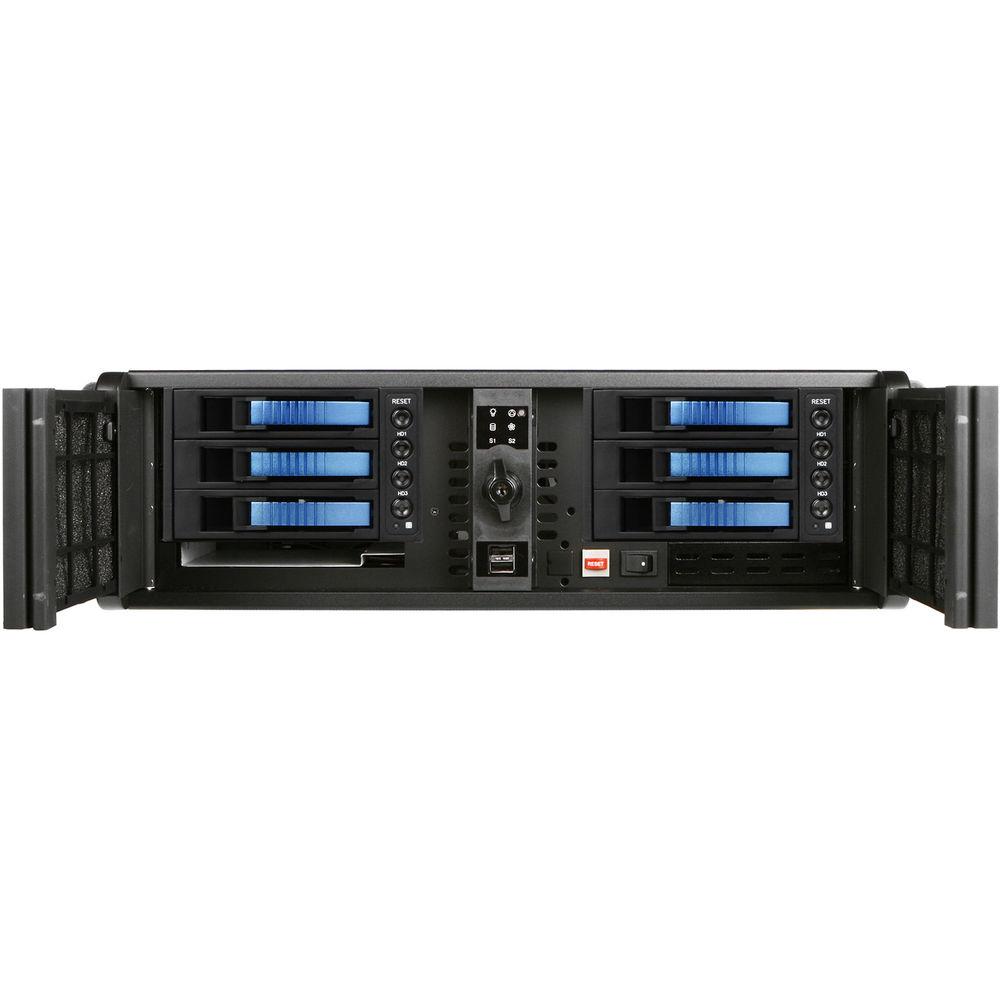

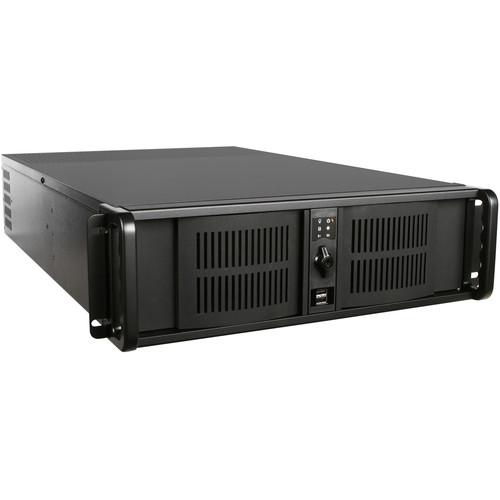

User Manual for iStarUSA D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis with Redundant Power Supply Click to enlarge the picture
Contents of the user manual for the iStarUSA D Storm Series D-300L-B6SA 3U
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
 |
User manual for the iStarUSA D Storm Series D-300L-B6SA 3U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description By combining the iStarUSA D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis with the iStarUSA IS-460R2UP 460W 2U Redundant Power Supply you have an additional power supply offering universal input, automatic fan thermal control, remote sensor capabilities, power failure alarm and signals, and more. - D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis (Black) The black D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis from iStarUSA features a full-size back plane and width that support dual Intel and AMD CPU motherboards. It has enhanced thermal solution with extra cooling fans. It supports hot-swappable storage, raid configuration, and a total storage capacity of up to 6 storage drives to provide your server or cluster with maximum flexibility and performance.
-
- Aluminum front panel with locks (Taiwan: 200281 / 190240, China: 2L01259648.5)
- Two front access USB2.0 ports
- Two 60mm and three 80mm cooling fans
- Removable air filter
- Power and HDD LEDs
- Power and alarm reset switch
- Standard I/O shield
- D-Storm chassis air filter for UL certification
- Air filter made of polyester material with a UL class 2 rating
- RoHS compliant
- Black front bezel
- IS-460R2UP 460W 2U Redundant Power Supply The IS-460R2UP 460W 2U Redundant Power Supply from iStarUSA gives you precision power and safety protection for all your electronic equipment. It is a dual AC input 2U 460W Redundant Power Supply. Its features include Active PFC, temperature control fan, hot swappable power modules and load sharing.
- Industrial Japanese Components
- Efficiency: 74% at Full Load
UPC: 846813008907 In the Box Bundle Items D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis (Black) IS-460R2UP 460W 2U Redundant Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis with Redundant Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D Storm Series D-300L-B6SA 3U High Performance Rackmountable Chassis (Black)
| | | Motherboard Support | ATX, E-ATX, Micro-ATX | | External Drive Bays | 2 x 3.5"
4 x 5.25" | | Internal Drive Bays | 1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Backplanes | SATA 6 Gb/s | | Connections | 2 x USB Type-A (USB 2.0) | | Compatible Power Supply | ATX | | | | Security Features | Front Bezel | | | | Included Cooling | 1 x 60 mm
3 x 80 mm | | Optional Cooling | 1 x 60 mm | | | | Rack Form Factor | 3RU | | Air Filter | Yes | | Material | Steel | | Dimensions (W x H x D) | 19.0 x 5.2 x 27.1" / 482.6 x 132.0 x 688.3 mm | | Weight | 44 lb / 19.9 kg | | | | Box Dimensions (LxWxH) | 34.0 x 22.0 x 11.0" | - IS-460R2UP 460W 2U Redundant Power Supply
| RoHS Compliance Version | Yes | | Output | - Total Wattage: 460 W
- Output: +3.3 V
- Max Load: 20 A
- Min Load: 1 A
- Max Combined: 180 W
- Total Output: 435 W
- Output: +5 V
- Max Load: 25 A
- Min Load: 1 A
- Max Combined: 180 W
- Total Output: 435 W
- Output: +12 V
- Max Load: 35 A
- Min Load: 2 A
- Total Output: 435 W
- Output: -12 V
- Max Load: 1 A
- Min Load: 0 A
- Total Output: 12 W
- Output: -5 V
- Max Load: 0.5 A
- Min Load: 0 A
- Total Output: 2.5 W
- Output: 5 Vsb
- Max Load: 2 A
- Min Load: 0.1 A
- Total Output: 10 W
| | MTBF | MTBF > 100,000 hours | | Efficiency | 74% | | Connector Type | - 1 x Main Connector (24-pin)
- 1 x 4-pin 12 V
- 1 x 8-pin EPS 12 V
- 6 x Molex
- 2 x SATA
- 1 x Floppy
| | Temperature | - Operating Temperature Range: 32 to 104°F (0 to 50°C)
- Non-Operating Temperature Range: -40 to 158°F (-40 to 70°C)
| | Humidity | - Operating Humidity Range: 20 to 90% RH non-condensing
- Non-Operating Humidity Range: 5 to 95% RH non-condensing
| | Dimensions (WxHxD) | 3.98 x 3.31 x 11.42"(101.1 x 84.1 x 290.1mm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 19.0 x 9.0 x 7.0" |
