User Manual for iStarUSA D Storm Series D-300LSE 3U High Performance Rackmountable Chassis Click to enlarge the picture
Contents of the user manual for the iStarUSA D Storm Series D-300LSE 3U
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
 |
User manual for the iStarUSA D Storm Series D-300LSE 3U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|

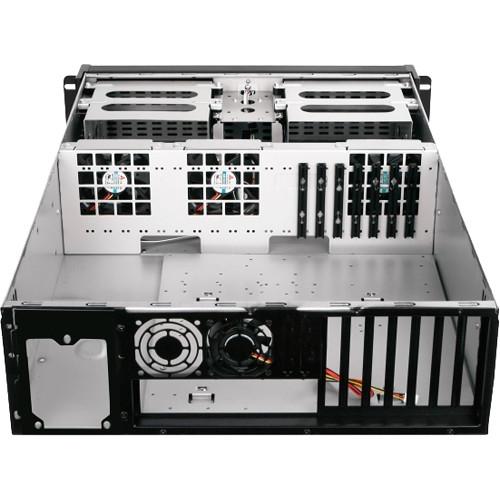

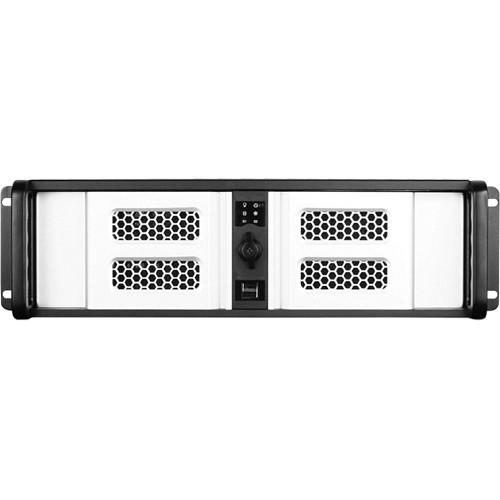

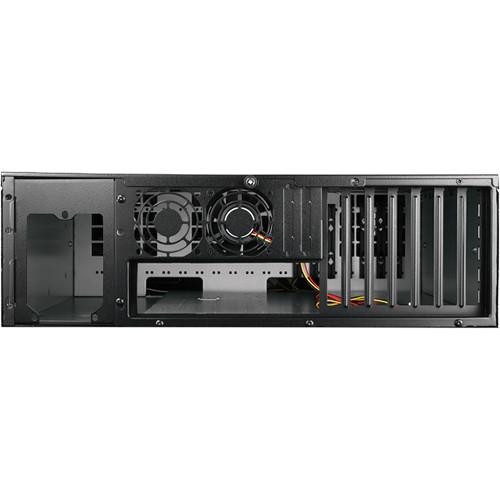

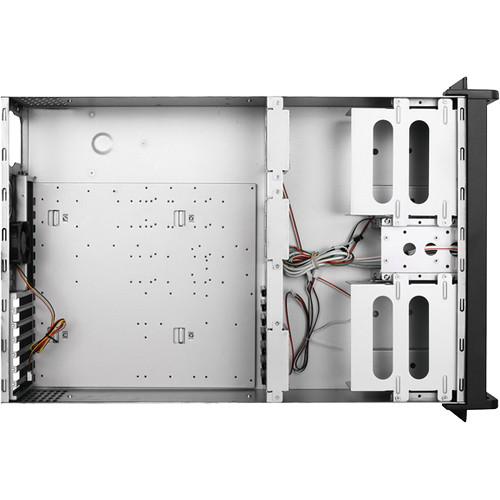

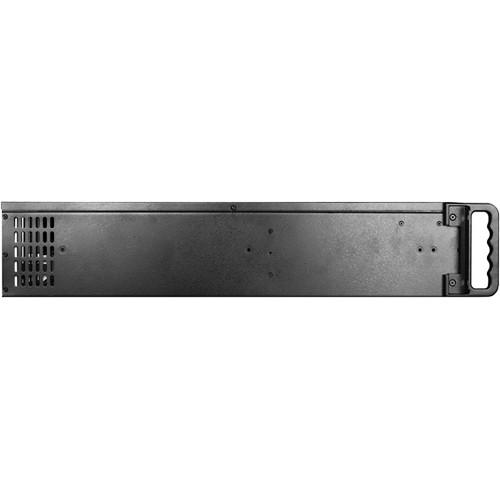

Product description The silver / black D Storm Series D-300LSE 3U High Performance Rackmountable Chassis from iStarUSA features a silver front bezel, and a full-size back plane and width that support dual Intel and AMD CPU motherboards. It has enhanced thermal solution with extra cooling fans. The 3.5” and 5.25” trays (sold separately) supports hot-swappable storage and RAID configuration, and have a total storage capacity of up to 6 storage drives, allowing for maximum flexibility and performance for your server or cluster. -
- Aluminum front panel with locks (Taiwan: 200281 / 190240, China: 2L01259648.5)
- Two front access USB2.0 ports
- One 60mm and three 80mm cooling fans
- Removable air filter
- Power and HDD LEDs
- Power and alarm reset switch
- Silver front bezel
- FCC certified
- RoHS compliant
UPC: 846813019019 In the Box iStarUSA D Storm Series D-300LSE 3U High Performance Rackmountable Chassis (Silver / Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA D Storm Series D-300LSE 3U High Performance Rackmountable Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA D-300LSE Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX | | External Drive Bays | 2 x 3.5"
4 x 5.25" | | Internal Drive Bays | 1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Connections | 2 x USB Type-A (USB 2.0) | | Compatible Power Supply | ATX | | | | Security Features | Security Lock | | | | Included Cooling | 1 x 60 mm
1 x 80 mm | | Optional Cooling | 1 x 60 mm | | | | Rack Form Factor | 3RU | | Air Filter | Yes | | Material | Steel | | Dimensions (W x H x D) | 19.0 x 5.2 x 27.9" / 482.6 x 133.3 x 708.7 mm | | Weight | 40 lb / 18.1 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
