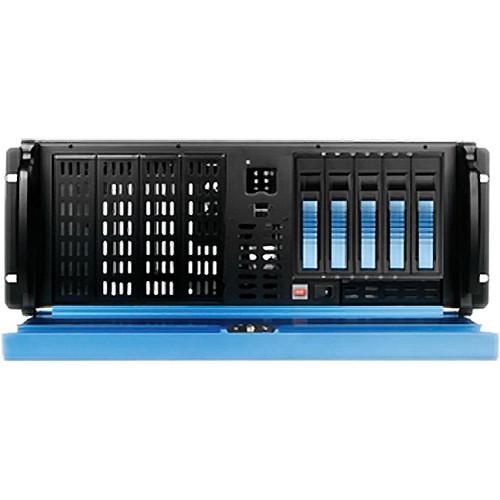

User Manual for iStarUSA D2-407BL-B5BL Kit with D2-400-7-BLUE Rackmount Chassis & BPU-350SATA-BLUE Hot-Swap Cage Click to enlarge the picture
Contents of the user manual for the iStarUSA D2-407BL-B5BL Kit with D2-400-7-BLUE Rackmount
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
|
User manual for the iStarUSA D2-407BL-B5BL Kit with D2-400-7-BLUE Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description The iStarUSA D2-407BL-B5BL Kit includes a D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis and a BPU-350SATA-BLUE 3x5.25 to 5x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage.
The D2-400-7-BLUE Rackmount Chassis is a 4U industrial rackmount chassis, which can be combined with iStarUSA HDD cages. The BPU or T Series enable hot-swappable storage capability. It also supports up to 7 add-on cards for system expansions and upgrades. The D2-400-7-BLUE Chassis provides your server or cluster maximum reliability and performance.
The BPU-350SATA-BLUE Hot-Swap Cage offers high level RAID and high availability storage in a compact design and adds extra storage and hot-swap capability to satisfy any application needs. It is constructed of aluminum material that provides heat dissipation required for high performance SAS/SATA drives, and is designed with front to back vent airflow. This Hot-Swap Cage provides a solution for internal server RAID and JBOD applications. The aluminum body and a 3.15" (80mm) cooling fan (sold separately) subsystem complete a high end data storage server or workstation. - D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis (Blue) The blue D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis from iStarUSA is a 4U industrial rackmount chassis that can be combined with the iStarUSA HDD cages. The BPU or T series enable hot-swappable storage capability. It also supports up to 7 add-on cards for system expansions and upgrades. This rackmount chassis provides your server or cluster maximum reliability and performance.
- BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage (Blue) The blue BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage from iStarUSA offers high-level RAID and high-availability storage in a compact design. It provides additional storage and hot-swap capability to satisfy any application needs. The storage cage is constructed of aluminum material that provides superb heat dissipation required for high-performance SAS/SATA drives. In addition, the 80mm cooling fan allows for excellent front to back vent airflow. The hot-swap storage cage is an ideal solution for internal server RAID and JBOD applications and is designed for use with high-end data storage servers or workstations.
- Supports 2.5"/3.5" SAS I/II and SATA I/II/III HDDs
- High-performance transfer rate up to 6.0 Gb/s
- 4TB hard drive compatibility
- Stylish aluminum color handle and heat-sink body
- Supports hot-swap and RAID configuration 1
Please Note: Needs an additional RAID controller. close - Aluminum design with conductive dissipation grooves
- Power, fan and high temperature LED indicators
- Equipped with fan speed control switch
UPC: 846813000598 In the Box Bundle Items D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis (Blue) vewrbfvuetcbyctdqtuycvc BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage (Blue) Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA D2-407BL-B5BL Kit with D2-400-7-BLUE Rackmount Chassis & BPU-350SATA-BLUE Hot-Swap Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis (Blue)
| | | Motherboard Support | ATX, Micro-ATX | | External Drive Bays | 1 x 3.5"
7 x 5.25" | | Internal Drive Bays | 1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Connections | 2 x USB Type-A (USB 2.0) | | Compatible Power Supply | ATX | | | | Security Features | Front Bezel | | | | Included Cooling | 1 x 80 mm | | | | Rack Form Factor | 4RU | | Material | Steel | | Dimensions (W x H x D) | 19.0 x 7.0 x 20.8" / 482.6 x 177.8 x 527.0 mm | | Weight | 35 lb / 15.9 kg | | | | Box Dimensions (LxWxH) | 28.0 x 23.0 x 13.0" | - BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage (Blue)
| Standard Drive Bays | 5.25" Drives: 3
Hot-Swap 3.5: 5 | | HDD Type | Hot-Swappable 3.5" SAS I/II and SATA I/II/III | | Indicators | Power, HDD, fan and high temperature | | Material | Material of Front Bezel: Aluminum
Material of Handle: Aluminum
Material of Main Chassis: Aluminum design with conductive dissipation grooves | | Cooling Fan | 1 x 80 mm | | Compliance | RoHS | | Dimensions (W x H x D) | 5.75 x 4.96 x 8.11" (14.6 x 12.6 x 20.6 cm) | | | | Box Dimensions (LxWxH) | 10.2 x 7.1 x 6.6" |
