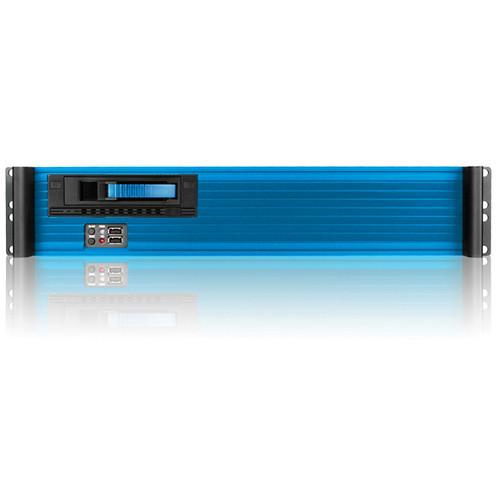

User Manual for iStarUSA D213MATX-M1BL Kit with 2U Rackmount microATX Chassis & Bay Audio 6.0 Gb s Mobile Rack Click to enlarge the picture
Contents of the user manual for the iStarUSA D213MATX-M1BL Kit with 2U Rackmount
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
|
User manual for the iStarUSA D213MATX-M1BL Kit with 2U Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description The iStarUSA D213MATX-M1BL Kit includes a D-213-MATX 2U Compact Rackmount microATX Chassis and a T-7M1-SATA-BLUE 5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack.
The D-213-MATX 2U Compact Rackmount microATX Chassis from the D Value Series is a reliable and stable 2U-high 15" (38.1cm) deep industrial computer chassis. The full size I/O supports all microATX motherboards with Dual / Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" (38.1cm) in depth and is equipped with two intake 80mm cooling fans (sold separately) at front for air ventilation. In addition, it supports a standard ATX PS2 power supply (sold separately) to meet regular server system applications.
The blue T-7M1-SATA-BLUE 5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack is an aluminum hot-swappable HDD cage. It is compact and flexible in functionality and has a high performance SAS/SATA interface. Its blower cooling fan (sold separately) provides extra cooling in unfavorable operating conditions. Its LED indicator enables monitoring of power and hard drive activities. - D-213-MATX 2U Compact Rackmount microATX Chassis (Black) The black iStarUSA D-213-MATX Compact Rackmount microATX Chassis is a reliable and stable 2U-high and 15" deep industrial computer chassis. The full size I/O supports all microATX motherboards (sold separately) with dual-core or quad-Core processors and the backplane supports 4 low-profile, add-on cards. This chassis supports two intake 3.1" (80mm) cooling fans (sold separately) that can be installed in the front for proper air ventilation. In addition, the D-213-MATX chassis supports a standard ATX PS2 power supply (sold separately) to help meet regular server system applications. Note: Sliding rails (TC-RAIL-20; sold separately) will only work with the new version of this chassis with 4 mounting holes on the sides.
- Industrial chassis with 15" (381mm) depth
- Two USB 2.0 front access ports
- Supports ATX PS2 power supply (sold separately)
- Supports 4 low-profile, add-on cards (sold separately)
UPC: 846813002530 - T-7M1-SATA 1x 5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack (Blue) The T-7M1-SATA 1x 5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack (Blue) by iStarUSA is an aluminum hot-swappable HDD cage. The T-7M1-SATA is compact, flexible in functionality and has a high performance SAS/SATA interface. The T-7M1-SATA's additional blower cooling fan provides extra cooling in unfavorable operating conditions. Its LED indicator enables monitoring of power and hard drive activities.
- Power/drive activity LEDs
- Point to point, free from master/slave setting
- Best air ventilation with 1x 80 mm HDD blower fan
- Cableless connection, supports plug & play, hot-swappable
- Aluminum body for best cooling
- High performance transfer rate up to 6.0 Gb/s
- Support SAS I/II & SATA I/II/III HDD
UPC: 846813010757 In the Box Bundle Items D-213-MATX 2U Compact Rackmount microATX Chassis (Black) ueccrqstdxxbctrztzettvct T-7M1-SATA 1x 5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack (Blue) ueccrqstdxxbctrztzettvct Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA D213MATX-M1BL Kit with 2U Rackmount microATX Chassis & Bay Audio 6.0 Gb s Mobile Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - D-213-MATX 2U Compact Rackmount microATX Chassis (Black)
| | | Motherboard Support | Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 3.5"
1 x 5.25" | | Internal Drive Bays | 2 x 3.5" | | Expansion Slots | 4 x Low-Profile | | Connections | 2 x USB Type-A (USB 2.0) | | Compatible Power Supply | ATX | | | | Optional Cooling | 2 x 80 mm | | | | Rack Form Factor | 2RU | | Material | Aluminum, Steel | | Dimensions (W x H x D) | 19.0 x 3.5 x 15.3" / 482.6 x 88.9 x 389.9 mm | | Weight | 14 lb / 6.4 kg | | | | Box Dimensions (LxWxH) | 22.0 x 21.0 x 9.0" | - T-7M1-SATA 1x 5.25" Bay Audio SATA/SAS 6.0 Gb/s Mobile Rack (Blue)
| HDD Interface | SAS / SATA | | Hotswap | 1x 3.5" HDD | | Standard Drive Bays | 1x 5.25" drive | | Hotswap HDD Type | 3.5" SAS I/II & SATA | | Indicators | Power & HDD activity | | Color | Blue | | Material of Handle | Aluminum | | Material of Main Chassis | Aluminum design | | RoHS Compliance Version | Yes | | Dimensions (HxWxD) | 1.65 x 5.75 x 7.32" (41.9 x 146.1 x 185.9 mm) | | Weight | 3 lb (1.36 kg) | | | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.0" |
