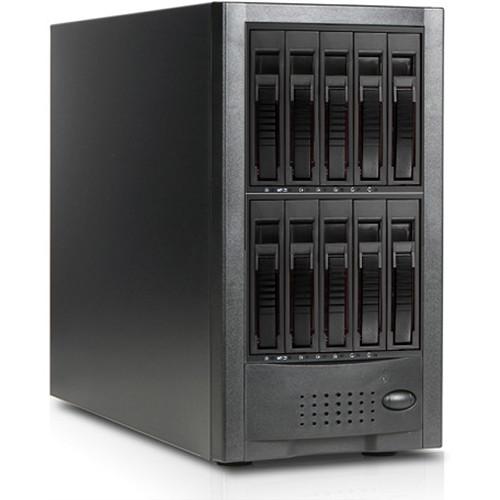

Product description The DAGE1040-PM 10-Bay eSATA JBOD Enclosure from iStarUSA is an external 10-bay array that supports JBOD, which allows each drive bay to be independently utilized. Additionally, if your host system has a RAID controller card, then the DAGE1040-PM can be configured as a RAID array. This enclosure connects to your system using its two eSATA ports, each of which support port multiplication, meaning that multiple storage devices may be connected to a single port. The DAGE1040-PM's ten drive bays natively support 3.5" and 2.5" SATA III 6 Gb/s, SATA II 3 Gb/s, SATA 1.5 Gb/s, SAS-2 6 Gb/s, and SAS-1 3 Gb/s drives. However, bear in mind that while this array will recognize the SAS interface, it's backplane is eSATA, so SAS features will not be supported.

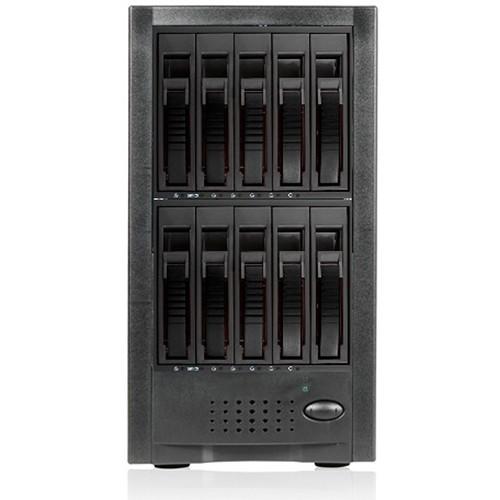

While this array does have ten drive bays, they are split up into two hotswap modules, each of which is equipped with five drive bays, with access to each drive bay being controlled using a black handle. All drive bays also feature hotswap support, while power and drive activity LEDs let users know that things are running smoothly, and system cooling is provided by two 80mm fans. iStarUSA's DAGE1040-PM operates using an integrated 300W power supply and an included power cord. General Features - LED indicators for power and activity on each hard drive
- 2 x 80mm cooling fans for ventilation

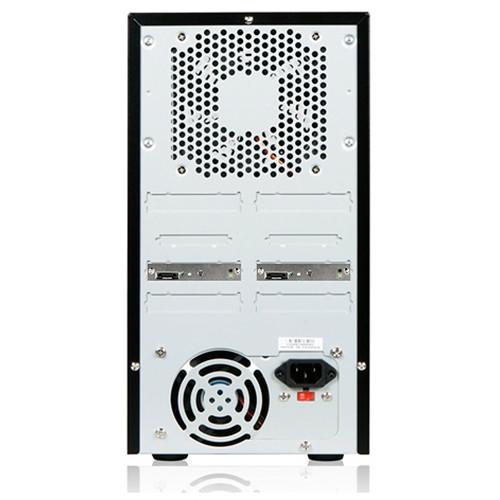

- 2 x eSATA connectors with port multiplier support
- Supports 10 x 3.5"/2.5" SATA III 6 Gb/s hard drives
- Hot-swappable both on host and device
UPC: 846813024105 In the Box iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure (Black) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA DAGE1040BK-PM Specs | | | Number of Bays | 10 x 2.5"/3.5" | | Connections | 2 x eSATA | | Compatible Drive Interface | SAS, SAS-2, SATA, SATA II, SATA III | | Form Factor | Desktop | | Hot-Swap Support | Yes | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 300 W | | | | Material of Construction | Steel | | Cooling | 2 x 80 mm Fans | | RAID Controller | None | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 8.0 x 14.0 x 18.0" / 203.2 x 355.6 x 457.2 mm | | | | Package Weight | 22.8 lb | | Box Dimensions (LxWxH) | 19.6 x 18.8 x 11.6" |
