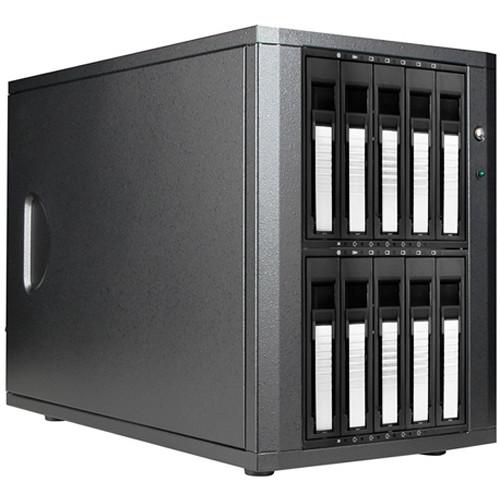

User Manual for iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure Click to enlarge the picture
Contents of the user manual for the iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure
- Product category: Hard Drive Enclosures & Docks iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Hard Drive Enclosures & Docks
|
User manual for the iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description The DAGE1040-PM 10-Bay eSATA JBOD Enclosure from iStarUSA is an external 10-bay array that supports JBOD, which allows each drive bay to be independently utilized. Additionally, if your host system has a RAID controller card, then the DAGE1040-PM can be configured as a RAID array. This enclosure connects to your system using its two eSATA ports, each of which support port multiplication, meaning that multiple storage devices may be connected to a single port. The DAGE1040-PM's ten drive bays natively support 3.5" and 2.5" SATA III 6 Gb/s, SATA II 3 Gb/s, SATA 1.5 Gb/s, SAS-2 6 Gb/s, and SAS-1 3 Gb/s drives. However, bear in mind that while this array will recognize the SAS interface, it's backplane is eSATA, so SAS features will not be supported.
While this array does have ten drive bays, they are split up into two hotswap modules, each of which is equipped with five drive bays, with access to each drive bay being controlled using a silver handle. All drive bays also feature hotswap support, while power and drive activity LEDs let users know that things are running smoothly, and system cooling is provided by two 80mm fans. iStarUSA's DAGE1040-PM operates using an integrated 300W power supply and an included power cord. General Features - LED indicators for power and activity on each hard drive
- 2 x 80mm cooling fans for ventilation
- 2 x eSATA connectors with port multiplier support
- Supports 10 x 3.5"/2.5" SATA III 6 Gb/s hard drives
- Hot-swappable both on host and device
UPC: 846813024129 In the Box iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure (Silver) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA DAGE1040-PM 10-Bay eSATA JBOD Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA DAGE1040SL-PM Specs | | | Number of Bays | 10 x 2.5"/3.5" | | Connections | 2 x eSATA | | Compatible Drive Interface | SAS, SAS-2, SATA, SATA II, SATA III | | Form Factor | Desktop | | Hot-Swap Support | Yes | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 300 W | | | | Material of Construction | Steel | | Cooling | 2 x 80 mm Fans | | RAID Controller | None | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 8.0 x 14.0 x 18.0" / 203.2 x 355.6 x 457.2 mm |
