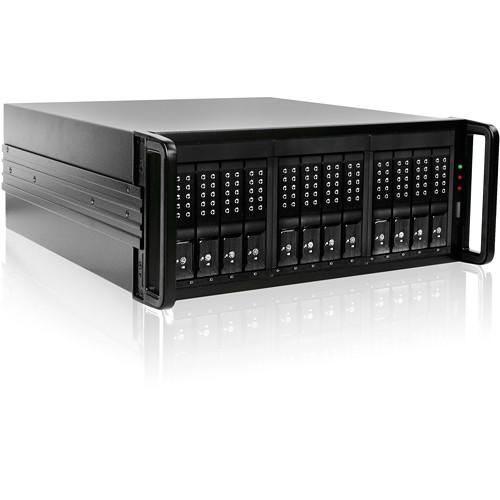

User Manual for iStarUSA DAGE412U40DE-3MS 12-Bay Mini-SAS RAID Enclosure Click to enlarge the picture
Contents of the user manual for the iStarUSA DAGE412U40DE-3MS 12-Bay Mini-SAS RAID Enclosure
- Product category: Hard Drive Enclosures & Docks iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Hard Drive Enclosures & Docks
|
User manual for the iStarUSA DAGE412U40DE-3MS 12-Bay Mini-SAS RAID Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description Built with a 4 RU form factor and a 1.2mm SECC zinc-coated steel chassis, the DAGE412U40DE-3MS 12-Bay Mini-SAS RAID Enclosure from iStarUSA is an external 12-bay RAID enclosure that supports software-configured RAID 0, 1, 5, 6, and 10, each of which offers speed, performance, or a combination of both. For those who do not need the benefits of RAID, this enclosure also supports JBOD. It connects to your host system using its three Mini-SAS (SFF-8088) ports, and its twelve drive bays natively support 3.5" SATA III 6 Gb/s, SATA II 3 Gb/s, SATA 1.5 Gb/s, SAS-2 6 Gb/s, and SAS-1 3 Gb/s drives. Each drive is mounted within its own drive tray, each of which is equipped with a black hard drive handle, allowing users to add or remove drives thanks to integrated hotswap support. Power and drive activity LEDs let users know that things are running smoothly, system cooling is provided by a single 120mm ball bearing fan, and iStarUSA's DAGE412U40DE-3MS operates using an integrated 500W power supply. Included with this RAID enclosure is a power cord.
Please be aware that the available RAID levels are configured by a controller card in your host system. General Features - Supports 12 x 3.5" SAS/SATA 6 Gb/s hard drives
- LED indicators for power and activity on each hard drive
- 120mm cooling fan for ventilation
- 3 x Mini-SAS (SFF-8088) connectors
- Hot-swappable both on host and device
- Supports up to 6 Gb/s data transfer speed per port/channel
- Total bandwidth up to 24 Gb/s per connector
UPC: 846813018647 In the Box iStarUSA DAGE412U40DE-3MS 12-Bay Mini-SAS RAID Enclosure (Black) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA DAGE412U40DE-3MS 12-Bay Mini-SAS RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA DAGE412U40DEBK-3MS Specs | | | Number of Bays | 12 x 3.5" | | Connections | 3 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SAS, SAS-2, SATA, SATA II, SATA III | | Form Factor | Rackmount (4 RU) | | RAID Modes | RAID 0, 1, 5, 6, 10, JBOD | | Hot-Swap Support | Yes | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 500 W | | | | Material of Construction | Steel | | Cooling | 1 x 120 mm Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 19.0 x 7.0 x 20.0" / 482.6 x 177.8 x 508.0 mm |
