User Manual for iStarUSA E3M16 3U 16-Bay Storage Server Rackmount Chassis Click to enlarge the picture
Contents of the user manual for the iStarUSA E3M16 3U 16-Bay Storage Server
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
|
User manual for the iStarUSA E3M16 3U 16-Bay Storage Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|

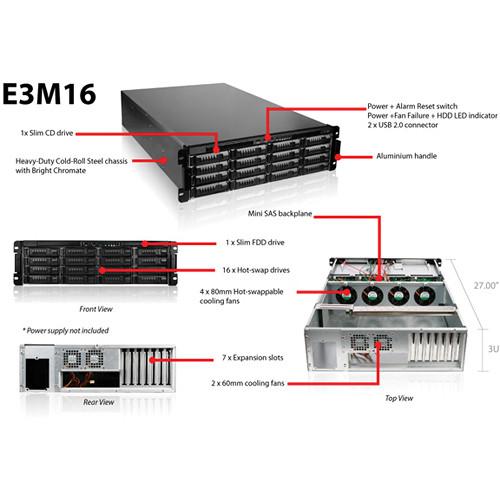

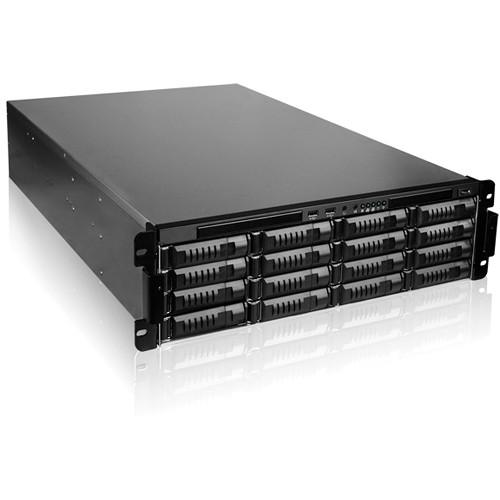

Product description The E3M16 3U 16-Bay Storage Server Rackmount Chassis from iStarUSA is a high performance 3U chassis compatible with a full size E-ATX motherboard, as well as ATX and micro-ATX boards. With four 80mm fans, the E3M16 features a fan failure light located at the front of the chassis, which gives you indication when any of the four fans fail to operate so the system can avoid overheating.
The front panel houses the power, reset and mute switches. The E3M16 has mini-SAS backplane to support the latest SAS and SATA hard drives. The front features one 2.5" drive bay, sixteen 3.5" hotswap drive bays, one slim optical 5.25" drive bay and one slim 3.5" FDD drive bay. - Fiber optical drive tray status indicator
- Advance thermal cooling design optimizes airflow
- 2x 60 mm and 4x hot-swappable 80 mm cooling fans with status monitor
- Supports EATX, ATX and micro-ATX boards
- Mini -SAS (SFF8087) backplane
- Front USB 2.0 x2 connectors
- Power + fan failure + HDD LED indicator
- Power on / off, reset, mute switches

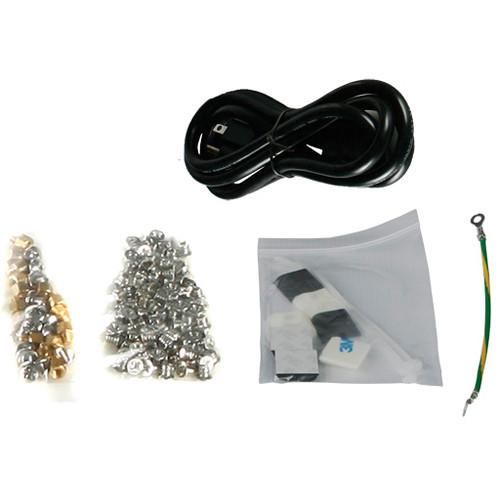

UPC: 846813008129 In the Box iStarUSA E3M16 3U 16-Bay Storage Server Rackmount Chassis Ground Cable Power Cord Stand 2 x Screws Kit Limited 1-Year Warranty Note: *Warranty available only in USA & Canada Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA E3M16 3U 16-Bay Storage Server Rackmount Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

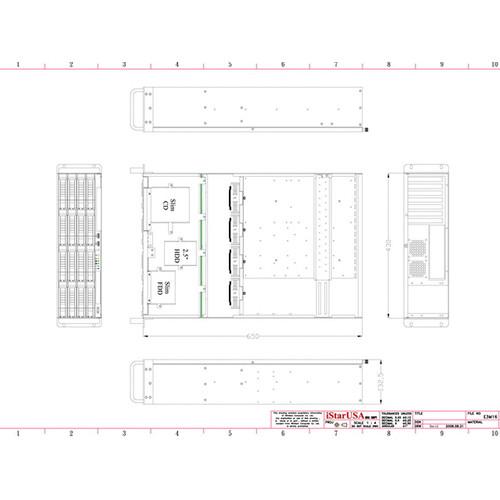

Technical parametersiStarUSA E3M16 Specs | Motherboard Support | ATX, E-ATX, Micro-ATX | External Drive Bays | 1 x 2.5" 1 x 5.25" 1 x Slim Optical Drive 16 x 3.5" | Internal Drive Bays | 1 x 2.5" 1 x 3.5" | Expansion Slots | 7 x Low-Profile | Backplanes | Mini-SAS to SATA 6 Gb/s | Connections | 2 x USB Type-A (USB 2.0) | | Included Cooling | 2 x 60 mm 4 x 80 mm | | Certifications | RoHS, as per Manufacturer | | Rack Form Factor | 3RU | Material | Steel | Dimensions (W x H x D) | 19.0 x 5.2 x 27.0" / 482.6 x 133.4 x 685.8 mm | | Package Weight | 42.0 lb | Box Dimensions (LxWxH) | 31.0 x 22.0 x 11.0" |
