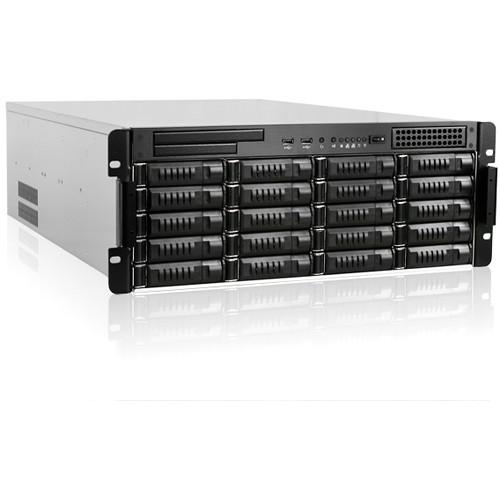

User Manual for iStarUSA E4M20-120P8G E Storage Series E4M20 4 RU 20-Bay Server Rackmount Chassis with 1200W Power Supply Click to enlarge the picture
Contents of the user manual for the iStarUSA E4M20-120P8G E Storage Series E4M20
- Product category: Server Rackmount Chassis iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Rackmount Chassis
 |
User manual for the iStarUSA E4M20-120P8G E Storage Series E4M20 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|

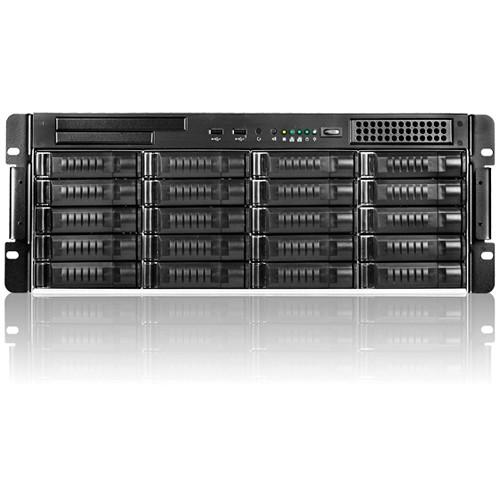

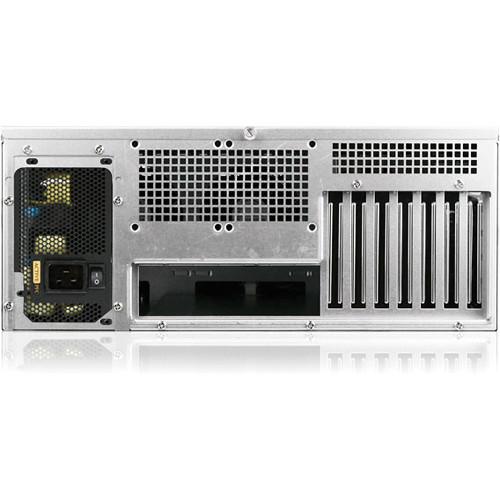

Product description The E4M20-120P8G E Storage Series E4M20 4 RU 20-Bay Server Rackmount Chassis with 1200W Power Supply from iStarUSA is a rackmount storage server compatible with both SAS and SATA technology that comes with a 1200W power supply. - E Storage Series E4M20 4U 20-Bay Server Rackmount Chassis The E Storage Series E4M20 4U 20-Bay Server Rackmount Chassis from iStarUSA has a stylish appearance as well as good functionality and flexibility. The mini SAS backplane supports both latest SAS and SATA hard drives and also provides redundant power supply to ensure total up time of mission critical server applications.
- Fiber optical drive tray status indicator
- Advance thermal cooling design optimizes airflow
- 3 x cooling fans with status monitor
- Supports EATX motherboard
- Front access USB connector
- Power, fan failure, HDD LED indicator
- Power / alarm reset switch
- Material of Handle: Aluminum
- Material of Main Chassis: Heavy-duty SGCC cold-rolled steel
UPC: 846813008198 - TC-1200PD1 1200W PS2 ATX Switching Power Supply The iStarUSA TC-1200PD1 1200W PS2 ATX Switching Power Supply is a high performance switching power supply that supports the latest motherboard connectors of 20, 24, 8, and 4 pins. It comes with four PCI-Express connectors to enable SLI and Cross-Fire application and six SATA power connectors for the latest storage interface.
The TC-1200PD1 gets a clean look and better airflow with its modular interface. Ideal for servers and high-end gaming workstations, it has an 80plus high efficiency power supply that is cost effective. - Complies with ATX 12V 2.0 version
- One 6-pin and three 8-pin PCIe support
- Ten SATA, eight MOLEX and two floppy device power connections
- 4+4-pin and 8-pin EPS power support
- 20+4-pin ATX power support
- 120mm low noise ball bearing fan with honeycomb cut providing ultimate quiet
- High reliability: MTBF>120,000 hours
- Industrial grade components (capacitor, transformer and etc)
- Modular interface for a clean look and better airflow
- Independent voltage circuit
In the Box Bundle Items E Storage Series E4M20 4U 20-Bay Server Rackmount Chassis cyybfeyrxcyurzsaxtzfttbxxfczrs TC-1200PD1 1200W PS2 ATX Switching Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA E4M20-120P8G E Storage Series E4M20 4 RU 20-Bay Server Rackmount Chassis with 1200W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - E Storage Series E4M20 4U 20-Bay Server Rackmount Chassis
| | | Motherboard Support | ATX, E-ATX, Micro-ATX | | External Drive Bays | 1 x 3.5"
1 x Slim Optical Drive | | Internal Drive Bays | 1 x 3.5" | | Expansion Slots | 7 x Low-Profile | | Compatible Power Supply | ATX | | | | Included Cooling | 3 x 120 mm | | | | Rack Form Factor | 4RU | | Dimensions (W x H x D) | 19.0 x 7.0 x 27.0" / 482.6 x 177.8 x 685.8 mm | | | | Box Dimensions (LxWxH) | 30.5 x 22.0 x 12.0" | - TC-1200PD1 1200W PS2 ATX Switching Power Supply
| Form Factor | ATX | | RoHS Compliance Version | Yes | | Wattage | 1200 W | | AC Input | 100 to 240 VAC Full Range | | Efficiency | 80% | | Connector Type | Main Connector: 20+4 pin 4pin 12V: 1 4+4pin 12V: 1 8pin EPS 12V: 1 Molex: 8 SATA: 10 Floppy: 2 6-pin PCIe: 1 8-pin PCIe: 3 | | CrossFire | CrossFire Ready | | Fans | 1 | | MTBF | >120,000 hours | | Dimensions | 5.91 x 3.39 x 7.87" (150.1 x 86.1 x 199.9 mm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 6.0" |
